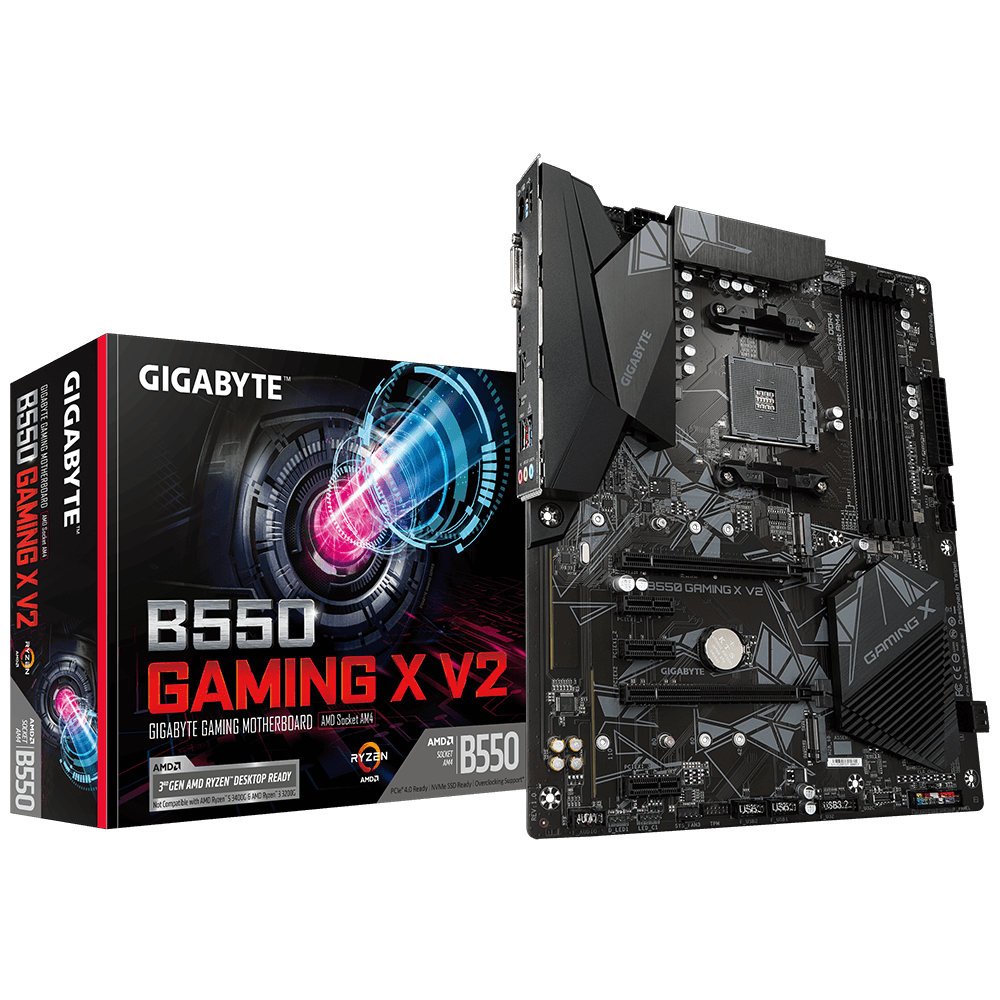

Motherboard GIGABYTE B550 GAMING X Socket AM4, 4 x DDR4, RGB Fusion, V2 (rev. 1.0)
Ref. number: GA-MB-B550-GAMING-X-V2
Price: 229.99 BGN / €117.59
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | B550 GAMING X V2 |
| Barcode | 4719331810702 |
| CPU Socket |
AM4
|
| Chipset |
AMD B550
|
| CPU supports |
AMD Socket AM4, support for: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
4733(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC887
|
| Integrated LAN |
Intel GbE LAN chips (10/100/1000 Mbit)
|
| PCI-E x16 |
2 x PCIe 4.0/3.0 x16
|
| PCI-E x1 |
2
|
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24-pin;1 x 8-pin
|
| Connectors | |
| Other |
Description
Motherboard GIGABYTE B550 GAMING X Socket AM4, 4 x DDR4, RGB Fusion, V2 (rev. 1.0)
- Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- RGB FUSION 2.0 support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
