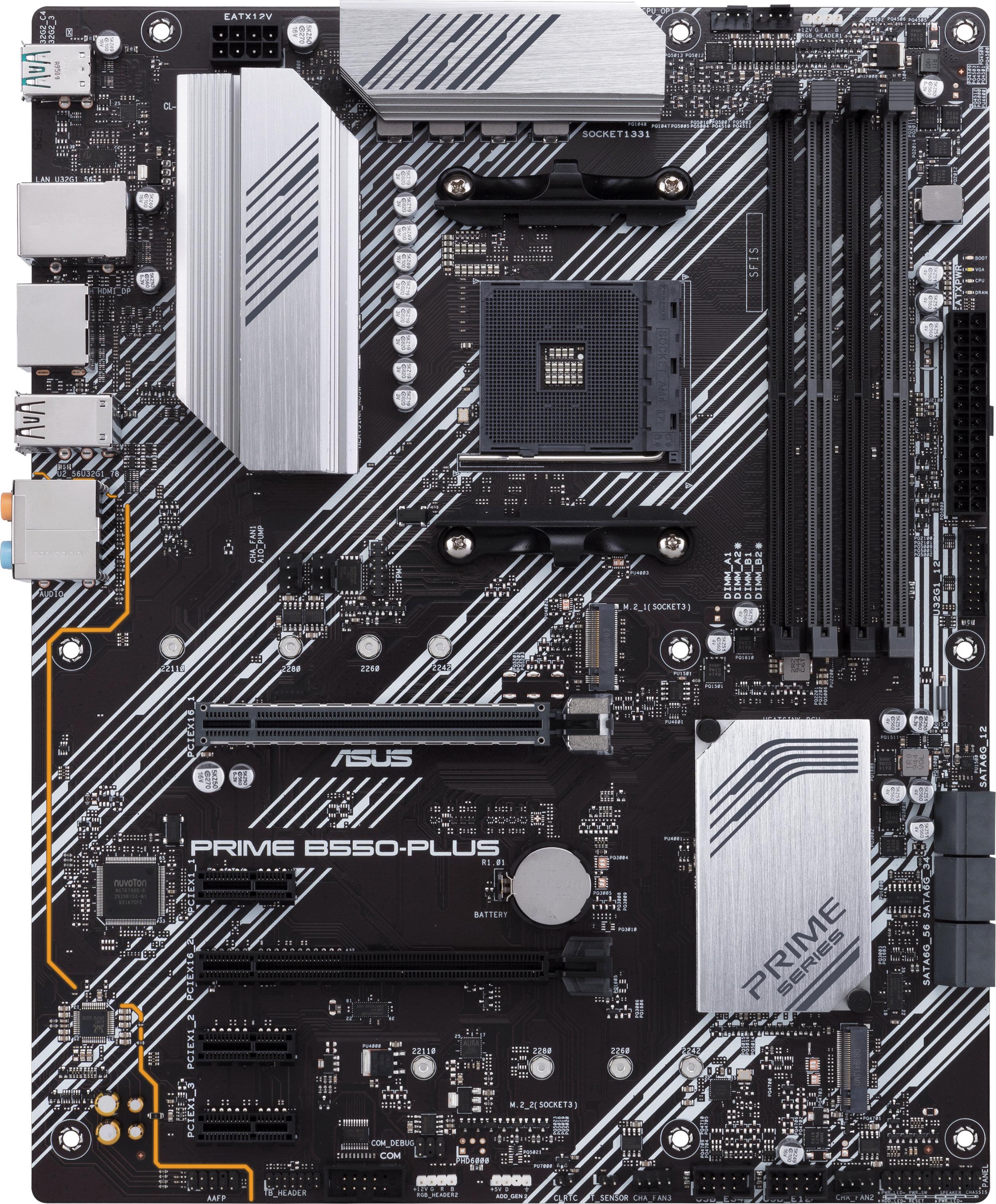

Motherboard ASUS PRIME B550-PLUS, socket AM4

Ref. number: ASUS-MB-PRIME-B550-PLUS
Price: 213.14 BGN / €108.98
Specifications
Manufacturer ASUS
Warranty 36 months
Product code 90MB14U0-M0EAY0
Barcode 4718017782340
CPU Socket
AM4
Chipset
AMD B550
CPU supports
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Memory Standard
DDR4
Maximum Memory Supported
128 GB
Number of Memory Slots
4
Frequency Memory
4600(OC) MHz
Support Dualchannel
Yes
Integrated Audio
Realtek ALC887
Integrated LAN
Realtek RTL8111H chip (10/100/1000 Mbit) + ASUS Lan Guard
Integrated Wi-Fi
PCI-E x16
1 x PCIe 4.0/3.0 x16
1 x PCIe 3.0/2.0 x16
PCI Express x4
PCI-E x1
3
PCI-E slots
Interface Serial ATA
6 x SATA3 6.0 Gb/s
M2 socket
1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 PCIE 3.0 x4 and SATA modes
1 x M.2 Socket 3 with M Key type 2242/2260/2280/22110 SATA and PCIe 4.0 x4 SSD support)
Raid support
0,1,10
Power Connector
1 x 24-pin;1 x 8-pin
Connectors
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
5 x Audio jacks
USB Ports
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen2
2 x USB 2.0
Dimension
Other

Description

Motherboard ASUS PRIME B550-PLUS socket AM4, 4xDDR4, Aura Sync, PCIe 4.0, Dual M.2

PRIME

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
  • Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
  • Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
