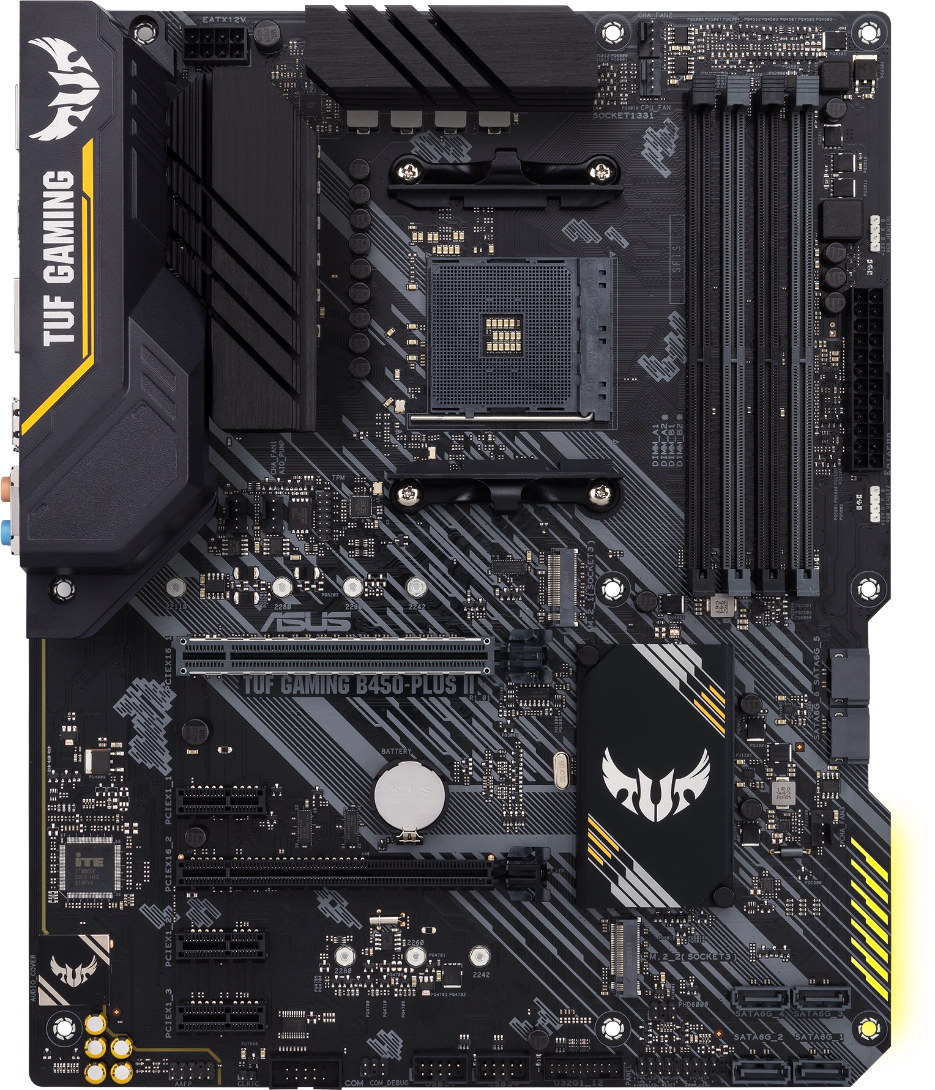

Motherboard ASUS TUF GAMING B450-PLUS II, AMD B450 (AM4)
Ref. number: ASUS-MB-TUF-B450-PLUS-II
Price: € 89.47 / 174.99 лв.
Specifications
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1650-M0EAY0 |
| Barcode | 4718017957489 |
| CPU Socket |
AM4
|
| Chipset |
AMD B450
|
| CPU supports |
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen
AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
4400(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
|
| Integrated LAN |
TUF LANGuard
|
| Integrated Wi-Fi | |
| PCI-E x16 |
1
|
| PCI Express x4 |
1
|
| PCI-E x1 |
3
|
| PCI-E slots | |
| Interface Serial ATA |
6 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
|
| Raid support |
0, 1, 10
|
| Power Connector |
1 x 8-pin ATX 12V Power connector
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
5 x Audio jacks
1 x BIOS Flashback Button
|
| USB Ports |
1 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1 Type-A
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
Description
Motherboard ASUS TUF GAMING B450-PLUS II, AMD B450 (AM4) ATX with dual M.2, AI Noise-Canceling Microphone, HDMI, DisplayPort, USB 3.2 Gen 2 Type-A and Type-C and Aura Sync RGB lighting support
AMD B450 (AM4) ATX gaming motherboard with dual M.2, AI Noise-Canceling Microphone, HDMI, DisplayPort, USB 3.2 Gen 2 Type-A and Type-C and Aura Sync RGB lighting support
- Comprehensive cooling: VRM heatsinks, PCH heatsink, Fan Xpert 4 core
- Next-gen connectivity: USB 3.2 Gen 2 Type-A and Type-C support
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication
- Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear
