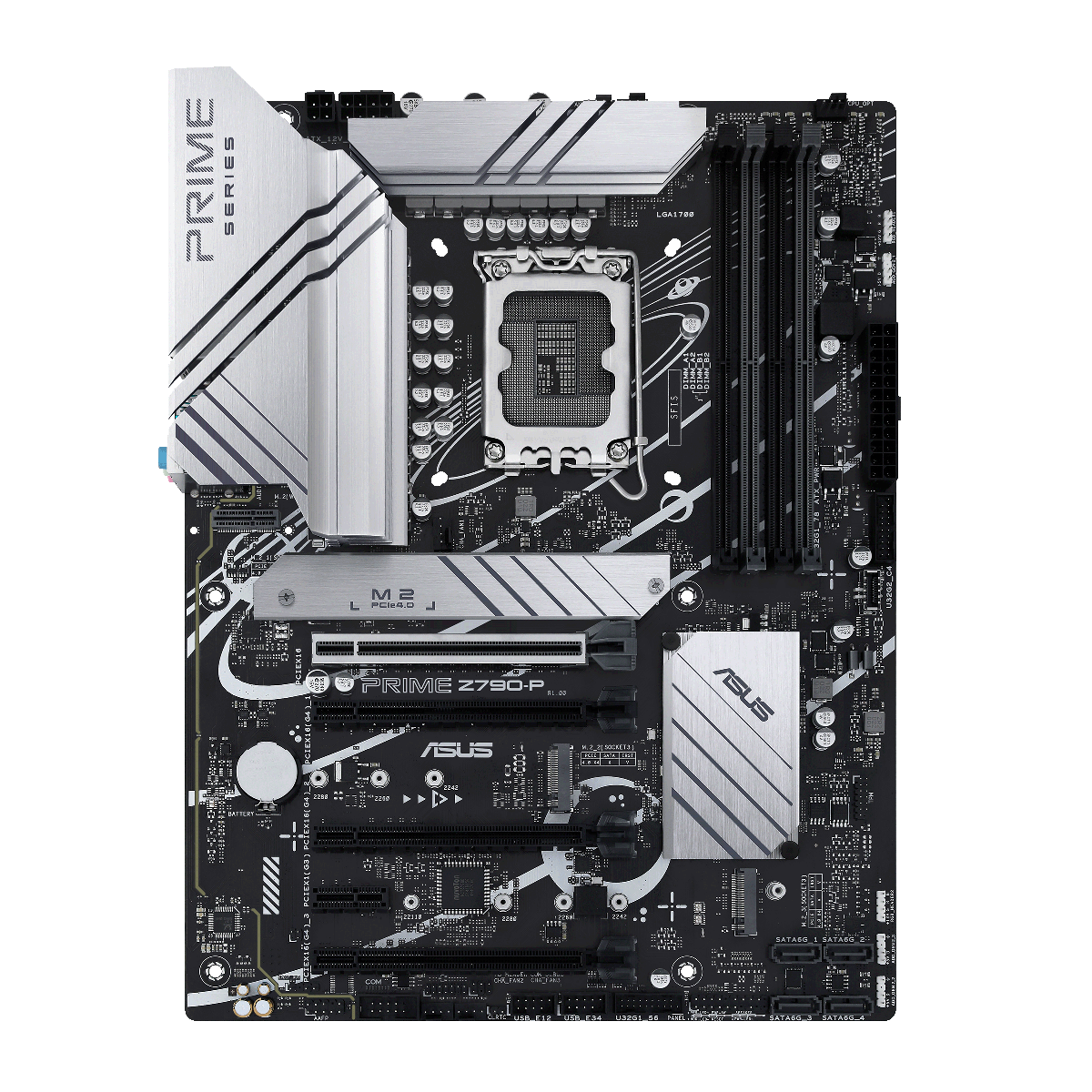

Motherboard ASUS PRIME Z790-P, LGA 1700, ATX
Ref. number: ASUS-MB-PRIME-Z790-P
Price: 347.35 BGN / €177.60
Specifications
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1CK0-M0EAY0 |
| Barcode | 4711081937449 |
| CPU Socket |
1700
|
| Chipset |
Intel Z790
|
| CPU supports |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
5333(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
|
| Integrated LAN |
ASUS LANGuard
1 x Intel® 2.5Gb Ethernet
|
| Integrated Wi-Fi | |
| PCI-E x16 |
1 x PCIe 5.0 x16
3 x PCIe 4.0 x16 slots (support x4 mode)
|
| PCI Express x4 |
1
|
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
|
| Raid support |
NVMe RAID 0/1/5
SATA RAID 0/1/5/10
|
| Power Connector |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
|
| USB Ports |
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
