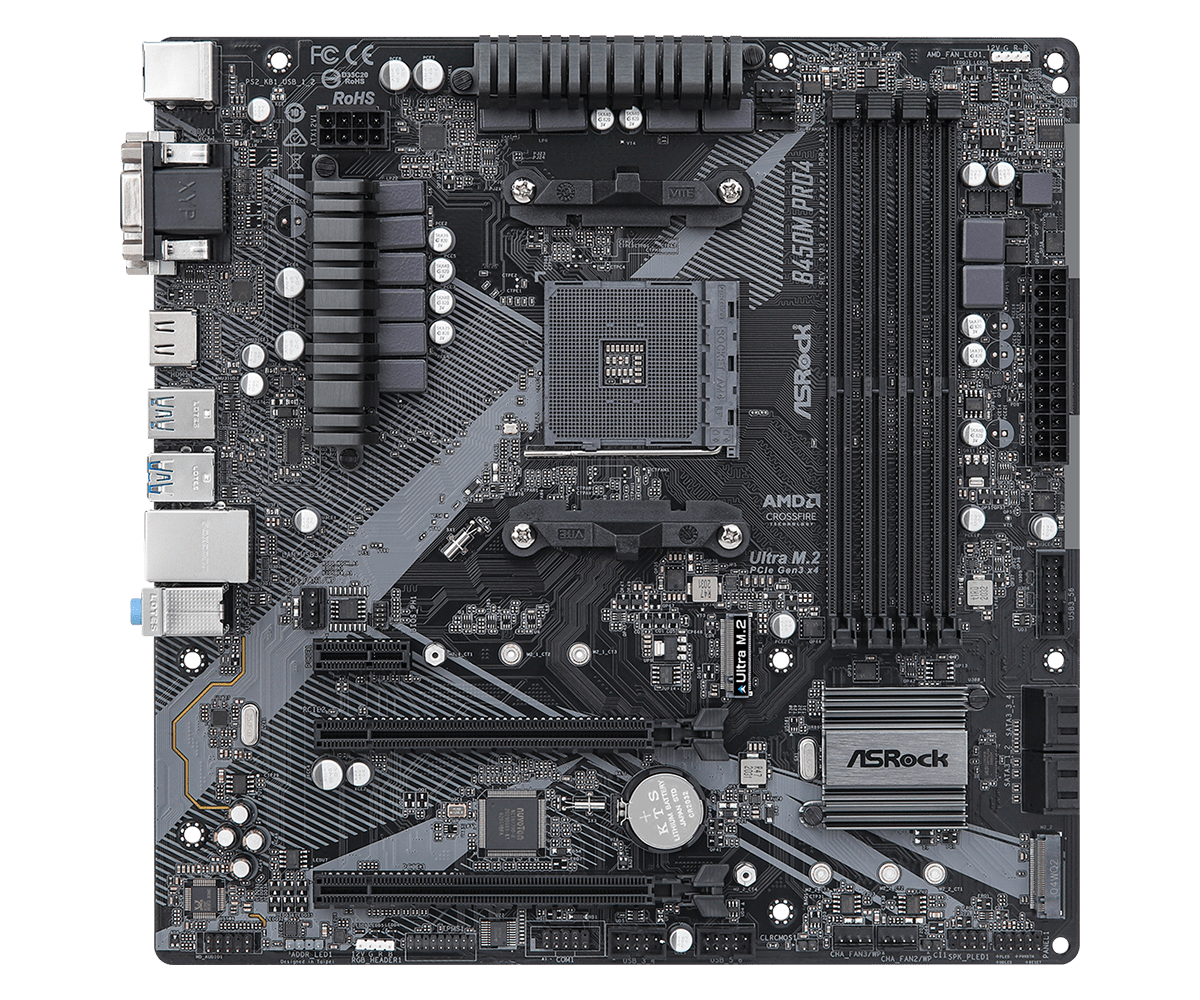

Motherboard ASROCK B450M Pro4 R2.0
Ref. number: ASR-MB-B450M-PRO4-R2
Price: 137.18 BGN / €70.14
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B450M PRO4- R2.0 |
| Barcode | 4710483932793 |
| CPU Socket |
AM4
|
| Chipset |
AMD B450
|
| CPU supports | |
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
3200 MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
Realtek RTL8111H chip (10/100/1000 Mbit)
|
| Integrated Wi-Fi | |
| PCI-E x16 |
1
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)
1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24-pin;1 x 8-pin
|
| Connectors |
1 x VGA
1 x DVI-D
1 x HDMI port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
1 x HD Audio Jacks
|
| USB Ports |
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen 1
2 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other |
Description
B450M-HDV R4.0
- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- 2 DIMMs, Supports DDR4 3200+(OC)*
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
- Graphics Output : HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)*
- 6 USB 3.1 Gen1 (2 Front, 4 Rear)
- Realtek Gigabit LAN
