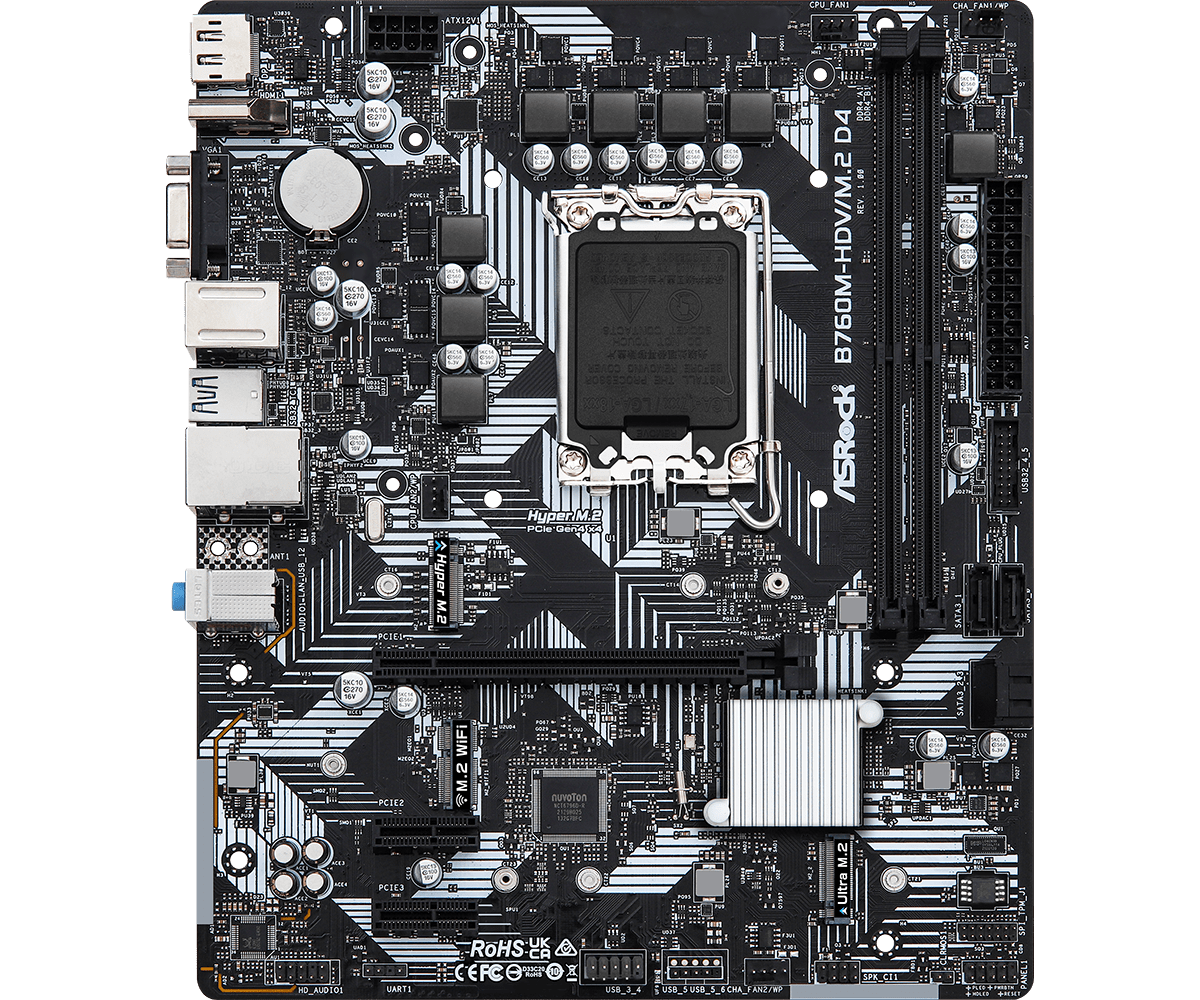

Motherboard ASRock B760M-HDV M.2, LGA1700, ATX
Ref. number: ASR-MB-B760M-HDV-M2-D4
Price: 168.25 BGN / €86.03
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B760M-HDV/M.2 D4 |
| Barcode | 4710483942020 |
| CPU Socket |
1700
|
| Chipset |
Intel B760
|
| CPU supports |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
64 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
5333(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Supports Surge Protection
Nahimic Audio
|
| Integrated LAN |
Realtek RTL8111H chip (10/100/1000 Mbit)
|
| Integrated Wi-Fi | |
| PCI-E x16 |
2
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4
1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4
|
| Raid support |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
| Power Connector |
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
|
| Connectors |
1 x VGA
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
2 x SMA antenna connectors
|
| USB Ports |
3 x USB 3.2 Gen 1
2 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 20.1 cm
|
