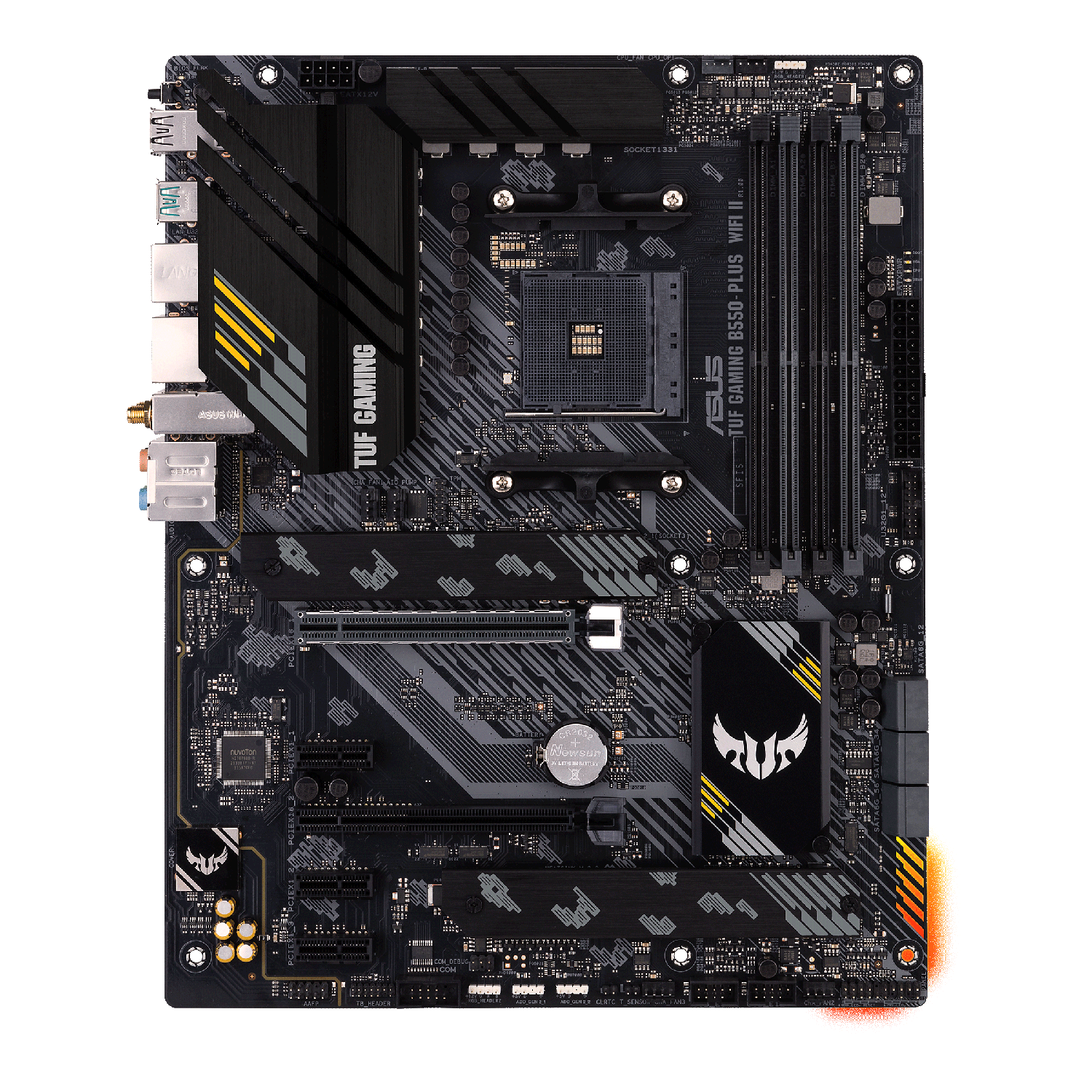

Motherboard ASUS TUF GAMING B550-PLUS WIFI II socket AM4
Ref. number: ASUS-MB-TUF-B550-PLUS-WF
Price: € 132.65 / 259.44 лв.
Specifications
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB19U0-M0EAY0 |
| Barcode | 4711081338413 |
| CPU Socket |
AM4
|
| Chipset |
AMD B550
|
| CPU supports |
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
4866(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports up to 24-Bit/192 kHz playback
|
| Integrated LAN |
10/100/1000 Mbps
TUF LANGuard
|
| Integrated Wi-Fi |
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
|
| PCI-E x16 |
1 x PCIe 4.0/3.0 x16
1 x PCIe 3.0/2.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 |
3
|
| PCI-E slots | |
| Interface Serial ATA |
6 x SATA3 6.0 Gb/s
|
| M2 socket |
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
|
| Raid support |
0,1,10
|
| Power Connector | |
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
5 x Audio jacks
|
| USB Ports |
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen2
2 x USB 2.0
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
Description
Motherboard ASUS TUF B550-PLUS GAMING socket AM4, 4xDDR4, Aura Sync, PCIe 4.0, Dual M.2, 2.5GB Lan
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support
- Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard
- AI noise-canceling microphone: provides crystal-clear in-game voice communication
- provides crystal-clear in-game voice communication
