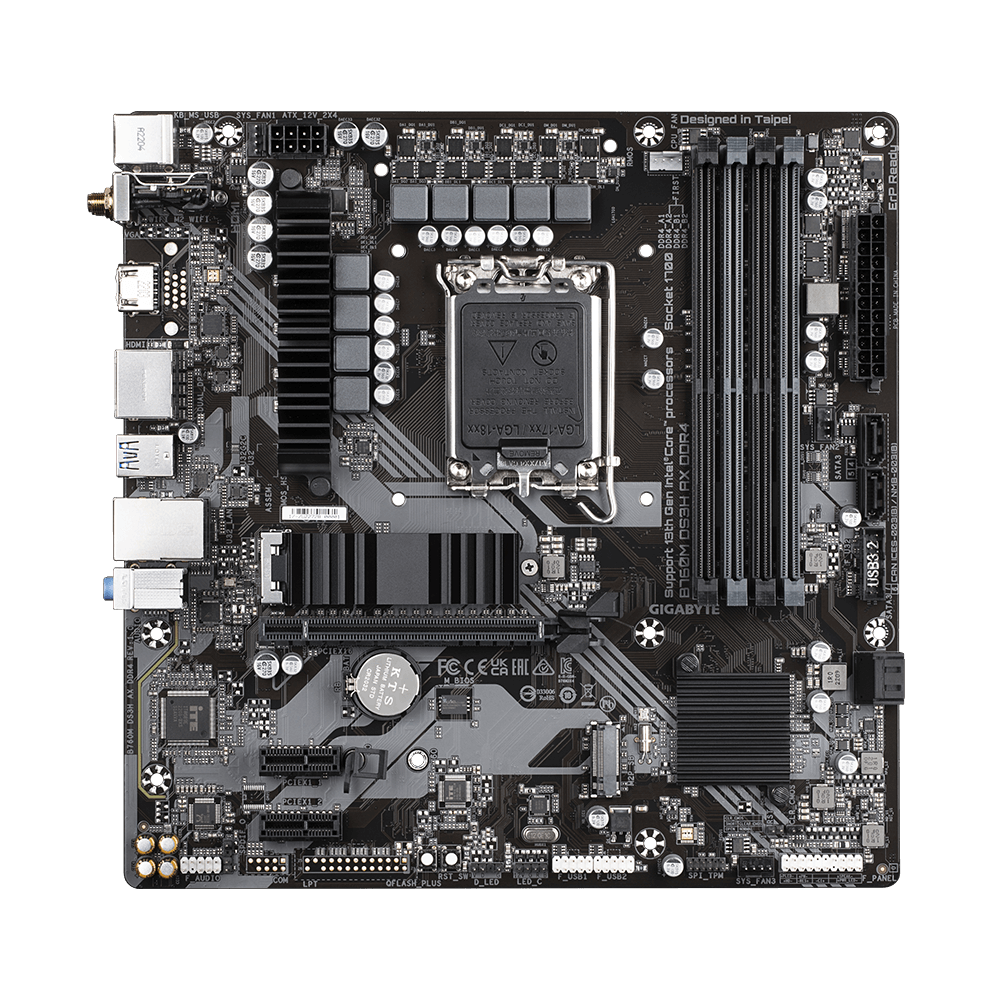

Motherboard GIGABYTE B760M DS3H AX, socket 1700
Ref. number: GA-MB-B760M-DS3H-AX-D4
Price: 236.80 BGN / €121.07
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | B760M DS3H AX DDR4 |
| Barcode | 4719331850869 |
| CPU Socket |
1700
|
| Chipset |
Intel B760
|
| CPU supports |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
5333(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
Realtek 2.5Gb Ethernet
|
| Integrated Wi-Fi |
Wi-Fi 6E
|
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
2
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin;1 x 8-pin
|
| Connectors |
1 x HDMI port
2 x Display Port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
2 x SMA antenna connectors
|
| USB Ports |
3 x USB 3.2 Gen 1
2 x USB 2.0
1 x USB Type-C
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other |
Description
- Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- M.2 Thermal Guard：To Ensure M.2 SSD Performance
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
