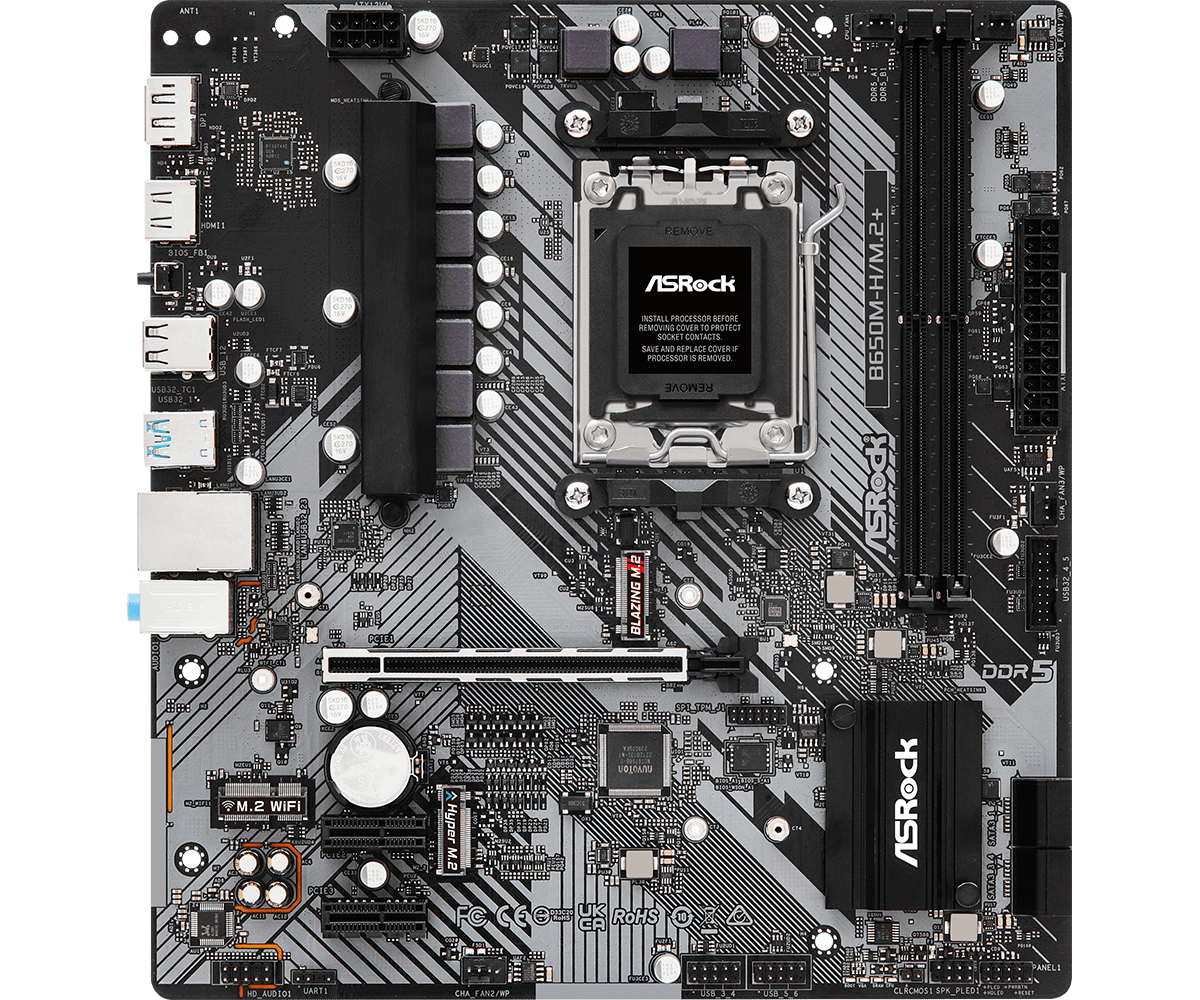

Motherboard ASROCK B650M-H/M.2+, Socket AM5, 2xDDR5
Ref. number: ASR-MB-B650M-H-M2
Price: 178.84 BGN / €91.44
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B650M-H/M.2+ |
| Barcode | 4710483943768 |
| CPU Socket |
AM5
|
| Chipset |
AMD B650
|
| CPU supports |
AMD 7000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
96 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
6400(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
Realtek RTL8111H chip (10/100/1000 Mbit)
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
2
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x HD Audio Jacks
|
| USB Ports |
1 x USB 3.2 Gen2 Type-C
3 x USB 3.2 Gen 1
2 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 22.5 cm
|
| Other |
Description
Motherboard ASROCK B650M-H/M.2+, Socket AM5, 2xDDR5
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- 6+1+1 Power Phase Dr.MOS, Supports up to 120W CPU
- 2 x DDR5 DIMMs, supports up to 6400+(OC)
- 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Integrated AMD RDNA™ 2 Graphics *
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)
- 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer, BIOS Flashback
