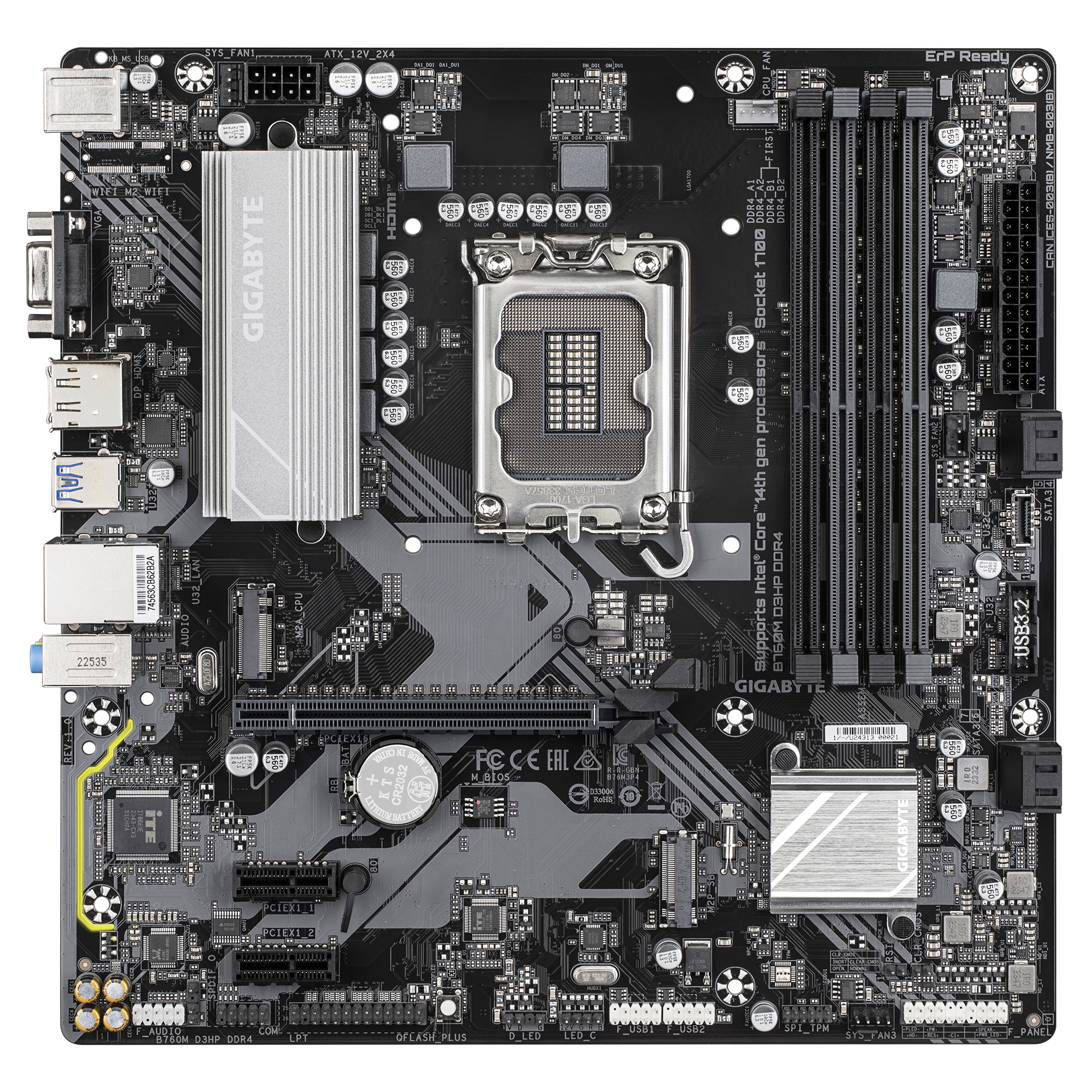

Motherboard GIGABYTE B760M D3HP DDR4 socket 1700, mATX
Ref. number: GA-MB-B760M-D3HP-D4
Price: 199.25 BGN / €101.87
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | B760M D3HP DDR4 |
| Barcode | 4719331862848 |
| CPU Socket |
1700
|
| Chipset |
Intel B760
|
| CPU supports |
12th Generation Intel
13th Generation Intel
14th Generation Intel
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
5333(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
10/100/1000 Mbps
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
2
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|
| Connectors |
1 x VGA
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
|
| USB Ports |
3 x USB 3.2 Gen 1
2 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other |
