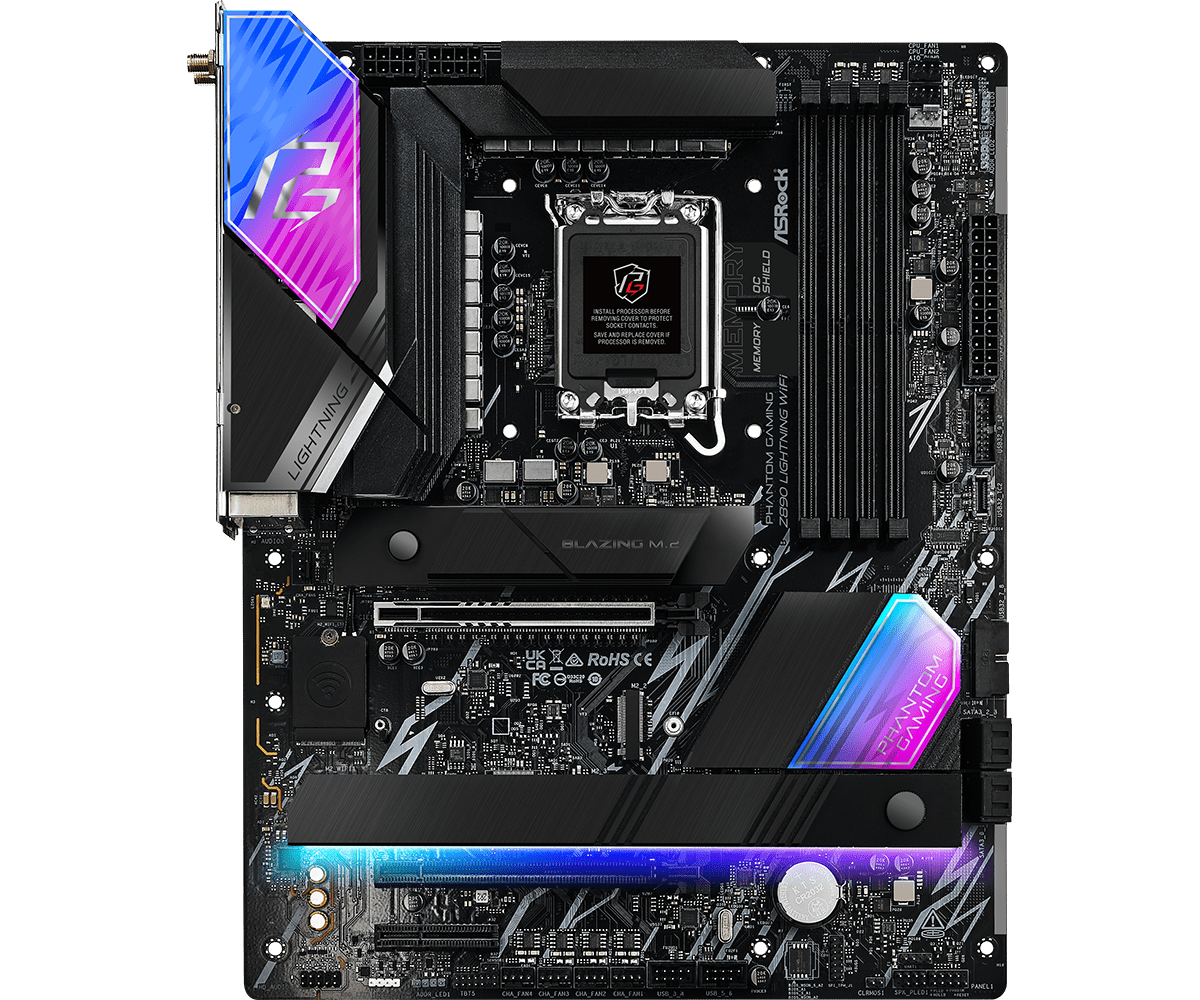

Motherboard ASRock Z890 LIGHTNING WIFI, LGA 1851
Ref. number: ASR-MB-Z890-PG-LIGHT-WIFI
Price: 591.00 BGN
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | Z890 LIGHTNING WIFI |
| Barcode | 4710483947513 |
| CPU Socket |
1851
|
| Chipset |
Intel Z890
|
| CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
9466(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
|
| Integrated LAN |
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Killer E3100G
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 5.0 x16 slot
|
| PCI Express x4 |
1
|
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s)
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x RJ-45
1 x optical S/PDIF Out connector
3 x Audio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
|
| USB Ports |
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen2
2 x USB 2.0
2 x Thunderbolt 4.0 USB Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
Description
The ASRock Z890 LIGHTNING WIFI is a high-performance motherboard, designed for LGA 1851 and optimized for gaming and productivity.
- Intel Z890 Chipset – Supports Intel Core Ultra (Series 2) processors, ensuring maximum performance.
- Robust 18+1+1 phase VRM – 80A SPS for stable power delivery and excellent overclocking capabilities.
- DDR5 Support – Up to 256GB RAM, with frequencies up to 9466+ MHz (OC) for extreme speeds.
- Advanced PCIe Slots – 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 4.0 x1, providing extensive compatibility.
- Ultra-fast storage – 1x Blazing M.2 (PCIe Gen5x4) and 4x Hyper M.2 (PCIe Gen4x4) for high-speed SSDs.
- Premium connectivity – Wi-Fi 7, Killer 2.5G LAN, Thunderbolt™ 4, USB 3.2 Gen2x2 Type-C, HDMI, and SATA III ports.
- High-quality audio – Realtek ALC1220 7.1 CH HD Audio Codec with Nahimic Audio for immersive sound experience.
This motherboard is perfect for high-end gaming, video editing, and intensive workloads.
