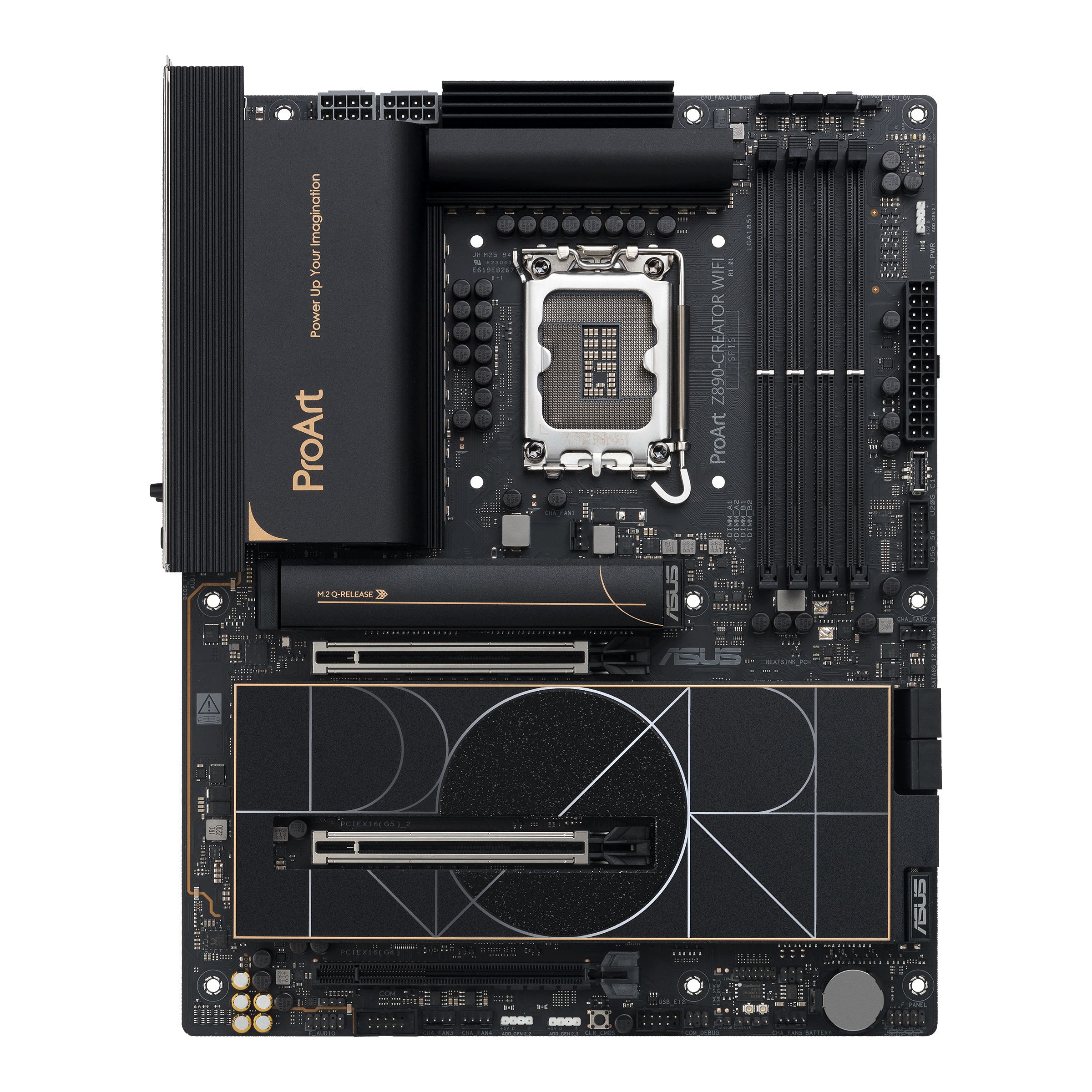

Motherboard ASUS ProArt Z890-CREATOR WIFI, LGA 1851
Ref. number: ASUS-MB-PROART-Z890-C-WF
Price: 1195.79 BGN / €611.40
Specifications
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1JD0-M0EAY0 |
| Barcode | 4711387766163 |
| CPU Socket |
1851
|
| Chipset |
Intel Z890
|
| CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
192 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
9066(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Supports up to 32-Bit/384 kHz playback
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
ASUS LANGuard
1 x Intel® 2.5Gb Ethernet
1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113)
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
2 x PCIe 5.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 | |
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
1 x Clear CMOS button
|
| USB Ports |
1 x USB Type-C 20Gbps
6 x USB 10Gbps ports Type-A
2 x Thunderbolt™ 5 USB Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
