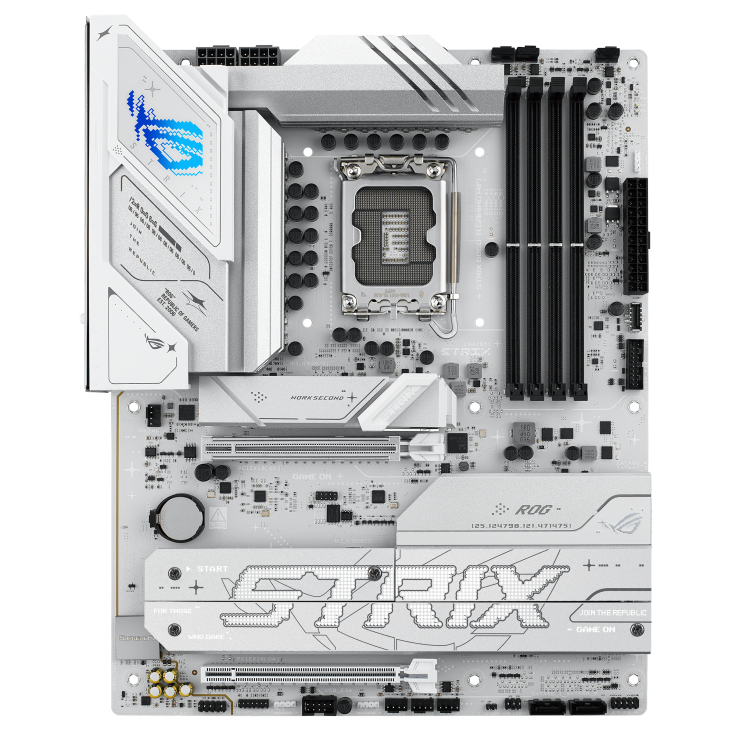

Motherboard ASUS ROG STRIX B860-A GAMING WIFI DDR5
Ref. number: ASUS-MB-ROG-B860-A-WF
Price: 655.80 BGN / €335.31
Specifications
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1JI0-M0EAY0 |
| Barcode | 4711387788424 |
| CPU Socket |
1851
|
| Chipset |
Intel B860
|
| CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
SupremeFX Shielding Technology
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Savitech SV3H712 AMP
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
ASUS LANGuard
1 x Intel® 2.5Gb Ethernet
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 4.0 x16
1 x PCIe 5.0 x16
|
| PCI Express x4 | |
| PCI-E x1 | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
|
| Raid support |
SATA RAID 0/1/5/10
|
| Power Connector |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x BIOS Flashback Button
1 x Clear CMOS button
1 x Wi-Fi Module
|
| USB Ports |
4 x USB 2.0
2 x USB 5Gbps ports Type-A
2 x USB 10Gbps ports Type-A
1 x USB 20Gbps port Type-C
1 x USB 10Gbps ports Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
