Motherboard GIGABYTE B850M AORUS ELITE WIF6E ICE socket AM5
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | B850M A ELT WF6E ICE |
| Barcode | 4719331866082 |
| CPU Socket |
AM5
|
| Chipset |
AMD B850
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8200(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC1220
Realtek 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
1 x Realtek 2.5Gb Ethernet port
|
| Integrated Wi-Fi |
Bluetooth 5.3
Realtek® Wi-Fi 6E RTL8852CE 802.11 ax
|
| PCI-E x16 |
1 x PCIe 5.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x M.2 connector supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs PCIe 5.0 x4/x2
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
|
| Connectors |
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x Q-Flash Plus button
1 x Wi-Fi Module
|
| USB Ports |
1 x USB 3.2 Gen2 Type-C
5 x USB 3.2 Gen 1
2 x USB 3.2 Gen2
4 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other |
Description

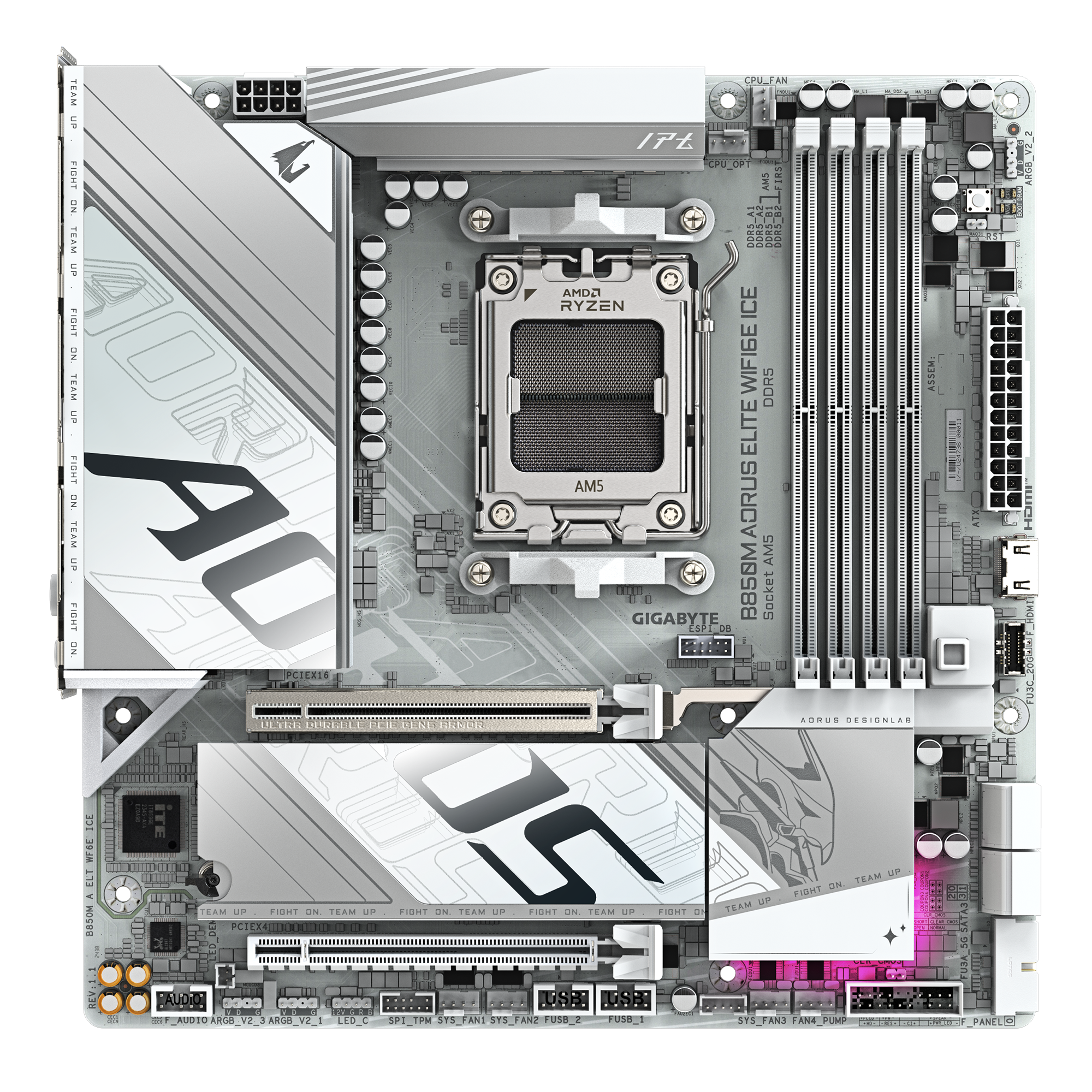

The B850M AORUS ELITE WIFI6E ICE motherboard is a high-performance option designed for gaming and advanced computing. Here are some of its standout features:
-
Processor Support: Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series processors, offering robust performance for demanding tasks.
-
Memory: Supports DDR5 memory modules with speeds up to 8200 MT/s (overclocked), and has four DIMM sockets for up to 256 GB of system memory.
-
Graphics: Integrated AMD Radeon™ Graphics with DisplayPort and HDMI support for high-resolution displays.
-
Connectivity: Equipped with Realtek® Wi-Fi 6E and Bluetooth 5.3 for fast and reliable wireless connections.
-
Expansion Slots: Includes PCIe 5.0 and PCIe 4.0 slots for graphics cards and NVMe SSDs.
-
Cooling: Advanced thermal design with durable heatsinks and M.2 Thermal Guard for efficient heat dissipation.
This motherboard is tailored for gamers and enthusiasts who want cutting-edge technology and reliability.
