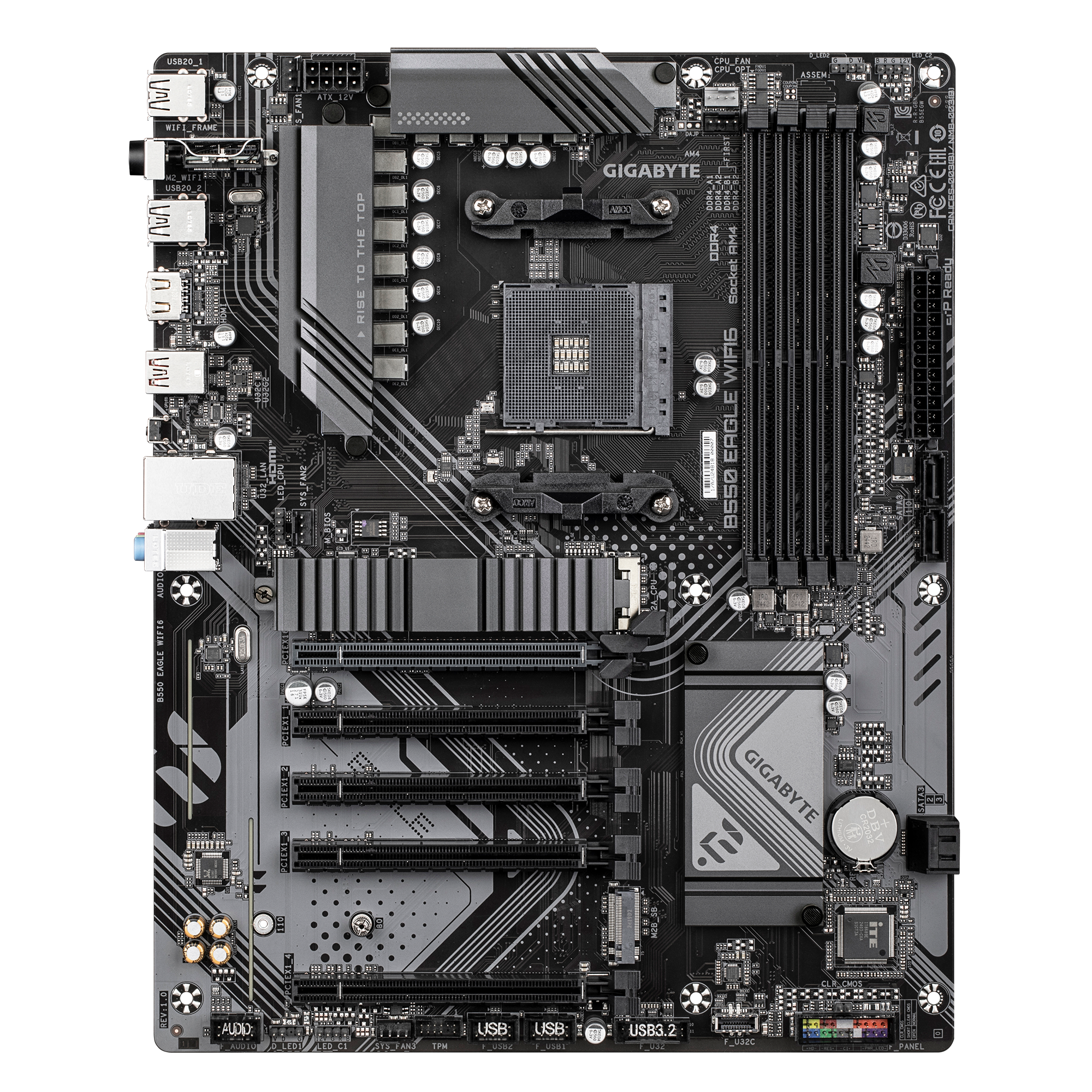

Motherboard GIGABYTE B550 EAGLE WIFI 6 AM4

Ref. number: GA-MB-B550-EAGLE-WF6
Price: 247.49 BGN
Specifications
Manufacturer GIGABYTE
Warranty 36 months
Product code B550 EAGLE WIFI6
Barcode 4719331868406
CPU Socket
AM4
Chipset
AMD B550
CPU supports
3rd Generation AMD
4th Generation AMD
5000 Series AMD Ryzen
Memory Standard
DDR4
Maximum Memory Supported
128 GB
Number of Memory Slots
4
Frequency Memory
3200 MHz
Support Dualchannel
Yes
Integrated Audio
Realtek AUDIO CODEC
Integrated LAN
Intel GbE LAN chips (10/100/1000 Mbit)
PCI-E x16
4
Interface Serial ATA
4 x SATA3 6.0 Gb/s
M2 socket
1 x 22110/2280 SSDs PCIe 4.0x4/x2 SSDs / 1 x 22110/2280 PCIe 3.0 x4/x2 SSDs
Integrated Wi-Fi
802.11ax Wi-Fi 6E
Bluetooth 5.3
Raid support
0,1,10
Power Connector
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
Connectors
1 x HDMI port
1 x RJ-45
3 x Audio jacks
1 x Q-Flash Plus button
2 x SMA antenna connectors
USB Ports
1 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen1
4 x USB 2.0
Dimension
ATX - 30.5 x 24.4 cm

Description

Key Features

  • Socket: AMD AM4 — compatible with Ryzen 3000, 4000, and 5000 series processors
  • Chipset: AMD B550 — supports PCIe 4.0 for faster SSDs and graphics cards
  • Memory: 4 DDR4 slots, up to 128 GB, with support for XMP/EXPO profiles

Connectivity

  • Wi-Fi 6 (802.11ax) — faster and more stable wireless connection
  • Bluetooth 5.3 — improved range and data transfer
  • LAN: Realtek Gigabit Ethernet

Cooling & Power

  • VRM Design: 10+3 phases — delivers stable power to the CPU
  • Thermal Armor: large heatsinks and thermal pads for effective cooling
  • Smart Fan 6 — intelligent fan control for optimized airflow

Build-Friendly Features

  • EZ-Latch PCIe — makes GPU installation and removal easier
  • Q-Flash Plus — lets you update BIOS without a CPU, RAM, or graphics card

RGB & Software

  • RGB Fusion 2.0 — customizable lighting effects
  • GIGABYTE Control Center — central management software for motherboard features
