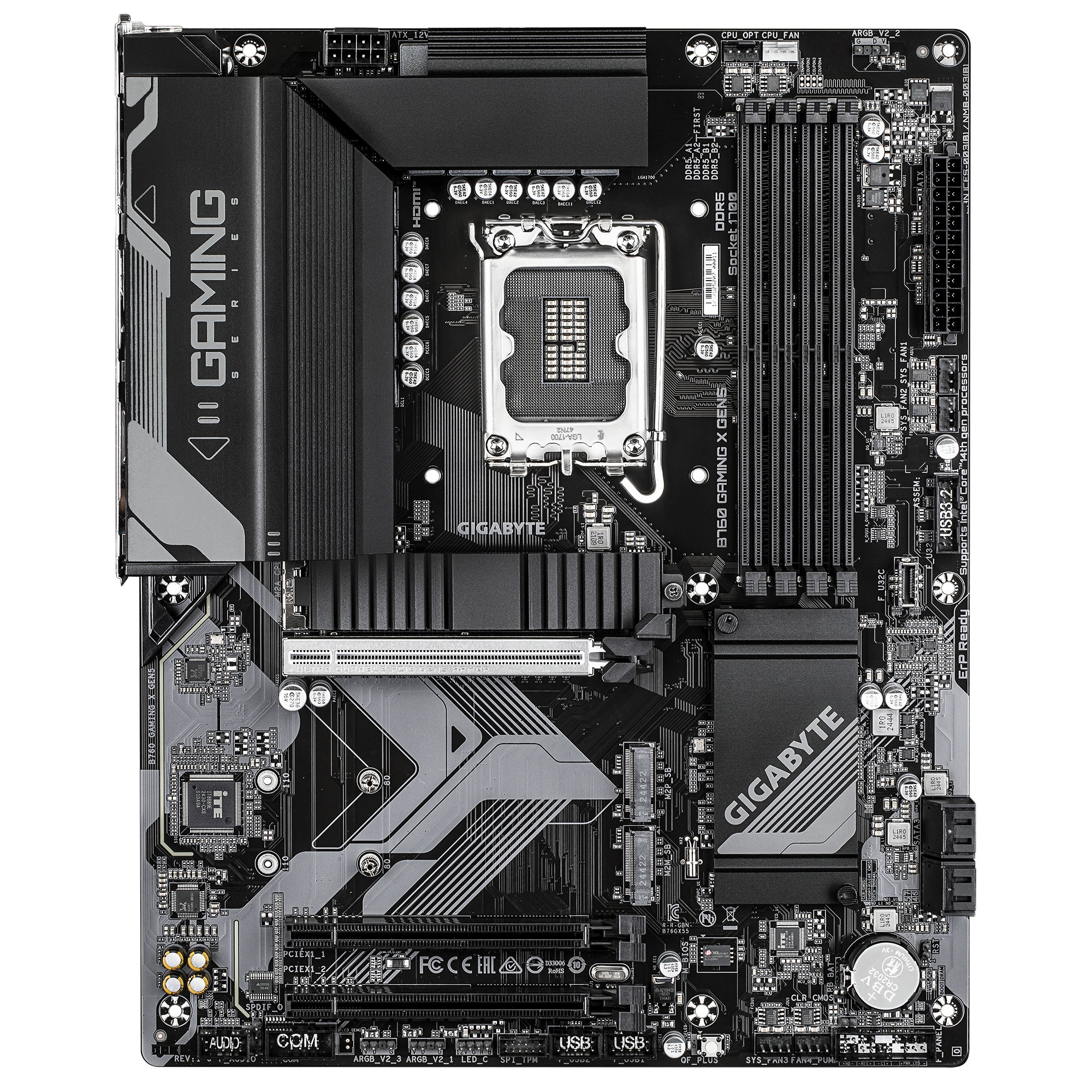

Motherboard GIGABYTE B760 GAMING X GEN5, socket 1700
Ref. number: GA-MB-B760-GAMING-D5
Price: 290.65 BGN / €148.61
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | B760 GAMING X GEN5 |
| Barcode | 4719331872120 |
| CPU Socket |
1700
|
| Chipset |
Intel B760
|
| CPU supports |
12th Generation Intel
13th Generation Intel
14th Generation Intel
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
7600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
Realtek 2.5Gb Ethernet
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 5.0 x16
|
| PCI Express x4 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24 pin ATX Power Connector
1 x 8-pin ATX 12V Power connector
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
6 x Audio jacks
|
| USB Ports |
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen 1
5 x USB 2.0
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
Description
Key Features
- Socket: LGA1700 – compatible with Intel Core 12th, 13th, and 14th generation processors.
- Chipset: Intel B760 – a stable platform for gaming and productivity.
- Form Factor: ATX – standard size with plenty of expansion options.
Memory and Expansion
- RAM: 4 DDR5 slots, up to 256 GB, with XMP profile support.
- SSD Slots: 3 x M.2 PCIe 4.0 + 4 x SATA 6Gb/s.
- PCIe Slots: 1 x PCIe 5.0 x16 for graphics card + additional PCIe 3.0 x1 slots.
Connectivity
- LAN: Realtek 2.5GbE – fast network connection.
- Video Outputs: HDMI 2.1 and DisplayPort 1.2.
- USB Ports: USB-C Gen2, USB 3.2 Gen1/Gen2, USB 2.0 – both on the panel and internal headers.
Cooling and Stability
- VRM: Hybrid 8+1+1 phase power – stability under load.
- Smart Fan 6 – multiple temperature sensors and hybrid fan headers.
Gaming and Convenience
- PCIe EZ-Latch – easy installation and removal of graphics cards.
- Q-Flash Plus – BIOS update without a processor.
- RGB Headers: 3 ARGB Gen2 + 1 RGB – for personalized lighting.
