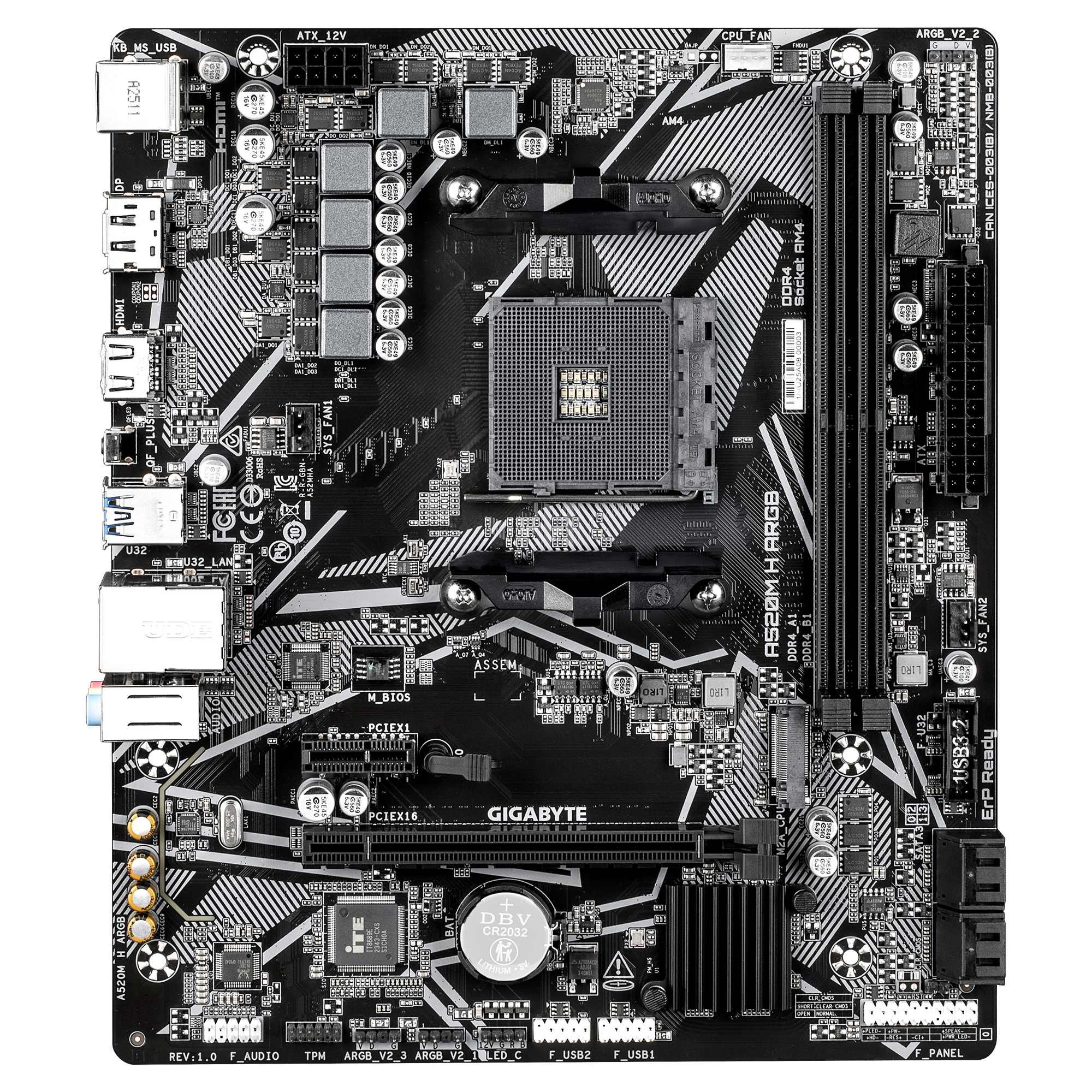

Motherboard GIGABYTE A520M H ARGB, Socket AM4
Ref. number: GA-MB-A520M-H-ARGB
Price: € 61.36 / 120.00 лв.
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | A520M H ARGB |
| Barcode | 4719331879822 |
| CPU Socket |
AM4
|
| Chipset |
AMD A520
|
| CPU supports |
3rd Generation AMD
4th Generation AMD
5000 Series AMD Ryzen
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
64 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
5100(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC887
|
| Integrated LAN |
Realtek GbE LAN (10/100/1000 Mbit)
|
| Integrated Wi-Fi | |
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
|
| Raid support |
0,1,10
|
| Power Connector | |
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
1 x Q-Flash Plus button
|
| USB Ports |
4 x USB 3.2 Gen 1
2 x USB 2.0
|
| Dimension | |
| Other |
Description
The GIGABYTE A520M H ARGB is a compact and reliable AM4 motherboard designed to support a wide range of AMD Ryzen processors, offering strong connectivity, ARGB lighting support, and efficient cooling features for stable everyday or gaming builds. It delivers essential modern features like PCIe 3.0 M.2, high‑quality audio, and Smart Fan 6 in a budget‑friendly micro‑ATX form factor.
- Processor Support: Compatible with AMD Ryzen 5000, 4000 G‑Series, and 3000 Series CPUs for flexible system builds.
- Memory: Dual‑channel DDR4 with support up to 64 GB and high overclocking frequencies for improved performance.
- Storage: PCIe Gen3 x4 M.2 slot supporting NVMe and SATA SSDs for fast boot and load times.
- Connectivity: Includes GbE LAN, USB 3.2 Gen1 ports, HDMI, and DisplayPort for versatile display and peripheral options.
- ARGB Lighting: Integrated ARGB header for customizable lighting setups.
- Cooling: Smart Fan 6 with multiple temperature sensors and hybrid fan headers for precise cooling control.
- Durability: Anti‑sulfur resistors and solid capacitors enhance long‑term reliability.
