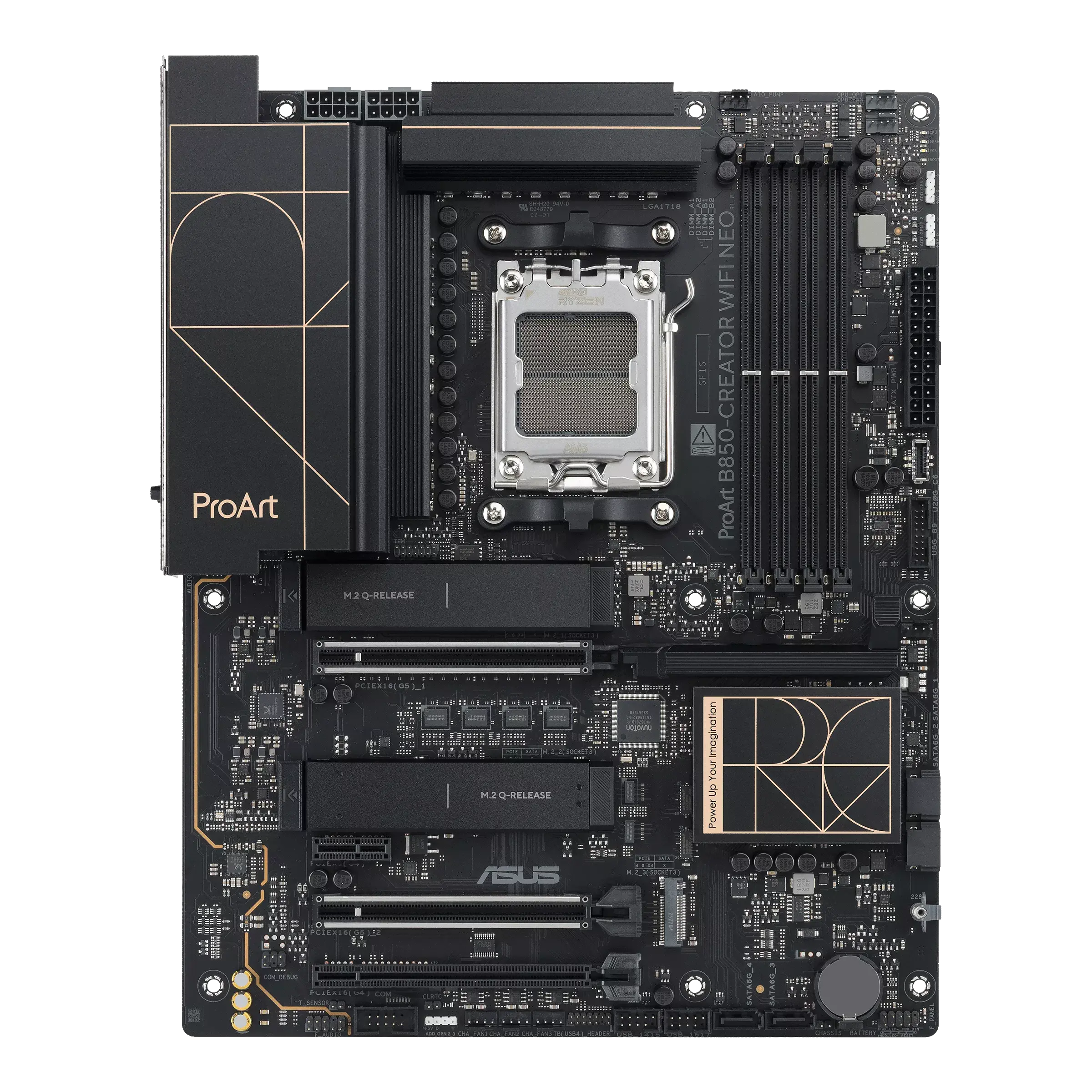

Motherboard ASUS ProArt B850-CREATOR WIFI NEO socket AM5
Ref. number: ASUS-MB-PROART-B850-C-NEO
Price: € 319.00 / 623.90 лв.
Specifications
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1P60-M0EAY0 |
| Barcode | 4711636504447 |
| CPU Socket |
AM5
|
| Chipset |
AMD B850
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8400(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Premium audio capacitors
Supports up to 32-Bit/384 kHz playback
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
ASUS LAN Guard
5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
2 x PCIe 5.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)
M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x Display Port
2 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
1 x Wi-Fi Module
|
| USB Ports |
4 x USB 2.0
2 x USB 10Gbps ports Type-A
1 x USB 20Gbps port Type-C
1 x USB 10Gbps ports Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
Description
The ASUS ProArt B850‑CREATOR WIFI NEO is a high‑end AM5 motherboard built for creators who need strong performance, fast connectivity, and robust expansion, combining PCIe 5.0, DDR5 support, Wi‑Fi 7, and dual 5GbE networking in a refined professional design.
- CPU Support: Compatible with AMD Ryzen 7000/8000/9000 Series and EPYC 4005 processors, offering excellent upgrade flexibility for creative and professional workloads.
- Memory Performance: Four DDR5 DIMM slots supporting up to 256GB with very high overclocking potential for demanding multitasking and content creation.
- Connectivity: Dual 5Gb Ethernet and next‑gen Wi‑Fi 7 deliver ultra‑fast, low‑latency networking ideal for large file transfers and cloud workflows.
- Expansion Options: Two PCIe 5.0 x16 slots plus additional PCIe 4.0 slots support powerful GPUs and high‑bandwidth add‑in cards.
- Storage Flexibility: Three M.2 slots and four SATA ports with RAID support provide ample room for fast NVMe storage and redundant setups.
- Professional Design: Clean, elegant ProArt aesthetic with black and gold accents, built for stability and creator‑focused workflows.
- Audio Quality: Realtek ALC1220P 7.1‑channel audio ensures clear, detailed sound for production and monitoring tasks.
