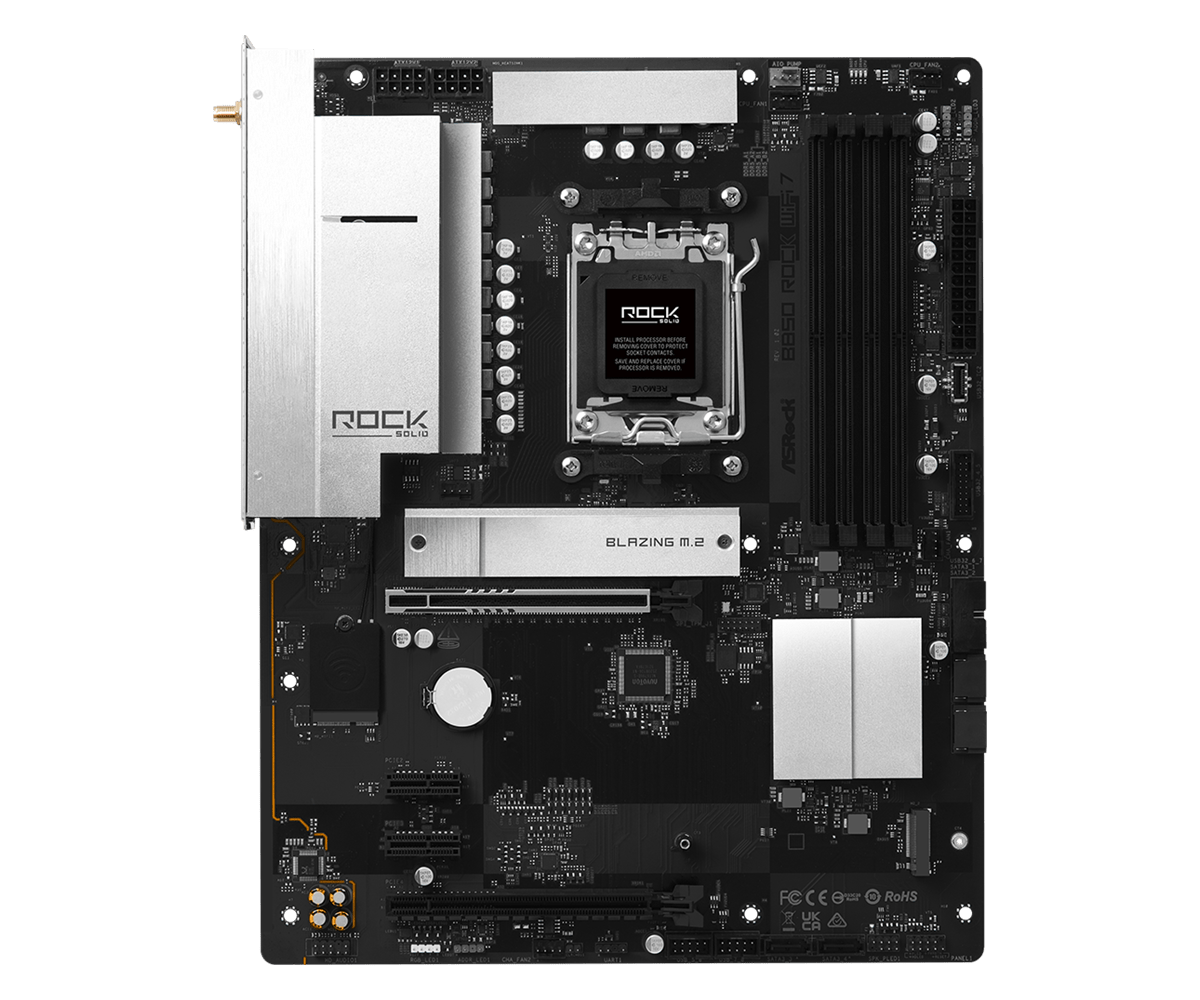

Motherboard ASRock B850 ROCK WIFI7 socket AM5
Ref. number: ASR-MB-B850-ROCK-WF7
Price: € 185.05 / 361.93 лв.
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B850 ROCK WIFI 7 |
| Barcode | 4711581493841 |
| CPU Socket |
AM5
|
| Chipset |
AMD B850
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8000(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
|
| Integrated Wi-Fi |
Bluetooth v5.4
Intel® Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 5.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 |
2
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s)
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
|
| Connectors |
1 x HDMI port
1 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
|
| USB Ports |
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0
1 x USB 10Gbps port Type-A
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
Description
A well‑balanced ATX motherboard built for modern AMD AM5 systems, the ASRock B850 ROCK WiFi 7 delivers strong power delivery, next‑gen connectivity, fast storage options, and integrated WiFi 7—making it a reliable choice for gaming, productivity, and future‑ready builds.
- CPU Support – Compatible with AMD Ryzen 7000, 8000 and 9000 Series processors for excellent upgrade flexibility.
- Memory – 4× DDR5 DIMM slots supporting dual‑channel configurations and speeds up to 8000+ (OC).
- Power Design – 9+2+1 power phase layout with Dr.MOS ensures stable performance and efficient power delivery.
- Expansion – Includes 1× PCIe 5.0 x16 slot for next‑gen GPUs and 1× PCIe 4.0 x16 slot for additional cards.
- Storage – Features 1× Blazing M.2 (PCIe Gen5x4) and 1× Hyper M.2 (PCIe Gen4x4) plus 4× SATA3 ports for versatile storage setups.
- Connectivity – Equipped with WiFi 7, Bluetooth, and Realtek 2.5G LAN for ultra‑fast wired and wireless networking.
- USB Options – Offers a rich selection of USB ports including USB‑C, USB 3.2 Gen2, Gen1, and USB 2.0 for all peripherals.
- Audio – Realtek ALC897 7.1‑channel HD audio for clear and immersive sound.
