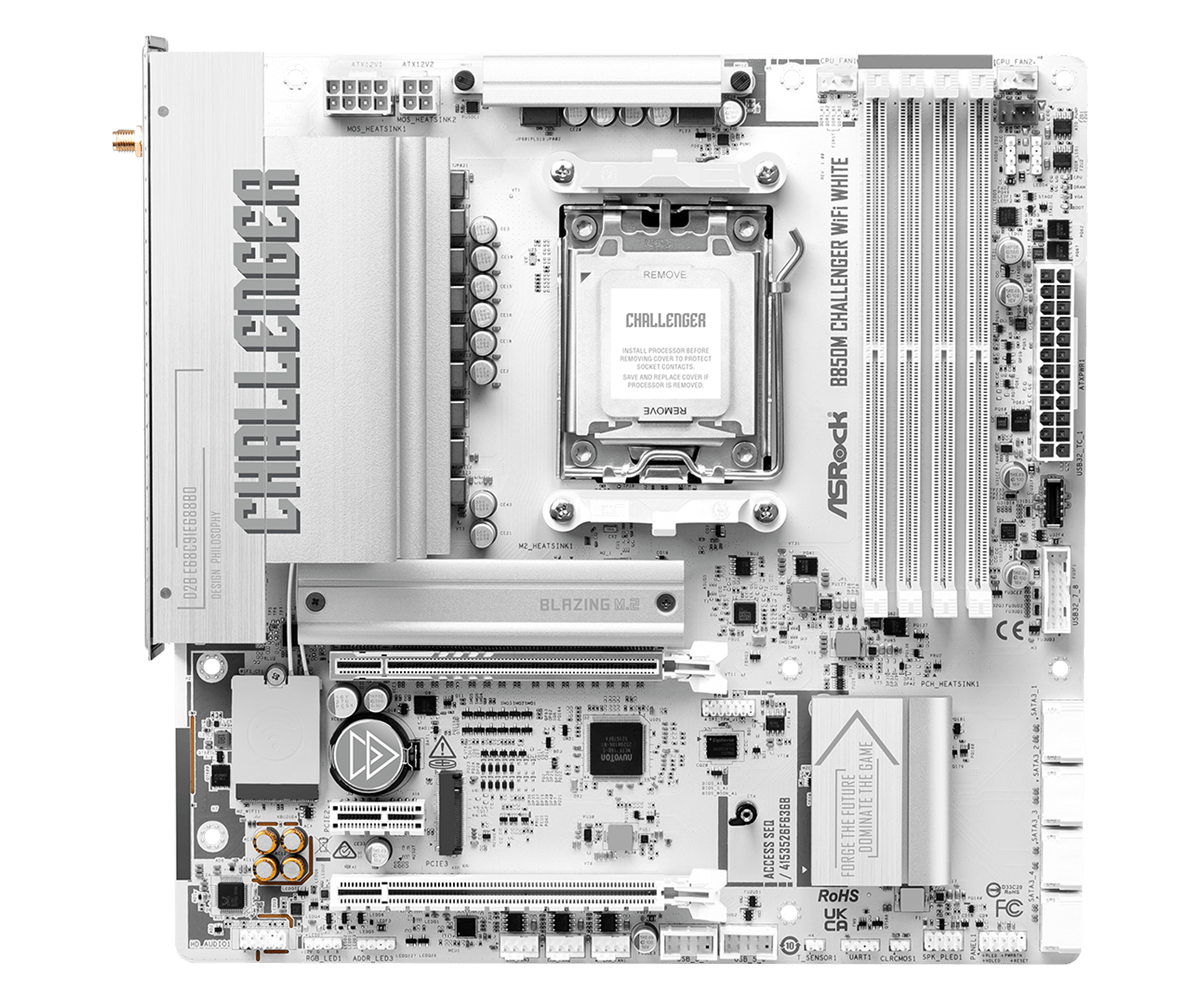

Motherboard ASRock B850M CHALLENGER WIFI WHITE socket AM5
Ref. number: ASR-MB-B850M-CHAL-WF-W
Price: € 163.60 / 319.97 лв.
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B850M CHALLENGER WIFI WHITE |
| Barcode | 4711581494145 |
| CPU Socket |
AM5
|
| Chipset |
AMD B850
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8000(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
|
| Integrated Wi-Fi |
Bluetooth v5.4
Intel® Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 5.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 | |
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s)
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
|
| Connectors |
1 x HDMI port
1 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
|
| USB Ports |
6 x USB 3.2 Gen 1
2 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other |
Description
A clean white Micro‑ATX motherboard built for AMD AM5 systems, the ASRock B850M Challenger WiFi White delivers strong performance, fast DDR5 support, PCIe Gen5 readiness, and modern connectivity. Its fresh white aesthetic makes it ideal for compact, stylish gaming or productivity builds.
- CPU Support – Compatible with AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 socket.
- Memory – Supports high‑speed DDR5 memory with 4 DIMM slots for stable and efficient performance.
- Power Design – Robust VRM layout ensuring reliable power delivery for gaming and multitasking workloads.
- Expansion – Includes a PCIe 5.0 x16 slot for next‑generation graphics cards and additional PCIe options.
- Storage – Equipped with multiple M.2 slots (including PCIe Gen5) plus SATA ports for flexible storage setups.
- Connectivity – Features WiFi 7 and 2.5GbE LAN for fast and modern networking.
- USB Options – Offers a solid range of USB ports including USB‑C and USB 3.2 for modern peripherals.
- Design – White Challenger styling for clean, visually appealing PC builds.
