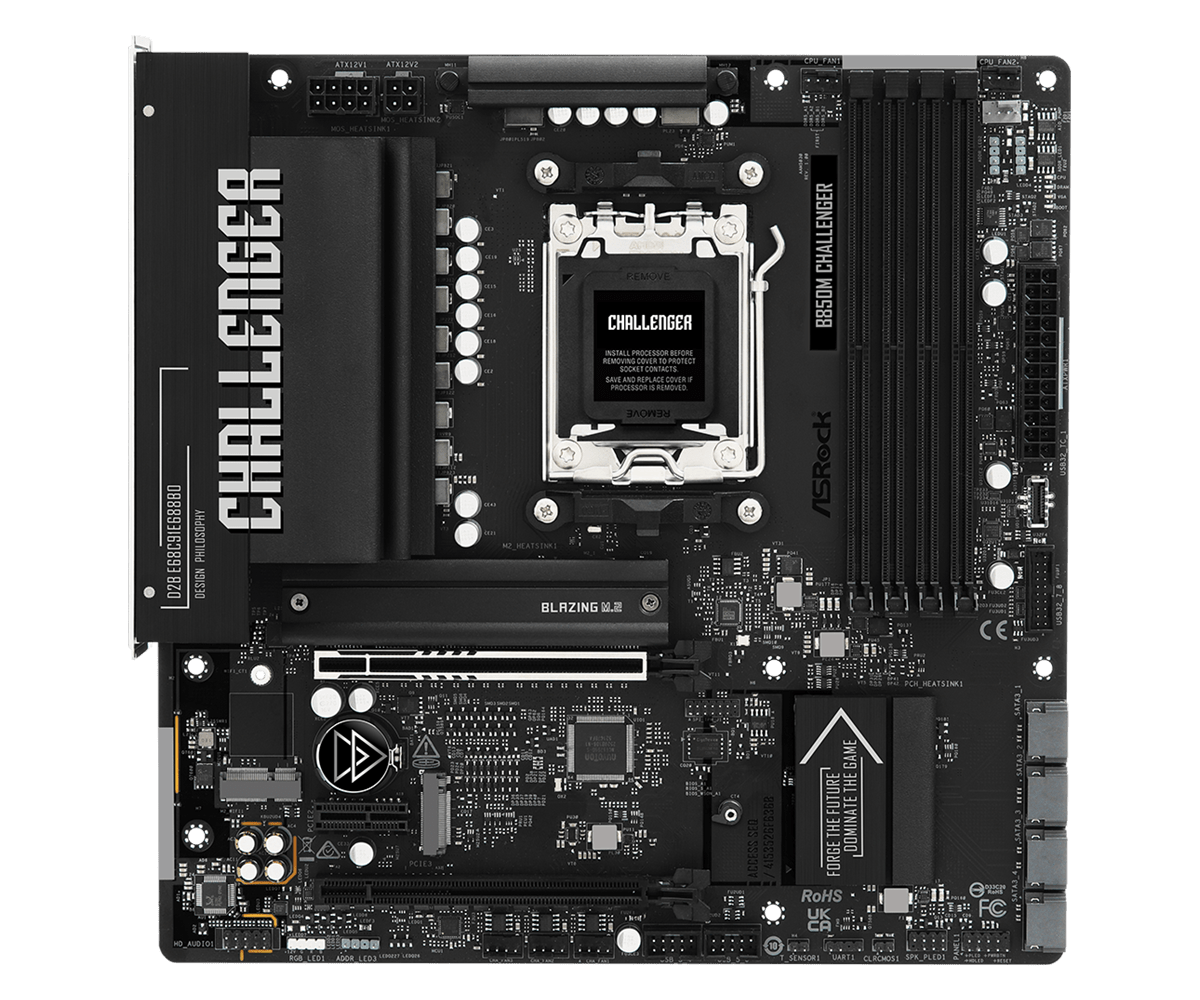

Motherboard ASRock B850M CHALLENGER socket AM5
Ref. number: ASR-MB-B850M-CHAL
Price: € 138.23 / 270.35 лв.
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B850M CHALLENGER |
| Barcode | 4711581494121 |
| CPU Socket |
AM5
|
| Chipset |
AMD B850
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8000(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 5.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 | |
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s)
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
|
| Connectors |
1 x HDMI port
1 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
|
| USB Ports |
6 x USB 3.2 Gen 1
2 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other |
Description
A compact and capable Micro‑ATX motherboard for AMD AM5 systems, the ASRock B850M Challenger delivers solid performance, DDR5 support, PCIe Gen5 readiness, and modern connectivity. It’s a reliable and well‑balanced choice for mainstream gaming and productivity builds.
- CPU Support – Compatible with AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 socket.
- Memory – Supports fast DDR5 memory across 4 DIMM slots for smooth multitasking and high performance.
- Power Design – Stable VRM configuration designed to handle modern CPUs efficiently.
- Expansion – Features a PCIe 5.0 x16 slot for next‑generation graphics cards and additional PCIe options.
- Storage – Includes multiple M.2 slots (with PCIe Gen5 support) plus SATA ports for flexible storage setups.
- Connectivity – Equipped with WiFi 7 and 2.5GbE LAN for fast and reliable networking.
- USB Options – Offers a strong selection of USB ports including USB‑C and USB 3.2 for modern peripherals.
- Design – Clean Challenger styling suitable for compact and performance‑oriented PC builds.
