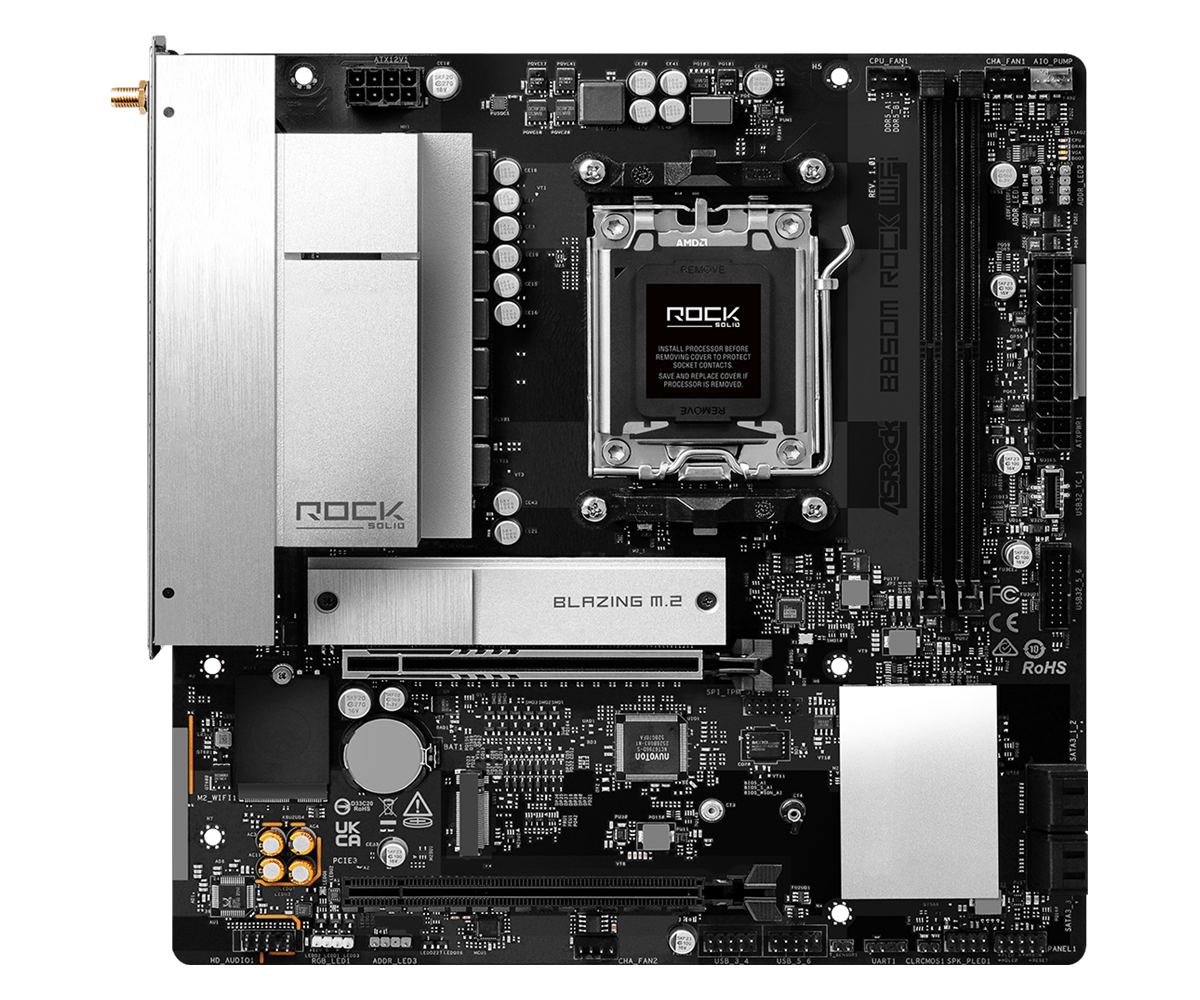

Motherboard ASRock B850M ROCK WIFI socket AM5
Ref. number: ASR-MB-B850M-ROCK-WF
Price: € 142.03 / 277.79 лв.
Specifications
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B850M ROCK WIFI |
| Barcode | 4711581494169 |
| CPU Socket |
AM5
|
| Chipset |
AMD B850
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
8200(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
|
| Integrated Wi-Fi |
Wi-Fi 6E
Bluetooth 5.3
|
| PCI-E x16 |
1 x PCIe 5.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 | |
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s)
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
|
| USB Ports |
4 x USB 3.2 Gen 1
2 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 22.6 cm
|
| Other |
Description
A well‑equipped Micro‑ATX motherboard for AMD AM5 systems, the ASRock B850M ROCK WiFi delivers strong performance, DDR5 support, PCIe Gen5 readiness, and fast wireless connectivity. Its clean design and balanced feature set make it a great choice for compact gaming or productivity builds.
- CPU Support – Compatible with AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 socket.
- Memory – Supports high‑speed DDR5 memory across 4 DIMM slots for smooth multitasking and strong performance.
- Power Design – Efficient VRM layout ensuring stable power delivery for modern multi‑core CPUs.
- Expansion – Features a PCIe 5.0 x16 slot for next‑generation graphics cards and additional PCIe expansion options.
- Storage – Includes multiple M.2 slots (with PCIe Gen5 support) plus SATA ports for flexible storage configurations.
- Connectivity – Equipped with WiFi 7 and 2.5GbE LAN for fast, reliable, and modern networking.
- USB Options – Offers a wide selection of USB ports including USB‑C and USB 3.2 for modern peripherals.
- Design – Clean ROCK‑series styling suitable for compact, performance‑oriented PC builds.
