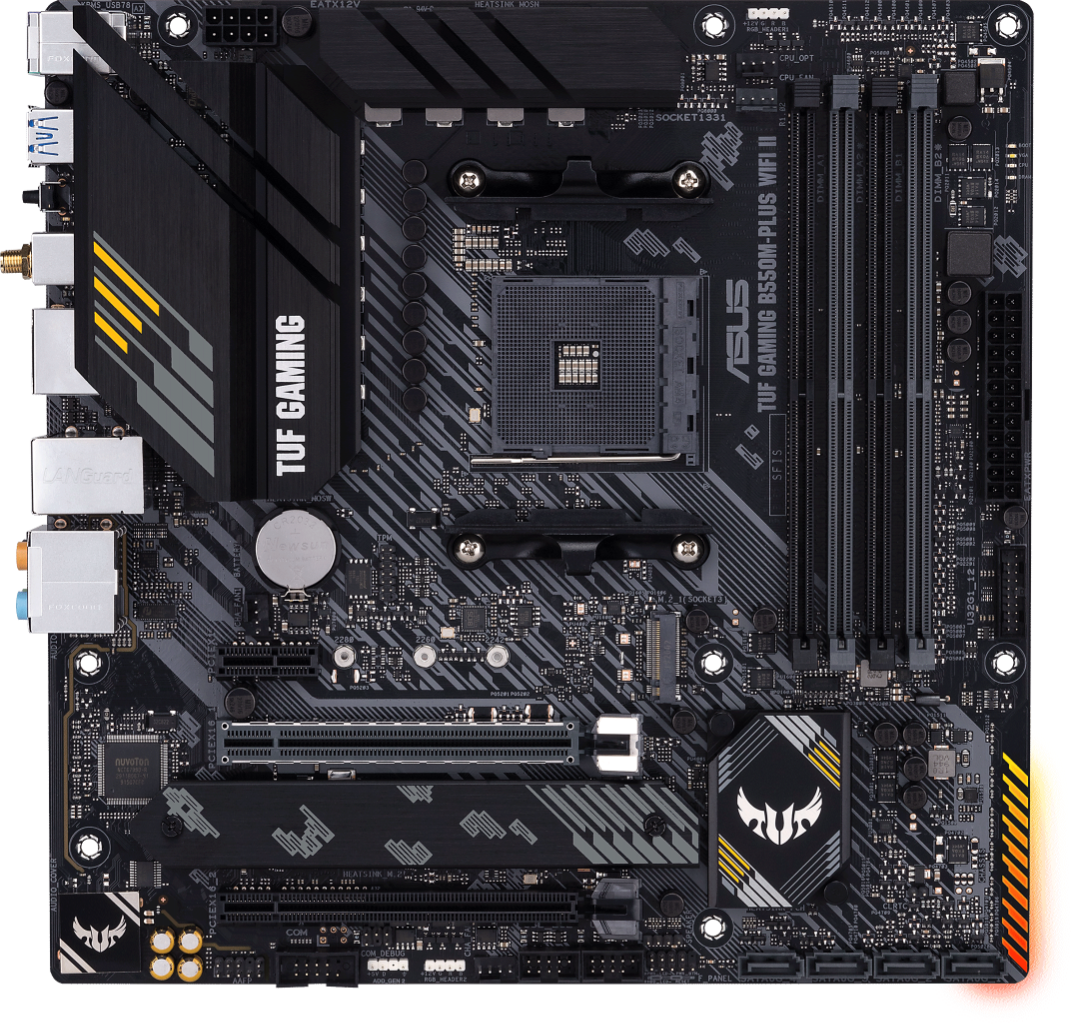

Motherboard ASUS TUF GAMING B550M-PLUS WIFI II, AMD AM4, micro ATX, 4x DDR4, dual M.2, Wi-Fi 6, PCIe 4.0, Aura Sync RGB
Ref. number: ASUS-MB-TUF-B550M-P-WF-II
Price: € 118.90 / 232.54 лв.
Specifications
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | TUF GAMING B550M-PLUS WIFI II |
| Barcode | 4711081305705 |
| CPU Socket |
AM4
|
| Chipset |
AMD B550
|
| CPU supports |
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
ALC897
|
| Integrated LAN |
TUF LANGuard
Realtek 2.5Gb Ethernet
|
| Integrated Wi-Fi |
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
|
| PCI-E x16 |
1 x PCIe 3.0 x16
1 x PCIe 4.0 x16
|
| PCI-E x1 |
1
|
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
|
| Raid support |
0, 1, 10
|
| Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|
| Connectors | |
| Dimension | |
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
Description
Motherboard ASUS TUF GAMING B550M-PLUS WIFI II, AMD AM4, micro ATX, 4x DDR4, dual M.2, Wi-Fi 6, PCIe 4.0, Aura Sync RGB
TUF GAMING B550M-PLUS WIFI II
AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C®, BIOS FlashBack™, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and DIGI+ VRM for maximum durability
- Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
- Ultrafast connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C® support
- Made for online gaming: Wi-Fi 6, Realtek 2.5Gb Ethernet, and TUF LANGuard
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
