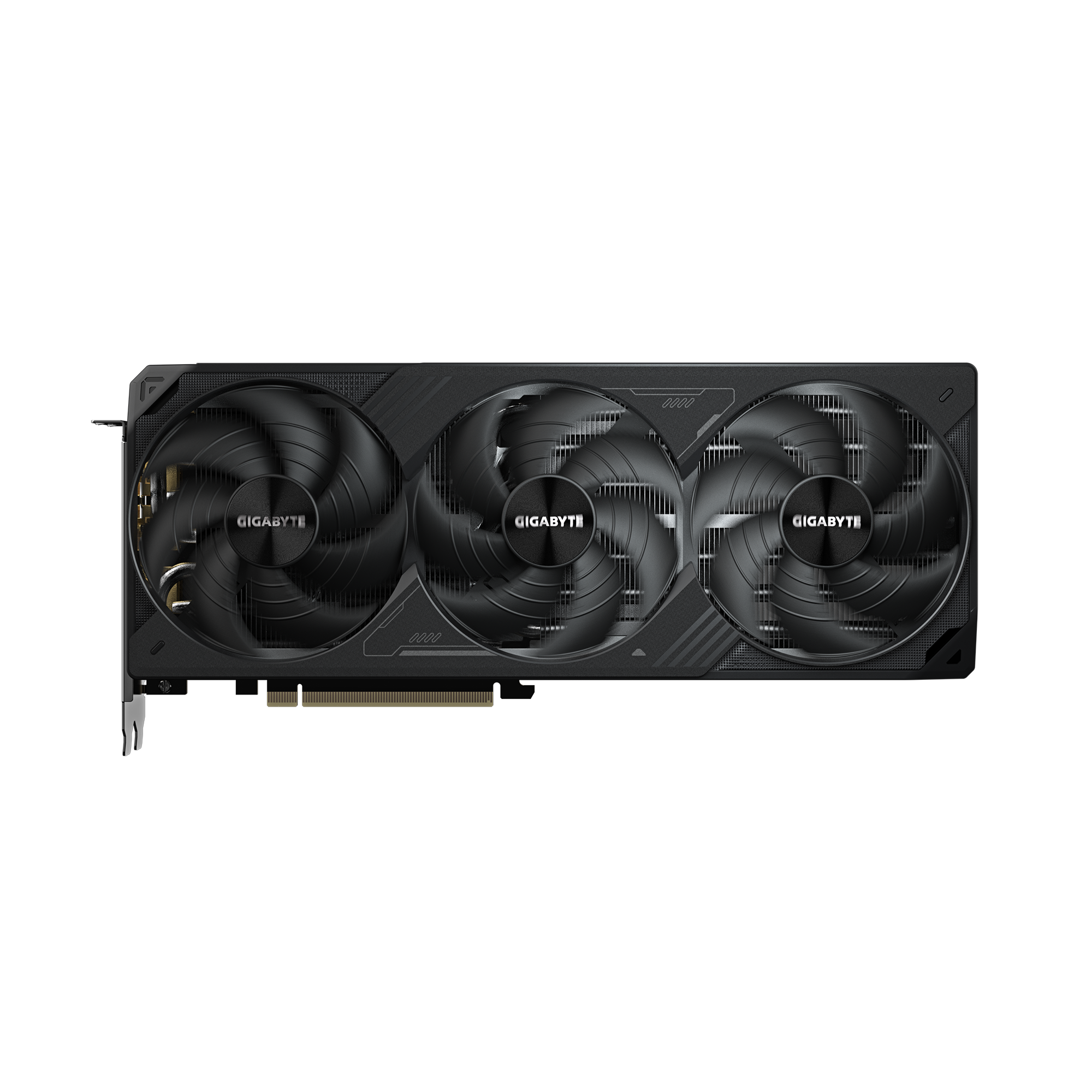

Graphic card GIGABYTE RTX 5070 TI WINDFORCE SFF 12GB GDDR7
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | GV-N507TWF3-16GD |
| Barcode | 4719331356002 |
| Сhipset |
nVIDIA
|
| Processor graphics |
GeForce RTX 5070 TI
|
| AI Performance |
N/A
|
| CPU Frequency (MHz) |
2452 MHz
|
| CUDA Core |
8960
|
| Memory Size |
16 GB
|
| Frequency Memory |
28 Gbps
|
| Memory type |
GDDR7
|
| Memory Bus (bits) |
256 bit
|
| Interface |
PCI Express 5.0
|
| Type of cooling |
Actively
|
| Max. resolution |
7680 x 4320
|
| Video outputs |
1 x HDMI 2.1
3 x DisplayPort 2.1
|
| Recommended PSU |
750W
|
| Power connectors |
1 x 16-pin
|
| Number of slots |
2.5 Slot
|
| Size (mm) |
304 x 126 x 50 mm
|
| Other specifications |
DirectX 12 API
DLSS 4.0
|
Description
The GIGABYTE RTX 5070 Ti WINDFORCE 16GB GDDR7 is a high-performance graphics card powered by NVIDIA's Blackwell architecture. It boasts 8960 CUDA cores and a core clock speed of 2497 MHz, delivering exceptional performance for gaming and creative tasks. With 16GB of GDDR7 memory and a 256-bit memory interface, it ensures smooth and efficient data processing.
The WINDFORCE cooling system features Hawk fans with alternate spinning, composite heat pipes, and a large vapor chamber for optimal thermal management. It supports PCIe 5.0 and DisplayPort 2.1, making it ready for high-resolution displays and future applications. Additionally, the card integrates NVIDIA's DLSS 4 technology for AI-enhanced graphics and performance.
Its compact size (304 x 126 x 50 mm) makes it suitable for small form factor builds. The card also includes Dual BIOS modes, allowing users to switch between Performance Mode for maximum power or Silent Mode for quieter operation.
