Description

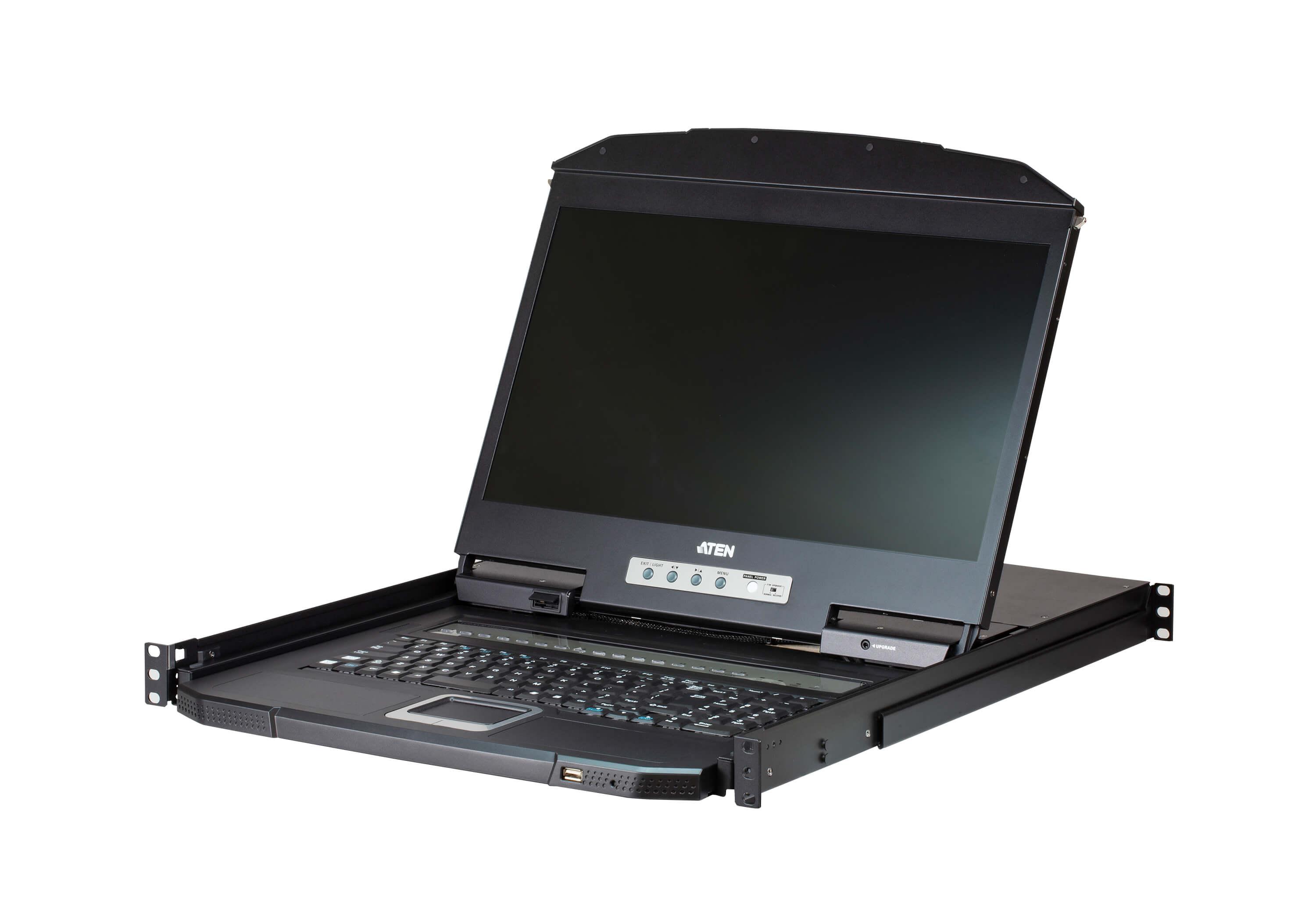

ATEN CL3108NX-ATA-AG is an integrated KVM console with 18.5-inch wide-screen LCD display, keyboard and keyboard, combined in one device with a single rail. This solution saves space and is ideal for narrow server cabinets.

Number of ports: 8 KVM ports (SPHD-18) for direct connection to up to 8 computers.

Cascade connection: Possibility of cascading up to 2 levels, allowing control of up to 128 computers from one console.

Interfaces: Supports both PS/2 and USB keyboards and mice.

Video input: VGA (analog) with maximum resolution up to 1920 x 1200 @ 60 Hz.

Display: 18.5" LED-backlit LCD with a resolution of 1366 x 768 pixels.

Lighting: Built-in LED lighting for the keyboard and touchpad, facilitating work in low light.

Management: Computer selection via buttons, keyboard shortcuts or multilingual on-screen menu (OSD).

Security: Two-step protection with a password to limit unauthorized access.

Additional USB port: Front USB port for connecting HID devices (keyboard/mouse).

Physical characteristics
Dimensions: 63.17 cm (W) x 48.06 cm (D) x 4.28 cm (W)

Mounting: 1U rack mounting with standard mounting kit included.

Energy consumption: Approximately 14.9 W

Operating temperature: 0°C to 40°C

Operating humidity: 0% to 80% (without condensation)
