Tank Alphacool Eisbecher Helix 250 mm - Green
Ref. number: AC-1013296
Price: 87.16 BGN
Specifications
|
Manufacturer |
Alphacool
|
|
Product code |
1013296
|
|
Capacity
|
250 ml
|
|
Height
|
250 mm
|
|
Dimensions
|
250 × 65 mm
|
|
Screw Threads
|
G1/4"
|
|
RGB
|
|
|
Color
|
Green
|
Description

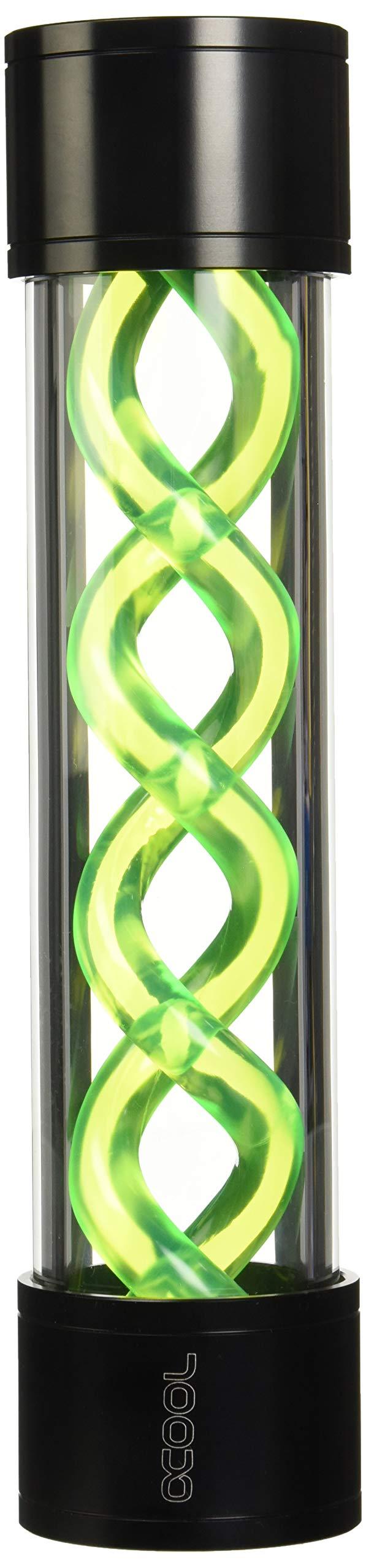

Alphacool Eisbecher Helix 250 mm - Green is a reservoir for water cooling that combines functionality and visual effect.
The Alphacool Eisbecher Helix 250mm - Green reservoir (1013296) is designed for:
- High-performance water-cooled PC systems (gaming, overclocking, servers)
- Custom loop cooling systems
- Visually appealing PC configurations with transparent cases
- Cooling of CPU, GPU, VRM, RAM components
- PC modding - with visual elements such as helix and UV lighting
Technical Specifications
| Parameter |
Value / Description |
| Model / Art. No. |
Eisbecher Helix 250mm Green / 1013296 |
| Dimensions (Height × Diameter) |
250 × 65 mm (outer Ø of tube: 60 mm) |
| Volume |
~340 ml |
| Materials |
PMMA (tube), anodized aluminum caps (green) |
| Helix Spiral |
Green, decorative, inside the tube |
| Connections (Ports) |
8 × G1/4" (3 top and bottom + 2 side) |
| UV Lighting |
Built-in UV cold cathode lamp with inverter (12V Molex power) |
| Cable Length (Lighting) |
~270 mm |
| Mounting |
Two types of brackets: 2× 120 mm fan mounting + universal vertical |
| Max. Operating Temperature |
60°C |
| Weight (net) |
~690 g |
| Compatibility |
Compatible with all G1/4" fittings and components (e.g., D5/DDC pumps) |
Usage and Integration
- Stores and circulates coolant - serves as a buffer in the cooling loop.
- Easy de-airing - thanks to large volume and additional ports.
- Decorative effect - green helix + UV lighting create an attractive visual effect.
- Flexible mounting - can be mounted vertically in almost any standard case.
- Multiple connections - possibility for sensors, drain, bypass, and custom configurations.
