Power Supply Gigabyte UD750GM PG5 ICE 750W, 80+ Gold PCIe 5.1
Ref. number: GA-PS-UD750GM-PG5-ICE
Price: 223.94 BGN / €114.50
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 60 months |
| Product code | GP-UD750GM PG5 ICE |
| Barcode | 4719331556310 |
| Wattage (W) |
750 W
|
| Form Factor |
ATX
|
| Connectors |
1 x 20+4 PIN
8 x SATA
4 x PCI-Express 6+2-pin
1 x PCI-e 16 Pin
2 x CPU 4+4 Pin
5 x 4 Pin Peripheral
2 x Floppy
|
| Efficiency |
90 %
|
| Sertificate |
80 PLUS® Gold
|
| Modular |
Yes
|
| PFC |
Active PFC
|
| Fan Size |
120 mm
|
| Dimension |
140 x 150 x 86 mm
|
| Input Voltage |
100 - 240 V
|
Description

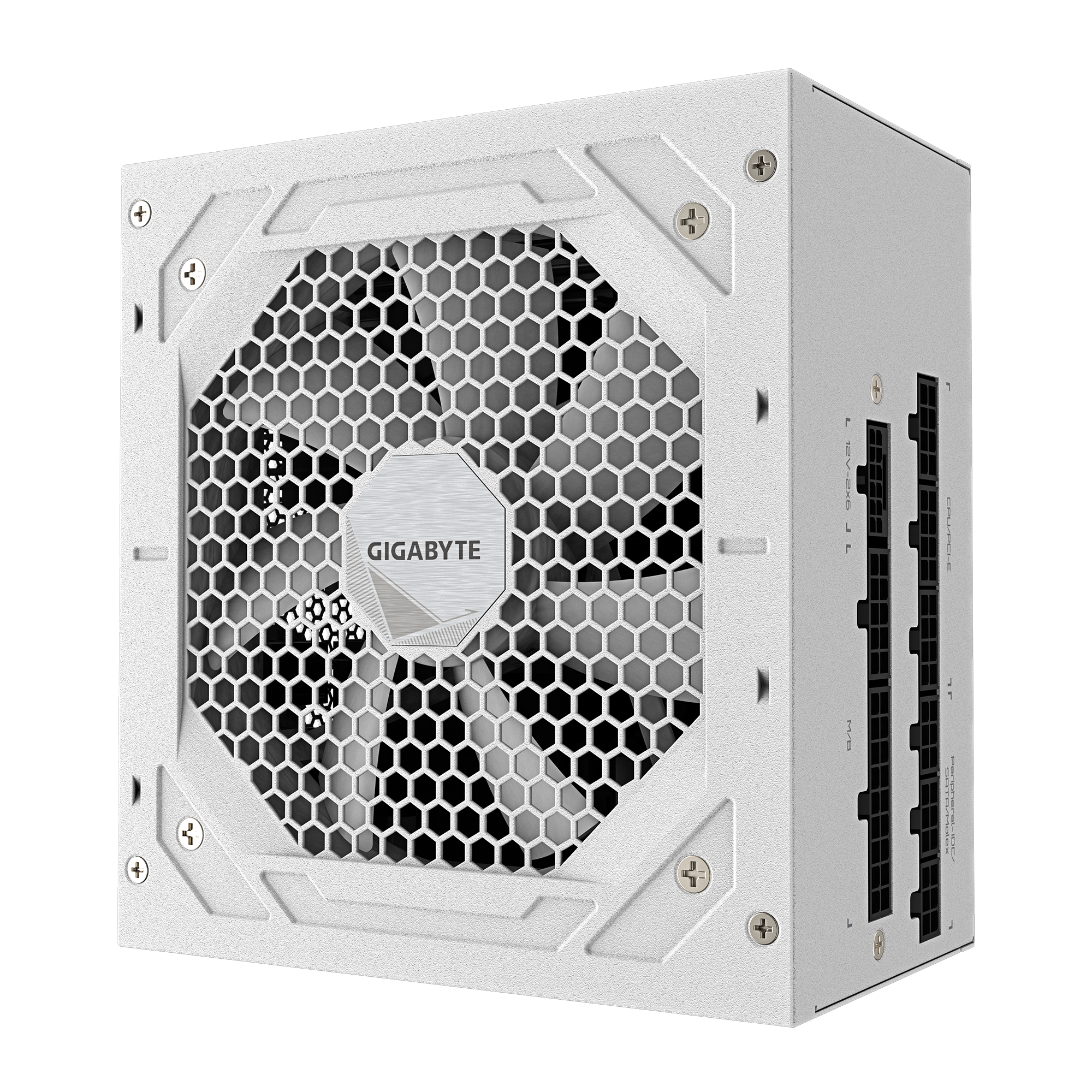

GIGABYTE UD750GM PG5 V2 ICE
Key Features
- Power Output: 750W – suitable for high-performance gaming and workstation builds.
- Certification: 80 PLUS Gold – over 90% efficiency at 50% load.
- Standards: Compliant with ATX 3.1 and PCIe Gen 5.1 – ready for the latest graphics cards, including the RTX 50 series.
Design and Cooling
- Color: White ICE edition – sleek and modern appearance.
- Fan: 120mm with hydraulic bearing (HYB) – quiet and durable, with automatic speed control.
- Dimensions: Compact body – only 140mm deep, fits most cases.
Convenience and Protection
- Modular Design: Fully modular – use only the cables you need for better airflow and easier installation.
- Protections: OVP, OPP, SCP, UVP, OCP, OTP – full system protection.
- GPU Cable: 16-pin PCIe Gen 5 – delivers up to 450W for next-gen graphics cards.
