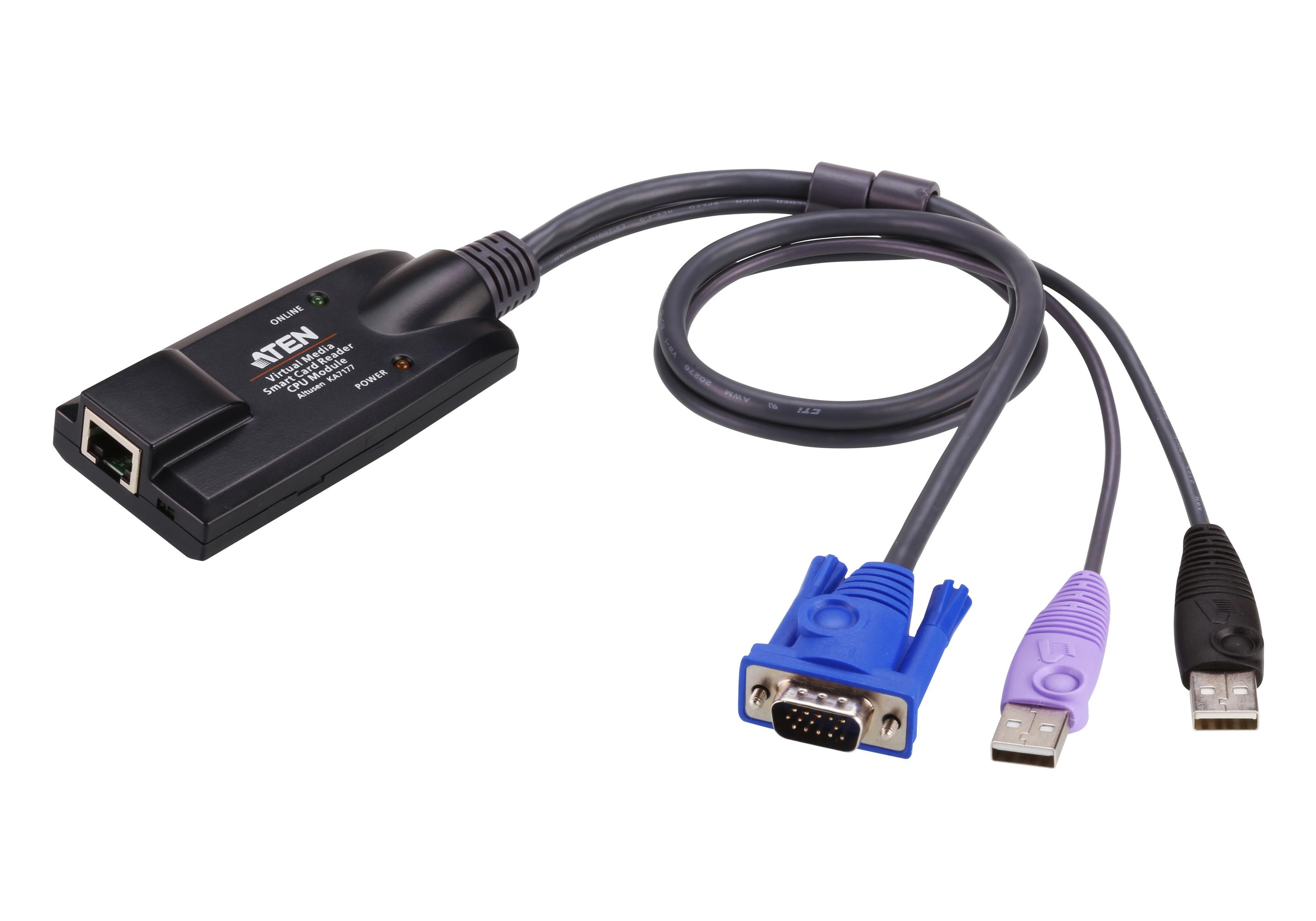

ATEN KA7177-AX – USB VGA Virtual Media KVM Adapter with Smart Card Support

A professional CPU module for ATEN KVM over IP and matrix KVM systems, designed for reliable operation in corporate and data center environments.

Key advantages

• Connects a server/workstation to an ATEN KVM over IP or matrix KVM via a single RJ-45 link

• Virtual Media support for remote installations, updates, and maintenance

• Smart Card / CAC USB port for high-security environments

• Stable VGA video up to 1920 × 1200 with Auto Signal Compensation

• Keyboard/mouse emulation for uninterrupted server operation

• Compact, lightweight module with integrated ASIC and LED indicators

Technical specifications

Product type

• USB VGA Virtual Media KVM adapter (CPU module) with Smart Card/CAC support

Role

• Connects a server/computer to an ATEN KVM over IP or matrix KVM switch via RJ-45 (Cat5e/6)

Connectors

To the KVM switch:

• 1 × RJ-45 (female) – Link

To the computer:

• 2 × USB Type-A (keyboard/mouse + Smart Card/CAC)

• 1 × HDB-15 VGA (male)

Video and signal

• Maximum resolution: up to 1920 × 1200 (Reduced Blanking)

• Auto Signal Compensation (ASC) – automatic compensation based on cable length

• Advanced chroma/delay skew correction

• No DIP switches required

Functionality

• Virtual Media support

• Smart Card / CAC reader support

• Keyboard and mouse emulation

• Integrated ASIC

• Lifetime firmware upgrades

LED indicators

• Online: green

• Power: orange

Operating conditions

• Operating temperature: 0–50 °C

• Storage temperature: −20–60 °C

Physical specifications

• Enclosure: plastic

• Dimensions (L × W × H): 9.00 × 4.30 × 2.18 cm

• Weight: approx. 0.16 kg

Description

ATEN KA7177-AX is a USB VGA Virtual Media KVM adapter (CPU module) designed to connect servers and workstations to ATEN KVM over IP and matrix KVM solutions via a standard Cat5e/6 cable. It consolidates video, USB, and Smart Card/CAC signals into a single RJ-45 link, significantly simplifying cabling and easing the management of large infrastructures.

The module is built for environments where reliability and security are critical—corporate server rooms, data centers, control rooms, financial institutions, and government organizations. Virtual Media support enables remote mounting of ISO images, installations, and updates without physical access to the machine. The additional USB Smart Card/CAC port ensures compatibility with systems requiring strong authentication.

KA7177-AX uses Auto Signal Compensation and advanced delay skew correction to guarantee stable VGA video up to 1920 × 1200 (Reduced Blanking) regardless of cable length. The integrated ASIC enhances compatibility and reliability, while keyboard/mouse emulation ensures uninterrupted server operation even during switching or temporary disconnection.

Its compact enclosure, low weight, and LED status indicators make the module easy to deploy in densely populated server racks, where space is limited and signal stability is essential.
