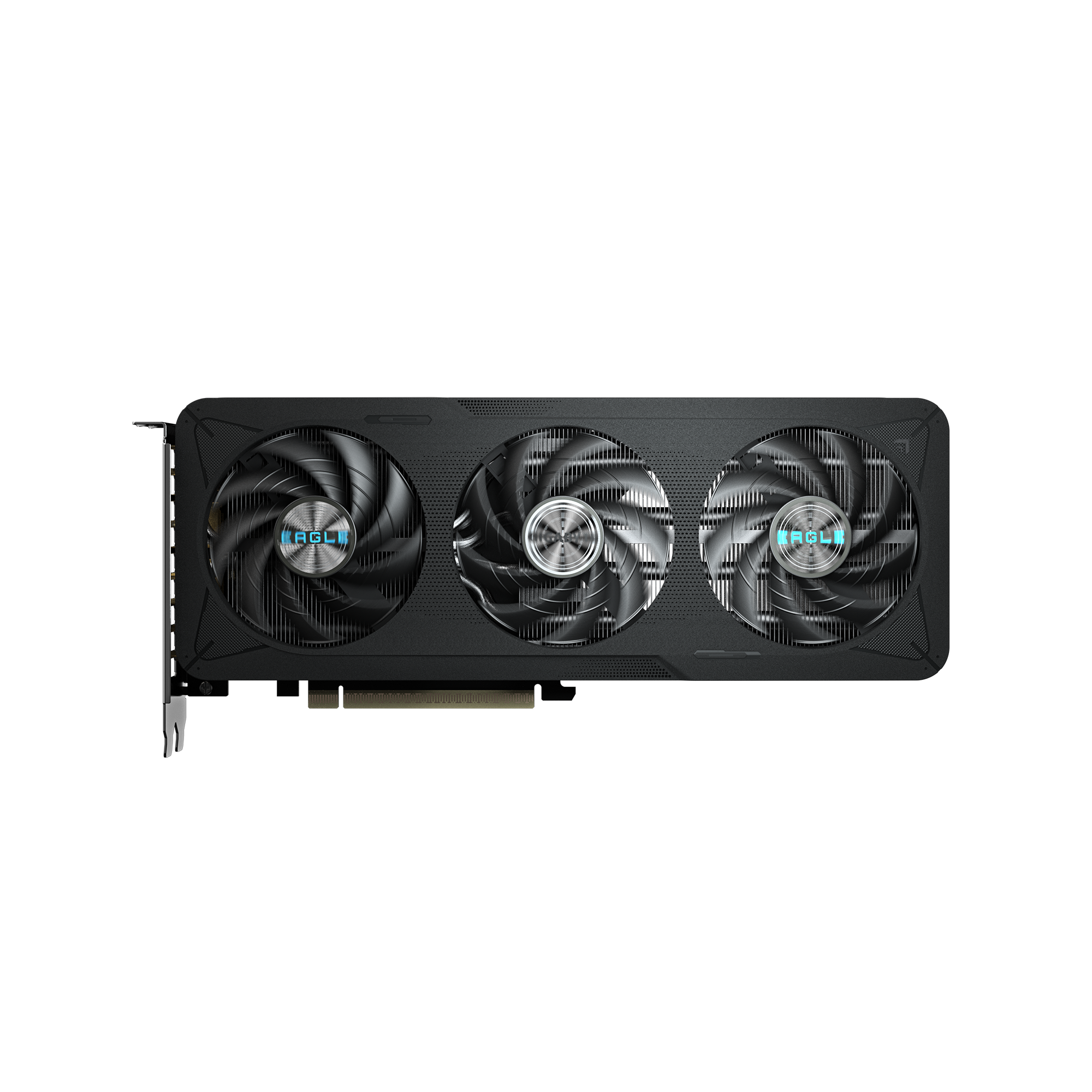

Graphic card GIGABYTE RTX 5060 TI EAGLE MAX OC 8GB GDDR7
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | GV-N506TEAGLEMAXOC-8GD |
| Barcode | 4719331356637 |
| Сhipset |
nVIDIA
|
| Processor graphics |
GeForce RTX 5060 TI
|
| AI Performance |
N/A
|
| CPU Frequency (MHz) |
2617 MHz
|
| CUDA Core |
4608
|
| Memory Size |
8 GB
|
| Frequency Memory |
28 Gbps
|
| Memory type |
GDDR7
|
| Memory Bus (bits) |
128 b
|
| Interface |
PCI Express 5.0
|
| Type of cooling |
Actively
|
| Max. resolution |
7680 x 4320
|
| Video outputs |
1 x HDMI 2.1
3 x DisplayPort 2.1
|
| Recommended PSU |
650W
|
| Power connectors |
1 x 8-pin
|
| Number of slots |
Dual Slot
|
| Size (mm) |
281 x 115 x 40 mm
|
| Other specifications |
DirectX 12 API
DLSS 4.0
|
The GIGABYTE GeForce RTX 5060 Ti EAGLE MAX OC 8GB GDDR7 is a high-performance graphics card designed for gamers and creators seeking next-generation visual fidelity and speed. Built on NVIDIA’s advanced Blackwell architecture, it features 8GB of ultra-fast GDDR7 memory over a 128-bit bus, PCIe 5.0 support, a factory-overclocked boost clock up to 2617 MHz, and GIGABYTE’s signature WINDFORCE cooling system to deliver smooth high-FPS gameplay and accelerated AI workflows.
NVIDIA Blackwell Architecture: Operates on NVIDIA's cutting-edge Blackwell GPU architecture with 5th-gen Tensor Cores and 4th-gen Ray Tracing Cores for photorealistic graphics, path tracing, and neural rendering.
Next-Gen GDDR7 Memory: Packed with 8GB of ultra-fast GDDR7 memory running at 28 Gbps, delivering massive bandwidth and exceptional responsiveness in modern titles and creative software.
Factory Overclocked Speed: Comes factory-tuned with a boost clock of up to 2617 MHz, giving you enhanced out-of-the-box gaming performance over standard speeds.
WINDFORCE Cooling System: Features aerodynamic Hawk fans with alternate spinning, server-grade thermal conductive gel, composite copper heat pipes, and semi-passive 3D Active fans for maximum heat dissipation and quiet operation.
DLSS 4.5 & AI Enhancements: Leverages NVIDIA DLSS 4.5 with Dynamic Multi-Frame Generation and NVIDIA Reflex technology for higher frame rates and minimal system latency.
Ultra Durable Construction: Built with lower RDS(on) MOSFETs, solid capacitors, and a reinforced protective backplate to ensure supreme stability and extended operational life.
Modern High-Speed Connectivity: Equipped with a PCIe 5.0 x8 interface along with DisplayPort 2.1b and HDMI 2.1b outputs for high-refresh-rate displays and multi-monitor setups.
