New
Motherboard ASROCK WRX90 WS EVO, Socket sTR5, ATX, 8xDDR5
Ref. number: ASR-MB-WRX90-WS-EVO
limited availability (up to 3)
View availability
Шереметя
New
Motherboard ASROCK WRX90 WS EVO, Socket sTR5, ATX, 8xDDR5
limited availability (up to 3)
View availability
Шереметя
Ref. number: ASR-MB-WRX90-WS-EVO
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | WRX90 WS EVO |
| Barcode | 4710483945199 |
| CPU Socket |
sTR5
|
| Chipset |
AMD WRX90
|
| CPU supports |
7th Series AMD Threadripper and Threadripper PRO processors
9th Series AMD Threadripper WX processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
2 TB
|
| Number of Memory Slots |
8
|
| Frequency Memory |
7600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
|
| Integrated LAN |
2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel® X710-AT2)
|
| Integrated Wi-Fi |
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Bluetooth v5.2
|
| PCI-E x16 |
7 x PCIe 5.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4
|
| Raid support |
0,1,10
RAID 0/1/10 for M.2 NVMe
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector)
|

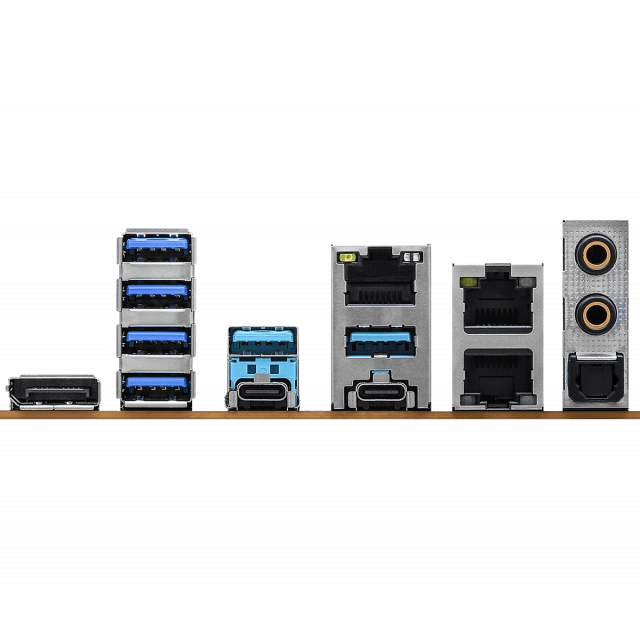

| Connectors |
1 x Display Port
2 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x RJ45 Dedicated IPMI LAN Port
|
| USB Ports |
2 x USB 3.2 Gen1
4 x USB 10Gbps ports Type-A
2 x USB4 40Gbps ports Type-C
|
| Dimension |
EEB Form Factor - 30.5 cm x 33.0cm
|
| Other | |
| Weight | 1.204 kg |
Quantity discounts
