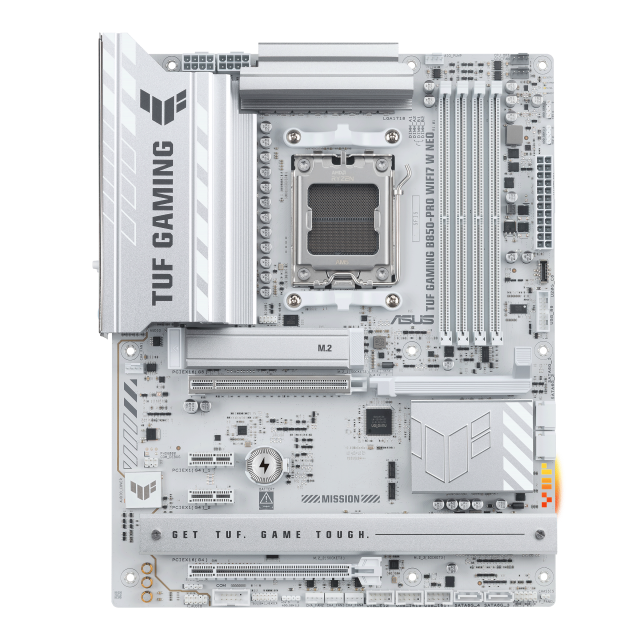

Motherboard ASUS TUF GAMING B850-PRO WIFI7 W NEO socket AM5
Motherboard ASUS TUF GAMING B850-PRO WIFI7 W NEO socket AM5
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|

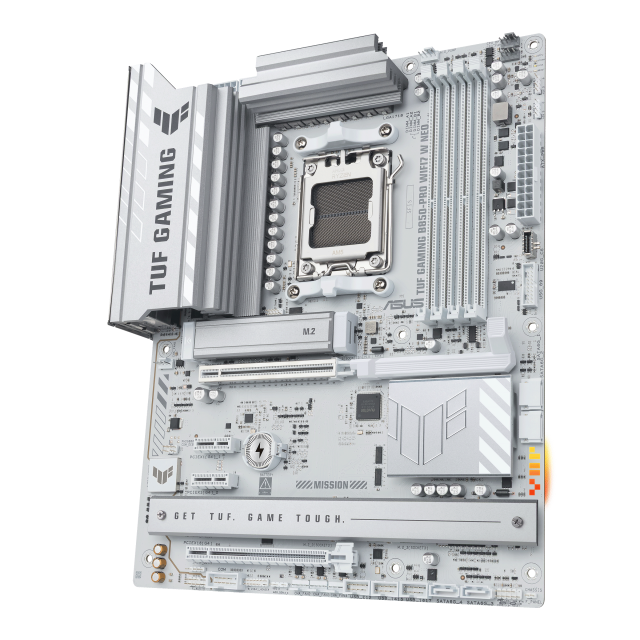

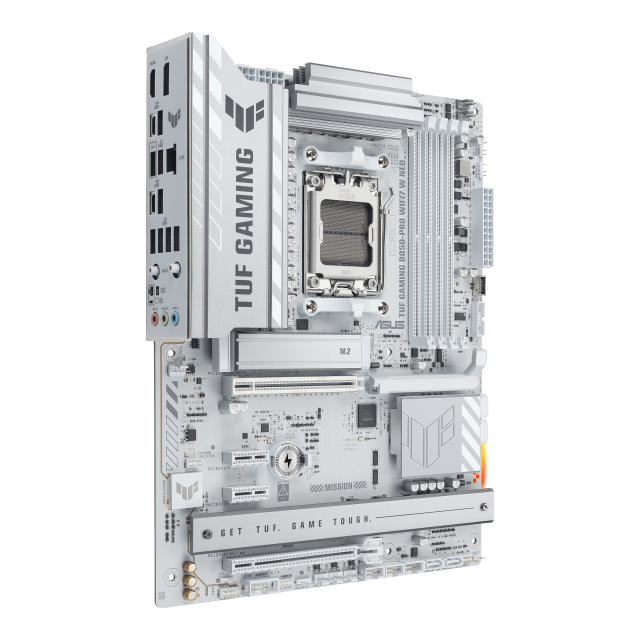

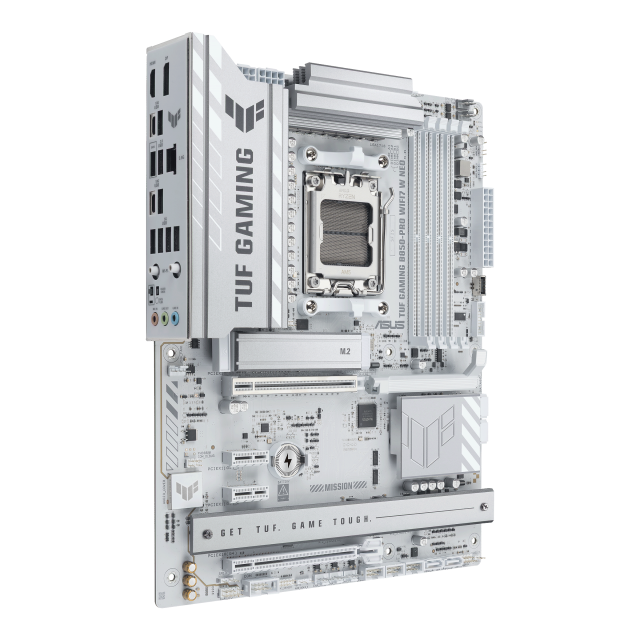

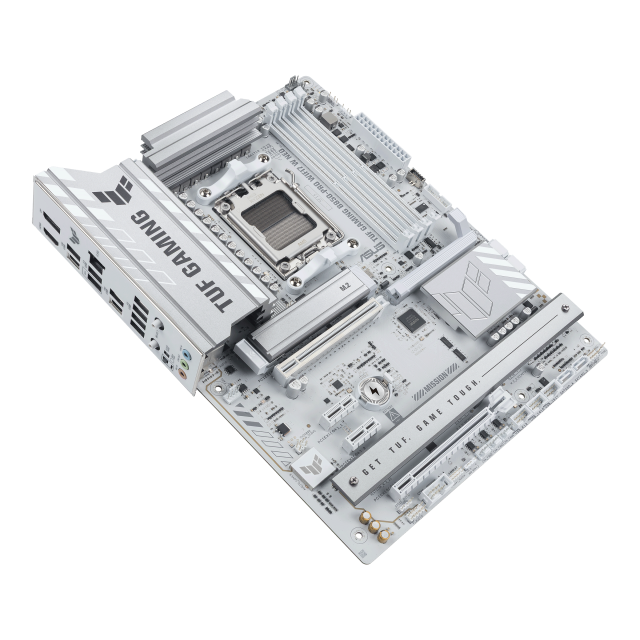

The ASUS TUF GAMING B850-PRO WIFI7 W NEO is an exceptional ATX motherboard engineered for AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket, blending game-ready performance, military-grade durability, and an elegant white aesthetic. Built on an 8-layer server-grade PCB with a robust 14+2+1 power stage design, high-speed PCIe 5.0 support for GPUs and SSDs, accelerated DDR5 memory, lightning-fast Wi-Fi 7, and intelligent AI tuning features, this motherboard delivers rock-solid stability and future-proof connectivity for gamers, overclockers, and creators.
-
Processor Compatibility: Full support for AMD Socket AM5 across Ryzen 7000, 8000, and 9000 series desktop processors, providing outstanding longevity and high-performance computing capabilities.
-
Robust Power Architecture: Features 14+2+1 (80A) power stages, Digi+ VRM voltage control, ProCool power connectors, and enlarged heatsinks built on an 8-layer server-grade PCB for efficient heat dissipation and steady power delivery.
-
High-Speed Memory Support: Supports up to 256GB of dual-channel DDR5 memory with extreme overclocking capability (9000+ MT/s) alongside AMD EXPO and ASUS Enhanced Memory Profiles (AEMP).
-
Next-Gen Expansion & Storage: Features a PCIe 5.0 x16 slot for modern graphics cards and three M.2 slots (including a PCIe 5.0 x4 M.2 slot for ultra-fast NVMe SSDs), complete with dedicated thermal heatsinks.
-

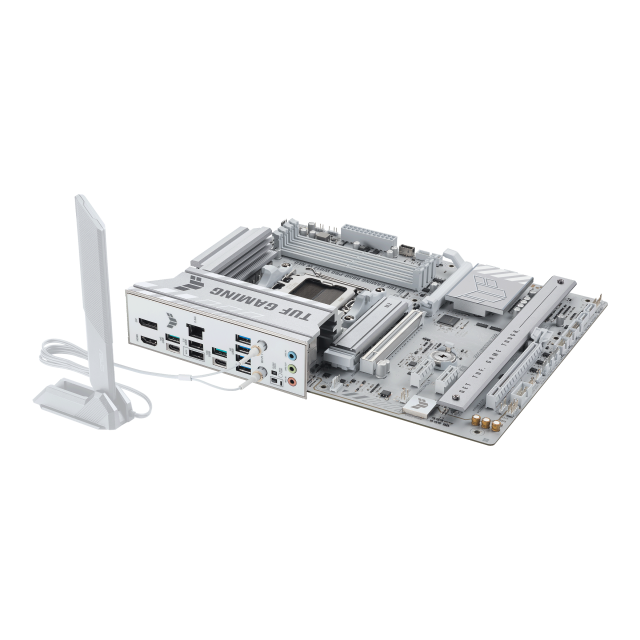

Ultrafast Networking & Ports: Packed with cutting-edge Wi-Fi 7 (complemented by the ASUS WiFi Q-Antenna), 2.5Gb Ethernet, front-panel USB 20Gbps Type-C, dual rear USB 10Gbps Type-C ports, and a Thunderbolt (USB4) header.
-
Smart AI Enhancements: Integrates ASUS AI Cache Boost, AI Advisor, and AI Cooling II to automatically tune system performance, streamline network traffic, and optimize fan speeds based on workloads.
-
DIY-Friendly Design: Effortless building with tool-free solutions like PCIe Slot Q-Release, M.2 Q-Release, M.2 Q-Latch, Q-Antenna, BIOS FlashBack™, and a rear Clear CMOS button.
-
High-Fidelity Audio: Powered by the Realtek ALC1220P 7.1 Surround Sound HD codec with audio shielding, an integrated headphone amplifier, and premium capacitors for immersive sound reproduction.
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1NW0-M0EAY0 |
| Barcode | 4711636435994 |
| CPU Socket |
AM5
|
| Chipset |
AMD B850
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
9066(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
1 x Realtek 2.5Gb Ethernet port
TUF LANGuard
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 4.0 x16
1 x PCIe 5.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 |
2
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|

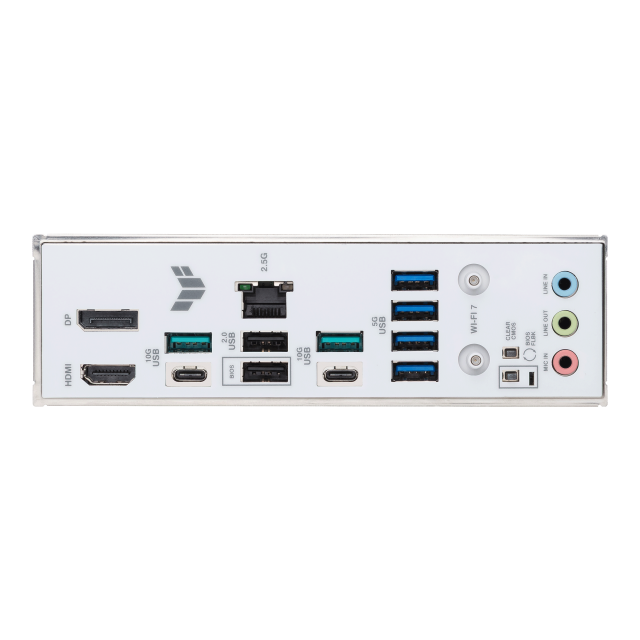

| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
1 x Clear CMOS button
1 x Wi-Fi Module
|
| USB Ports |
2 x USB 2.0
4 x USB 5Gbps ports Type-A
2 x USB 10Gbps ports Type-A
2 x USB 10Gbps ports Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other | |
| Weight | 0.808 kg |
