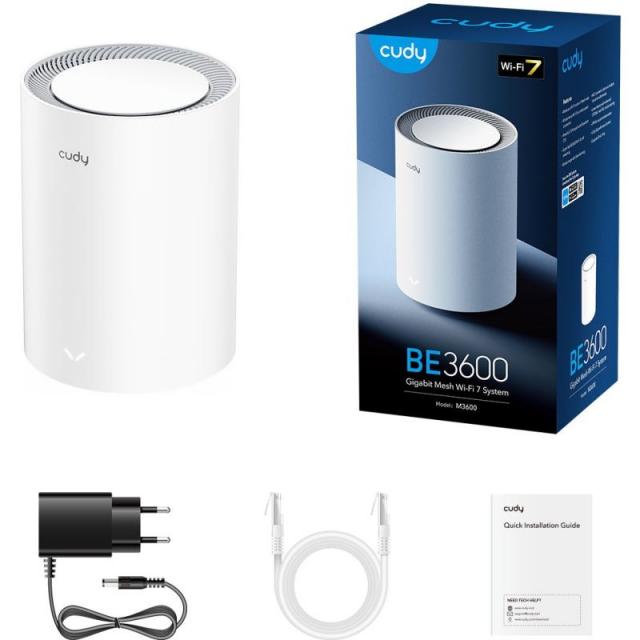

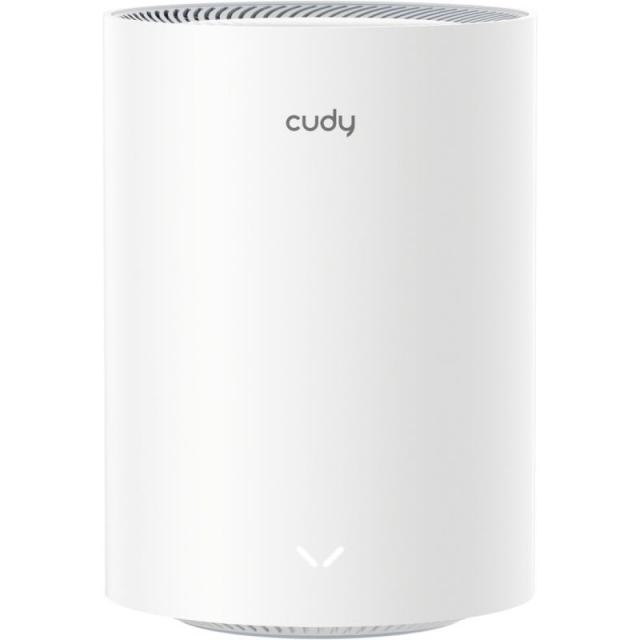

Wireless MESH system router Cudy M3600-1-pack BE3600 WiFi 7 whole home system

Cudy M3600 BE3600 is a Wi-Fi 7 Mesh system with up to 3.6 Gbps, 3 Gigabit ports, and coverage for a large home, ideal for 4K streaming, gaming, and smart devices.

The Cudy M3600-1-pack BE3600 wireless Mesh router system is a dual-band Wi-Fi 7 network solution designed to deliver high speed, low latency, and stable coverage throughout the home using a single powerful Mesh unit. It combines the advanced technologies of Wi-Fi 7 with easy installation and intelligent management, enabling support for dozens of devices, 4K/8K streaming, gaming, and smart home scenarios without interruptions.

Cudy M3600 BE3600 is a modern dual-band Wi-Fi 7 Mesh system created to provide stable and fast internet in every room of the home. With a total wireless speed of up to about 3.6 Gbps (up to 2882 Mbps at 5 GHz and up to 688 Mbps at 2.4 GHz), the router offers sufficient capacity for 4K/8K streaming, online gaming, and working from home on multiple devices simultaneously. Wi-Fi 7 technologies, including 4K-QAM, wide channel bandwidth up to 160 MHz, and optimized wireless algorithms, help achieve lower latency and higher efficiency with many connected clients. With support for Cudy Mesh and multi-band backhaul, the system can be combined with other compatible devices to provide seamless roaming coverage throughout the home without signal loss while moving around.

The built-in three Gigabit Ethernet ports allow connection of desktop computers, consoles, TVs, or switches for maximum high-speed wired transfer. The powerful quad-core processor and sufficient RAM and flash memory are designed to handle a large number of active connections and intensive traffic without delays. The router supports WPA/WPA2/WPA3 security, separate guest networks for 2.4 GHz and 5 GHz, as well as advanced parental controls to manage access for different household profiles. VPN client and server capabilities (PPTP, L2TP, OpenVPN, WireGuard, IPsec, Zerotier) are also available, making it a suitable choice for secure remote connections and working with corporate resources.

Management is easy via the Cudy App mobile application and cloud features, allowing quick initial installation, configuration, and remote control of the home network. The compact cylindrical design in neutral colors and desktop mounting allow the router to blend discreetly into any interior without taking up much space. The combination of Wi-Fi 7 performance, Mesh functionality, rich VPN features, and traffic management makes the Cudy M3600 BE3600 especially suitable for large homes, busy home offices, and users who expect maximum reliability from their wireless network.

Technical Specifications

Wireless Network

• Wi-Fi standard: Wi-Fi 7 (802.11be), compatible with 802.11 a/b/g/n/ac/ax/be devices.

• Total wireless speed: up to about 3600 Mbps (up to 2882 Mbps at 5 GHz and up to 688 Mbps at 2.4 GHz).

• Wi-Fi streams: 2×2 MIMO for 2.4 GHz and 2×2 MIMO for 5 GHz (4 streams total).

• Maximum channel width: up to 160 MHz.

• Maximum modulation: 4K-QAM.

• Maximum capacity: up to 512 connected clients, recommended upper limit – about 200 devices.

• Antennas: 4 internal omnidirectional antennas, beamforming support, and advanced Wi-Fi 7 optimizations.

Mesh and Software Features

• Mesh technology: Cudy Mesh, compatible with other Cudy devices.

• Multi-band backhaul: supports multi-band backhaul for a more stable connection between Mesh nodes.

• Seamless roaming: automatic switching between nodes (when additional units are added) without connection drops.

• Operating modes: main router, Mesh node, access point (depending on supported modes in the official software).

• QoS: traffic prioritization with per-device limits.

• Parental controls: profiles, schedules, and content filtering.

• Support for IPv4/IPv6, DHCP server, and IPTV functions with VLAN, IGMP Proxy/Snooping.

Security

• Wi-Fi protection: WPA, WPA2, WPA3.

• Guest networks: separate guest SSIDs for 2.4 GHz and 5 GHz.

• WPS button for quick connection.

• VPN server and client: support for PPTP, L2TP, OpenVPN, WireGuard, IPsec, Zerotier (according to vendor and manufacturer descriptions).

Hardware, Ports, and Power

• Processor: quad-core Broadcom chip optimized for Wi-Fi 7 and Mesh performance.

• Memory: 128 MB flash (1 Gbit) and 512 MB RAM (4 Gbit DDR).

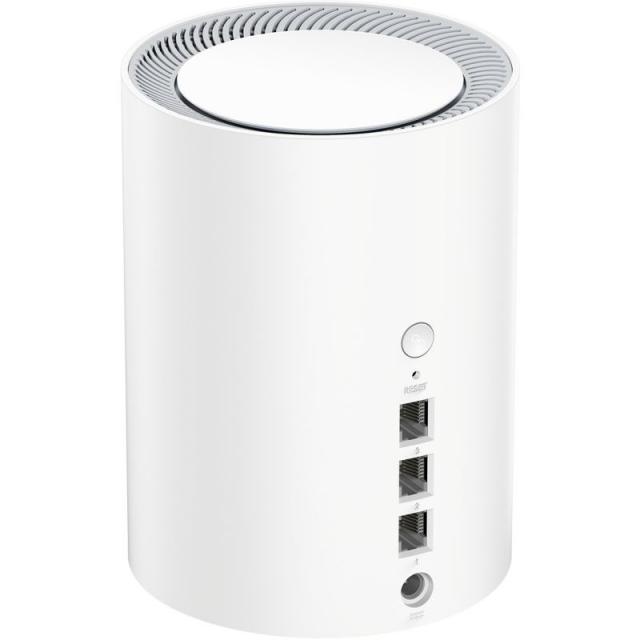

• Ports: 3 × Gigabit Ethernet RJ45 – 1 × WAN port and 2 × LAN ports.

• Power supply: 12V DC, 1A (adapter included).

Physical Parameters

• Dimensions: 110 × 150 × 110 mm (W × H × D)
