A high-performance online UPS for marine and offshore applications, delivering reliable power protection in harsh environments. Featuring true PF 1.0, up to 98% efficiency, DNV certification, and IoT-enabled remote monitoring, it ensures maximum safety, energy efficiency, and operational continuity for critical onboard systems.
- To comply with DNV class, it is necessary to install the filter box.
- To ferfill the required vibration resistance, the vertical stand must be installed.
-
Online UPS for marine and offshore applications
-
Engineered to meet DNV-GL marine requirements
-
True output power factor 1.0 for maximum usable active power
-
High efficiency of up to 98% in ECO mode
-
Designed for harsh environmental conditions (conformal-coated PCBA assemblies)
-
Wide input voltage range of 100–300 VAC
-
Integrated overvoltage protection with automatic mains disconnection (OVCD)
-
125% overload capability for up to 5 minutes
-
IoT-ready with integrated Ethernet interface
-
Suitable for generator operation

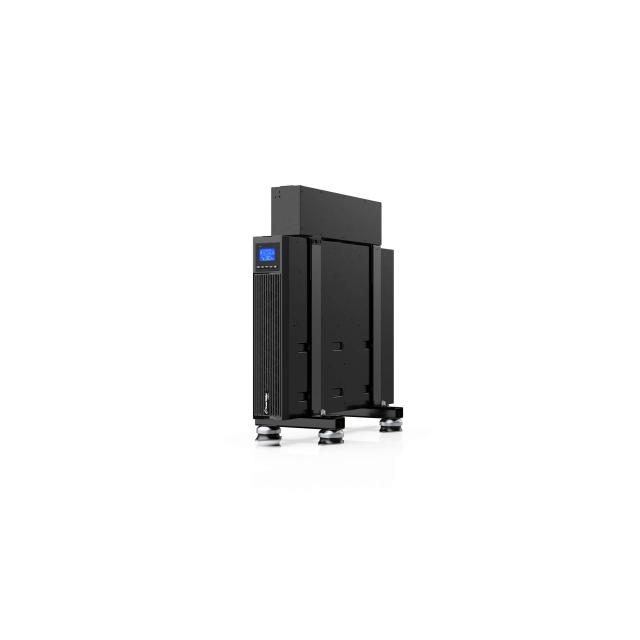

The filter box and vertical stand are optional and are not included in the price and package of the UPS.
| Manufacturer | POWERWALKER |
| Warranty | 24 months |
| Type |
On-line
|
| Input Voltage |
160-300V @100% load 110-160V derating to 50% load linearly
|
| Capacity |
2000 VA/ 2000 W
|
| Nominal Output Voltage |
200/208/220/230/240 VAC
|
| Batteries |
12V/7Ah
|
| Sound Alarm |
Yes
|
| Overload Protection |
Yes
|
| Input Connections |
C14
|
| Output Connections |
8x IEC C13
|
| Front Panel |
LCD
|
| Waveform |
Pure Sine Wave
|
| Number of batteries |
3
|
| External Battery Connection |
Optional Battery Pack
|
| Communication |
Dry contact, RS-232, WLAN Port – for Internet Connection, Management Card Slot, RJ-45 – for Internet Connection
|
| Recharge Time |
3h to 90%
|
| Noise Level |
< 45dB
|
| Frequency Range(Output) |
±0,2Hz (battery mode)
|
| Alarm |
Yes
|
| Dimension |
438 mm x 85.5 mm x 445 mm
|
| Backup Time | |
| Form Factor |
Rack, 2U
|
| DC Voltage | |
| Compatible Battery Type | |
| IEC 62040-3 Classification |
VFI-SS-111
|
| UPS capacity | |
| Software |
Winpower
|
| Type UPS | |
| Weight | 14.300 kg |
