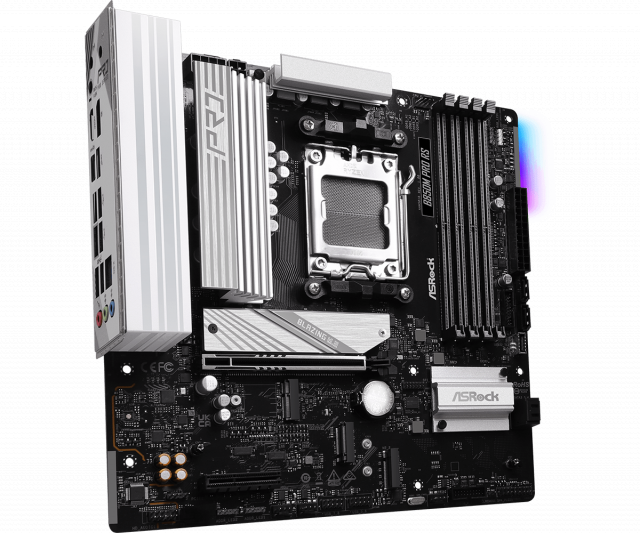

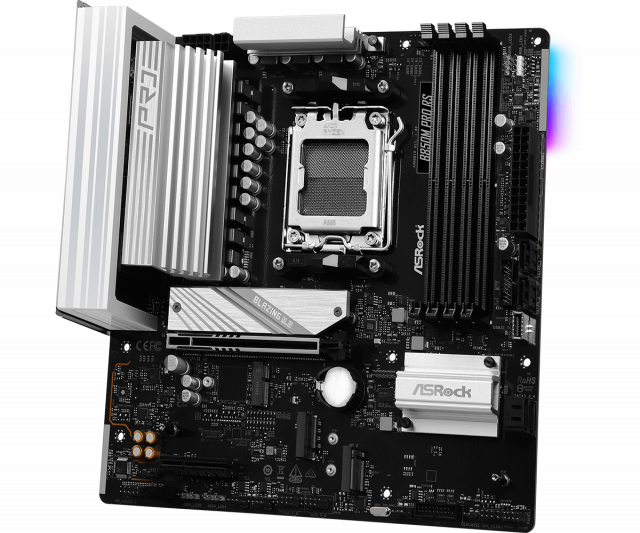

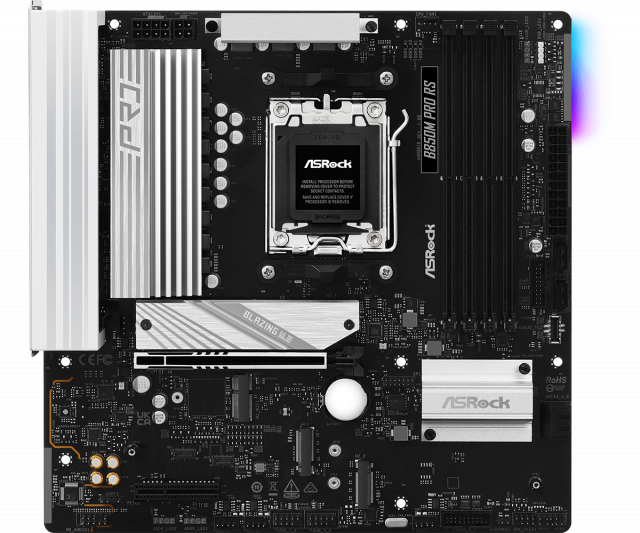

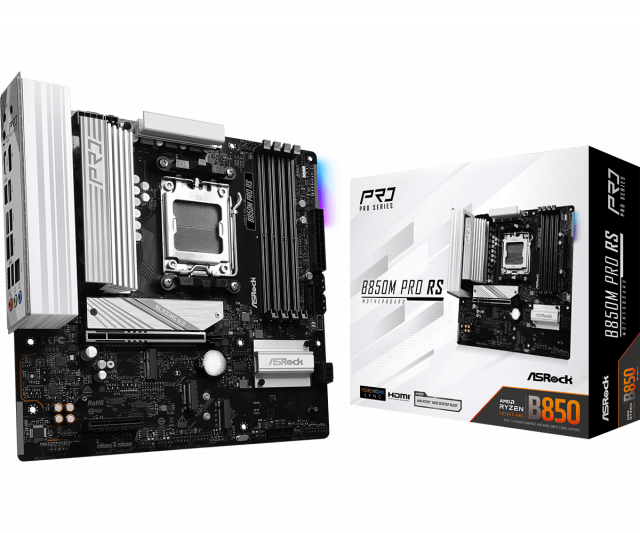

ASRock B850M Pro RS is a Micro-ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket. It offers a reliable balance of performance, efficiency, and connectivity—ideal for gaming, productivity, or compact PC builds.
Key Specifications:
-
Memory: 4 x DDR5 DIMMs, dual-channel, up to 8000+ MHz (OC), max 256 GB
-
Power Design: 8+2+1 phase with Dr.MOS for stable and efficient power delivery
-
Expansion Slots:
-
1 x PCIe 5.0 x16
-
1 x PCIe 4.0 x4
-
-
Storage:
-
1 x Blazing M.2 (PCIe Gen5x4)
-
2 x Hyper M.2 (PCIe Gen4x4)
-
4 x SATA3
-
-
Connectivity:
-
1 x HDMI, 1 x DisplayPort
-
1 x USB 3.2 Gen2 Type-C (rear)
-
1 x USB 3.2 Gen1 Type-C (front)
-
6 x USB 3.2 Gen1, 8 x USB 2.0
-
2.5G Realtek Dragon LAN
-
-
Audio: Realtek ALC897 7.1 HD with Nahimic Audio
-
Form Factor: Micro-ATX (244 x 244 mm)
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B850M PRO RS |
| Barcode | 4711581490345 |
| CPU Socket |
AM5
|
| Chipset |
AMD B850
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8000(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 5.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 | |
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s)
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
|

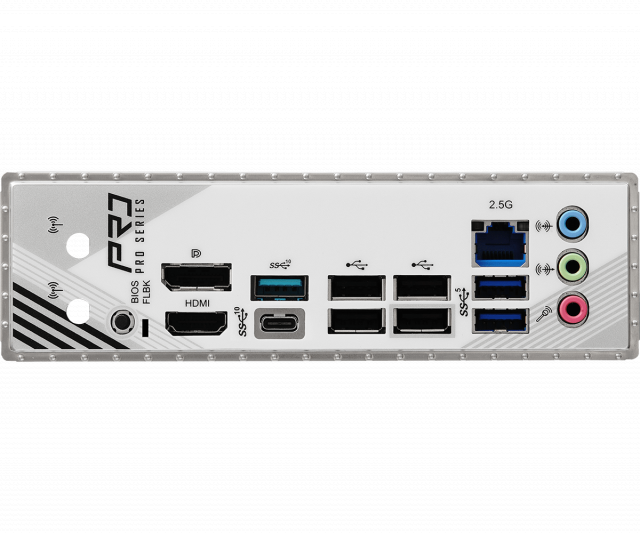

| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
2 x Аudio jacks
1 x BIOS Flashback Button
|
| USB Ports |
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0
1 x USB 10Gbps port Type-A
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other | |
| Weight | 0.984 kg |
