Motherboard ASRock B860 LiveMixer WIFI 6E, LGA 1851
Ref. number: ASR-MB-B860-MIXER-WIFI
limited availability (up to 3)
View availability
Шереметя
София-ул.Марин Русев 6А
Motherboard ASRock B860 LiveMixer WIFI 6E, LGA 1851
limited availability (up to 3)
View availability
Шереметя
София-ул.Марин Русев 6А
Ref. number: ASR-MB-B860-MIXER-WIFI
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy

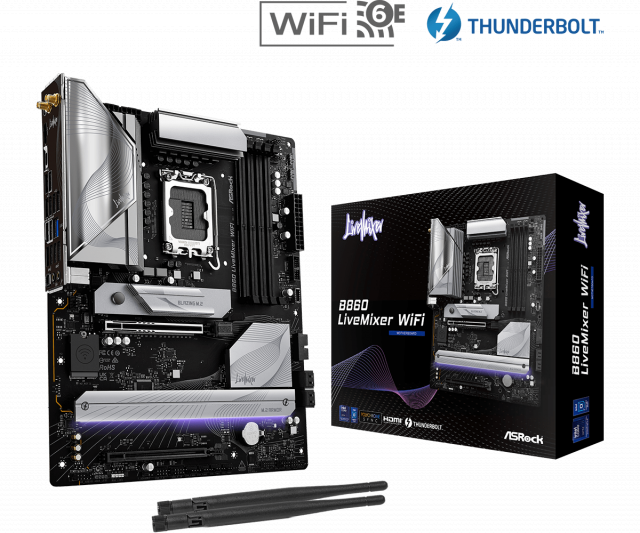

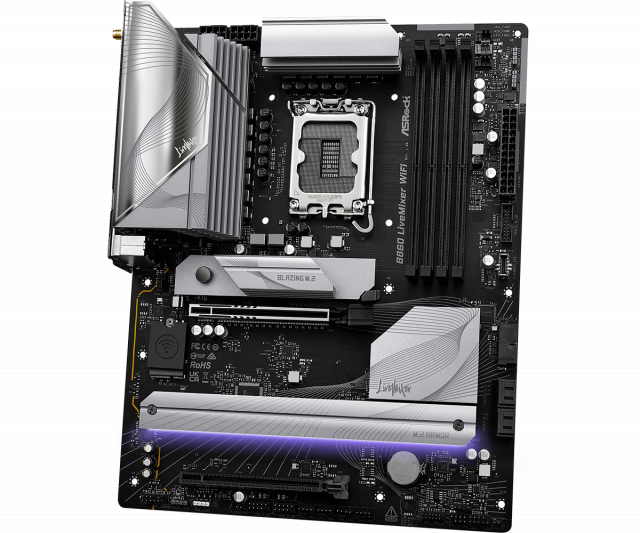

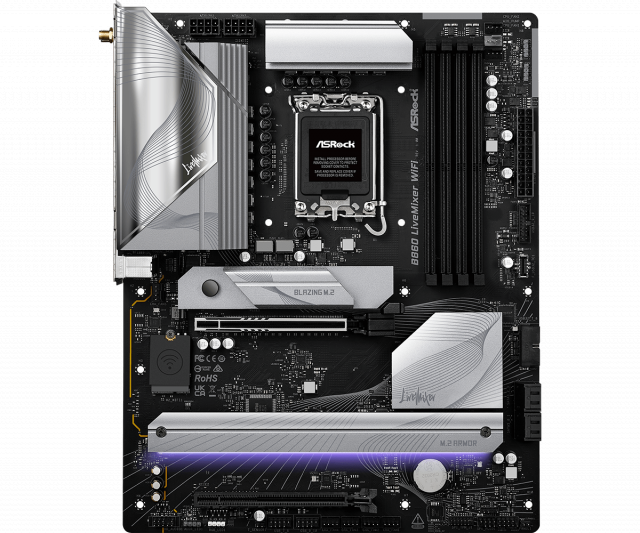

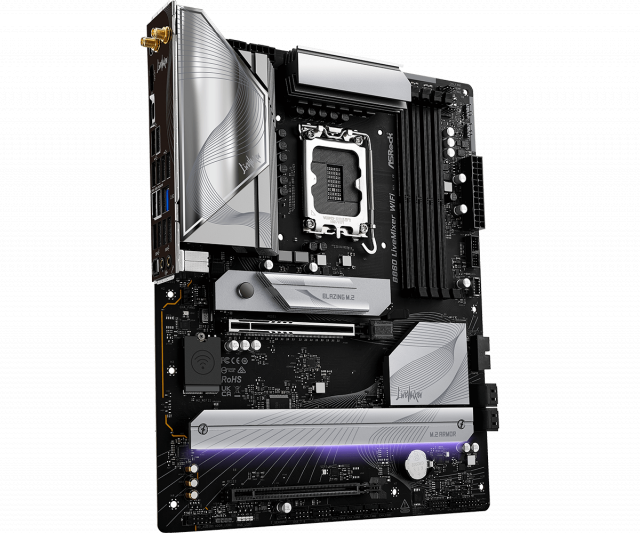

ASRock B860 LiveMixer WIFI 6E, LGA 1851 is a motherboard designed for content creators and gamers, offering extensive connectivity and reliable performance.
Key Features:
- Supports Intel Core Ultra (Series 2) processors on LGA 1851 socket.
- DDR5 memory support – up to 8666+ MHz (OC), 4 DIMMs, max capacity 256GB.
- PCIe 5.0 x16 slot for next-gen graphics cards.
- 4 M.2 slots (1x PCIe Gen5x4, 3x PCIe Gen4x4) for ultra-fast SSDs.
- Integrated Wi-Fi 6E and Bluetooth 5.3 for high-speed wireless connectivity.
- 2.5G Realtek Dragon LAN for stable and fast networking.
- HD 7.1 Audio with Realtek ALC1220 codec for premium sound experience.
This motherboard is perfect for streaming, gaming, and multitasking, supporting the latest technologies.
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B860 LIVEMIXER WIFI |
| Barcode | 4711581490147 |
| CPU Socket |
1851
|
| Chipset |
Intel B860
|
| CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
|
| Integrated Wi-Fi |
802.11ax Wi-Fi 6E
Bluetooth 5.3
|
| PCI-E x16 |
1 x PCIe 4.0 x16
1 x PCIe 5.0 x16 slot
|
| PCI Express x4 | |
| PCI-E x1 | |
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s)
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
|

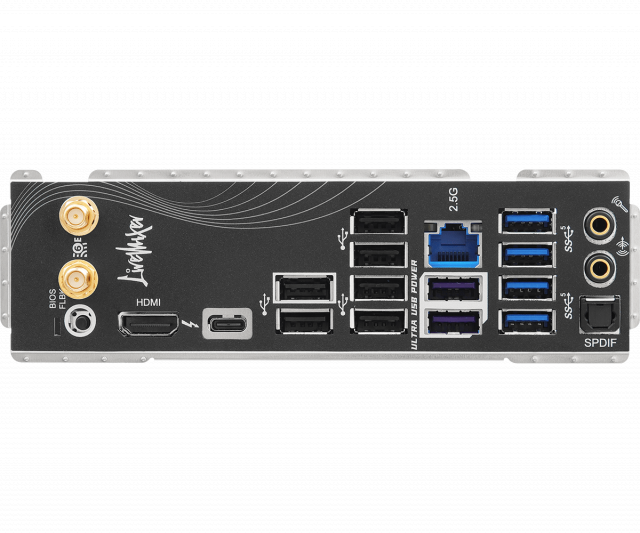

| Connectors |
1 x HDMI port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
|
| USB Ports |
6 x USB 3.2 Gen 1
6 x USB 2.0
1 x USB4 port Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 0.604 kg |
