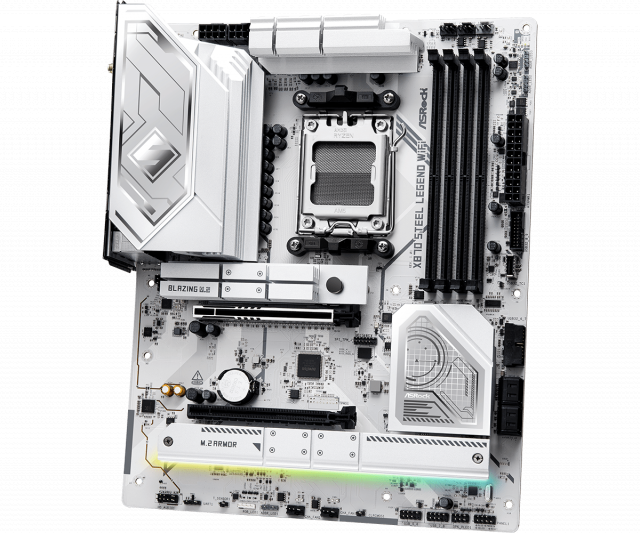

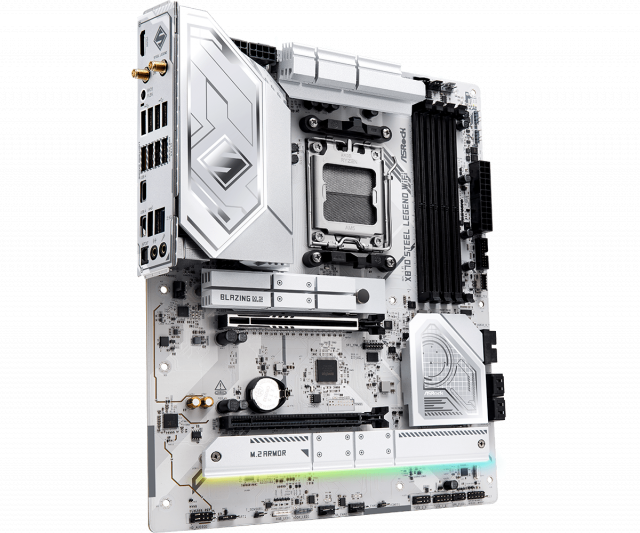

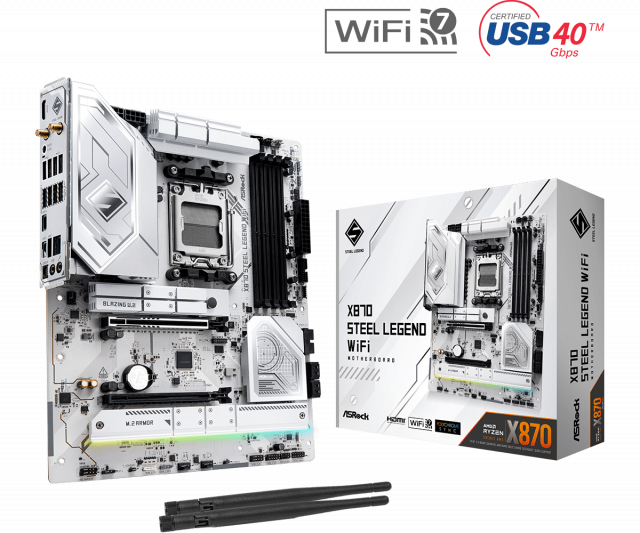

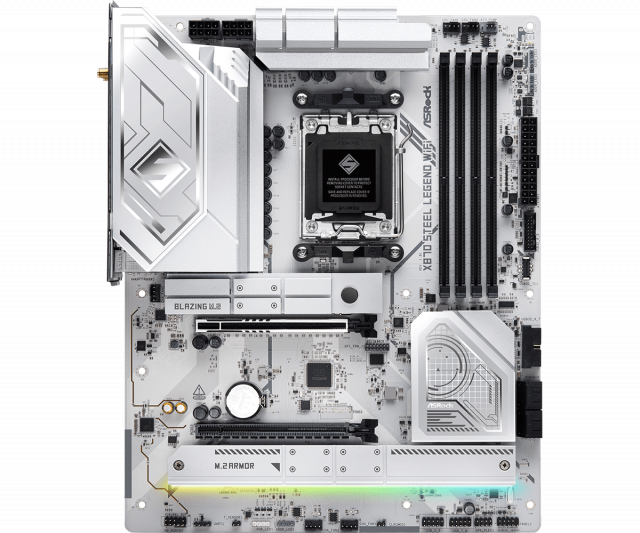

The ASRock X870 Steel Legend WiFi is a high-performance motherboard, designed for AM5 socket, offering solid durability and advanced specifications for gaming and productivity.
- AMD X870 Chipset – Supports AMD Ryzen™ 9000, 8000, and 7000 Series, delivering maximum performance.
- Robust 14+2+1 phase VRM – 80A Dr.MOS for stable power delivery and excellent overclocking capabilities.
- DDR5 Support – Up to 256GB RAM, with frequencies up to 8000+ MHz (OC) for extreme speeds.
- Advanced PCIe Slots – 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, ensuring extensive compatibility for graphics cards and other components.
- Ultra-fast storage – 1x Blazing M.2 (PCIe Gen5x4) and 2x Hyper M.2 (PCIe Gen4x4) for high-speed SSDs.
- Premium connectivity – Wi-Fi 7, Realtek 2.5G LAN, USB4 Type-C, HDMI, and SATA III ports.
- High-quality audio – Realtek ALC4082 7.1 CH HD Audio Codec with Nahimic Audio for immersive sound experience.
- DIY-friendly design – Premium PCB, XXL heatsinks for M.2, BIOS Flashback, EZ Setting, and ARGB splitter for maximum customization.
This motherboard is perfect for high-end gaming, video editing, and intensive workloads!
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | X870 STEEL LEGEND WIFI |
| Barcode | 4710483949340 |
| CPU Socket |
AM5
|
| Chipset |
AMD X870
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8000(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 Channel HD Audio (Realtek ALC4082 Audio Codec)
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
|
| Integrated Wi-Fi |
2x2 Wi-Fi 7 (802.11be)
Bluetooth v5.4
|
| PCI-E x16 |
1 x PCIe 4.0 x16
1 x PCIe 5.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector
2 x 8-pin +12V Power connector
|

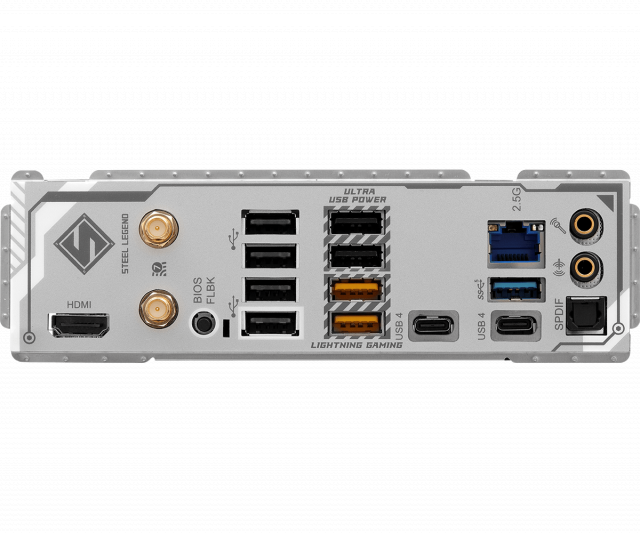

| Connectors |
1 x HDMI port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
|
| USB Ports |
2 x USB 3.2 Gen1
3 x USB 3.2 Gen 2
2 x USB4 40Gbps ports Type-C
2 x USB4 ports Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 1.405 kg |
