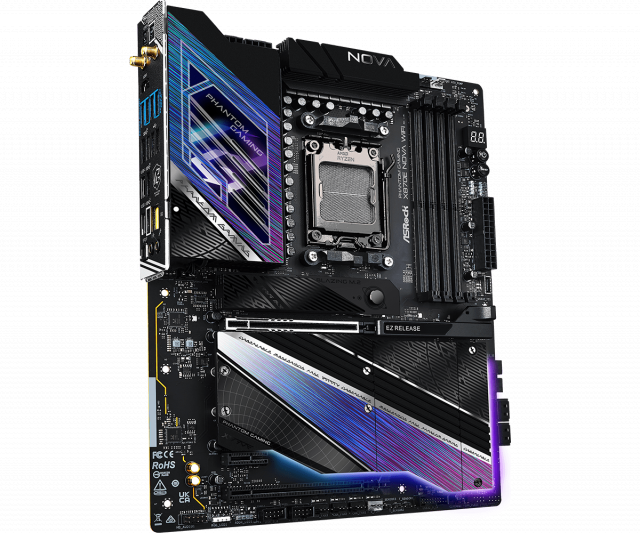

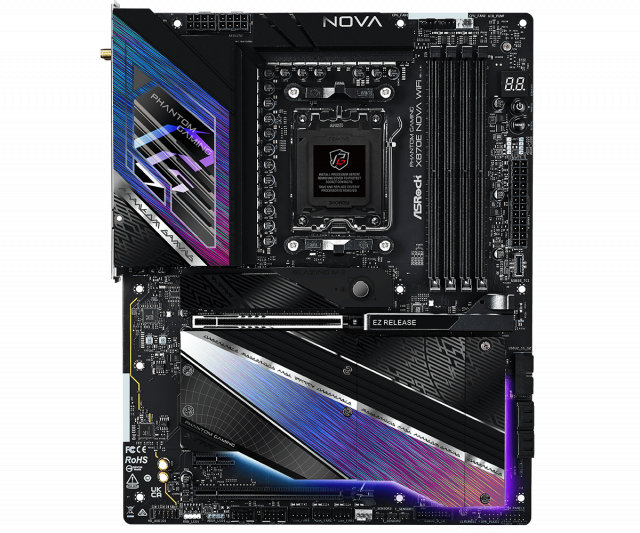

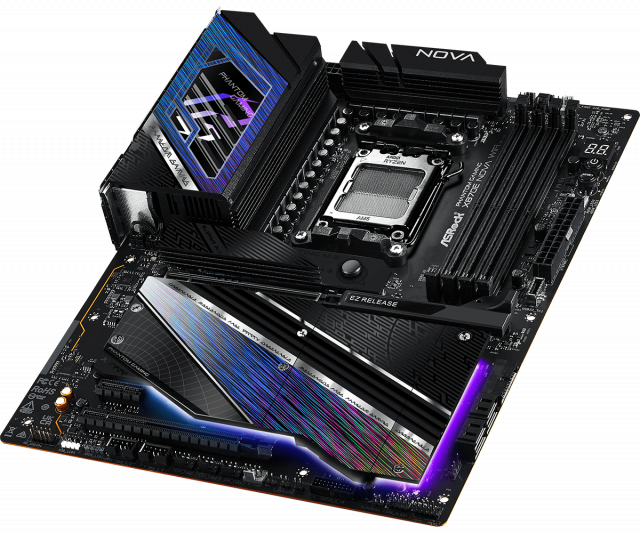

ASROCK X870E PG NOVA WIFI is a high-end motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket, ideal for enthusiasts and gamers seeking extreme performance and next-gen connectivity.
Key Features:
-
DDR5 memory support up to 8200 MHz (OC), with 4 DIMM slots, max capacity 256 GB.
-
1 PCIe 5.0 x16 slot for next-gen graphics cards.
-
4 M.2 slots: 1x Blazing M.2 (PCIe Gen5x4) and 3x Hyper M.2 (PCIe Gen4x4) for ultra-fast SSDs.
-
Wi-Fi 7 (802.11be) and Bluetooth 5.4 for high-speed wireless connectivity.
-
5G Realtek LAN for fast and stable networking.
-
5.1 HD Audio with Realtek ALC4082 codec for crystal-clear sound.
-
USB4 Type-C, USB 3.2 Gen1, USB 2.0, and various audio ports for extended connectivity.
-
Robust 8-layer PCB design with premium components for stability and efficient overclocking.
Perfect for building a next-gen gaming rig or workstation.
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | X870E NOVA WIFI |
| Barcode | 4710483949654 |
| CPU Socket |
AM5
|
| Chipset |
AMD X870E
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8200(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
5.1 Channel HD Audio (Realtek ALC4082 Audio Codec)
|
| Integrated LAN |
5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
|
| Integrated Wi-Fi |
2x2 Wi-Fi 7 (802.11be)
Bluetooth v5.4
|
| PCI-E x16 |
1 x PCIe 5.0 x16 slot
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
2 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
3 x Hyper M.2 Socket (M2_2,3,4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector
2 x 8-pin +12V Power connector
|

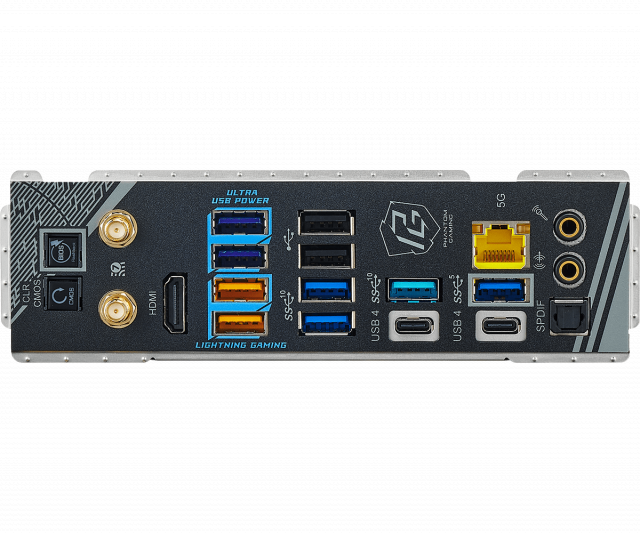

| Connectors |
1 x HDMI port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
1 x Clear CMOS button
|
| USB Ports |
3 x USB 3.2 Gen 1
2 x USB 2.0
5 x USB 10Gbps ports Type-A
2 x USB4 40Gbps ports Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 3.330 kg |
