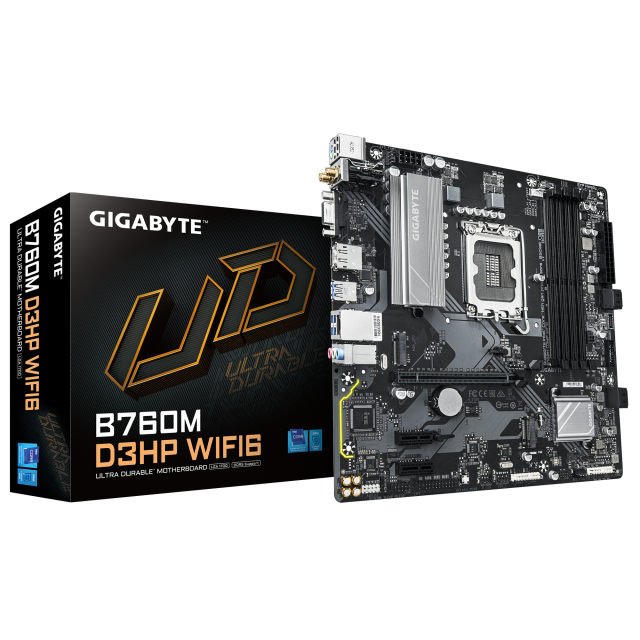

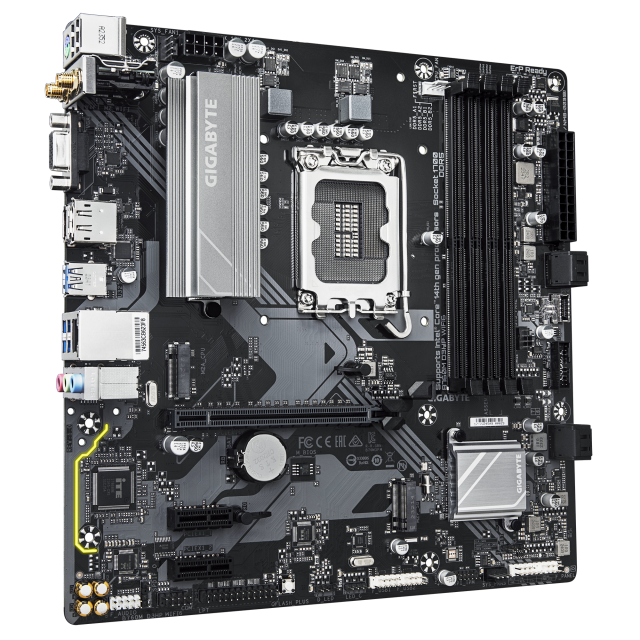

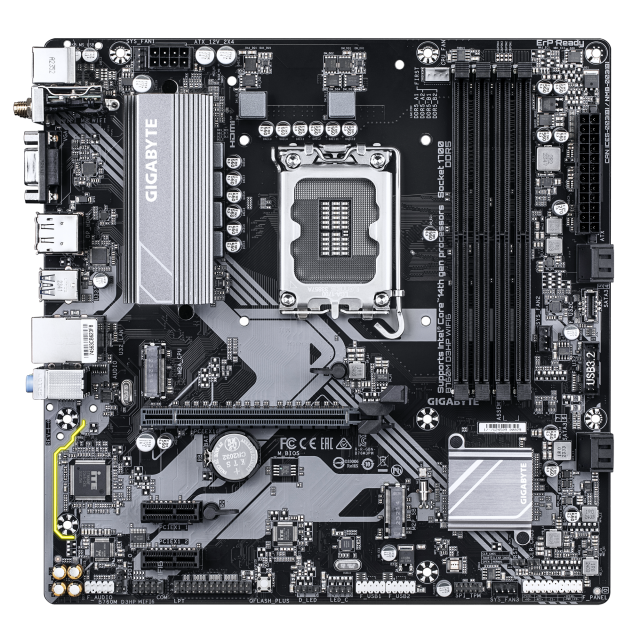

Motherboard GIGABYTE B760M D3HP WIFI6 DDR5, socket 1700, mATX
Ref. number: GA-MB-B760M-D3HP-WF6
available
View availability
Шереметя
Motherboard GIGABYTE B760M D3HP WIFI6 DDR5, socket 1700, mATX
available
View availability
Шереметя
Ref. number: GA-MB-B760M-D3HP-WF6
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
B760M D3HP WIFI6
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks：GbE LAN & Wi-Fi 6 802.11ax
- Extended Connectivity：Front USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | B760M D3HP WIFI6 |
| Barcode | 4719331867638 |
| CPU Socket |
1700
|
| Chipset |
Intel B760
|
| CPU supports |
12th Generation Intel
13th Generation Intel
14th Generation Intel
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
5600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
10/100/1000 Mbps
|
| Integrated Wi-Fi |
Wi-Fi 6
Bluetooth 5.3
|
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
2
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|

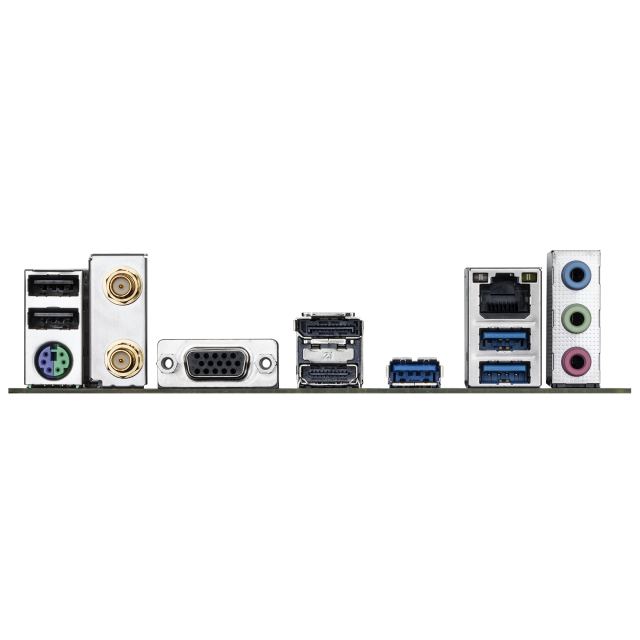

| Connectors |
1 x VGA
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
|
| USB Ports |
3 x USB 3.2 Gen 1
2 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other | |
| Weight | 1.120 kg |
