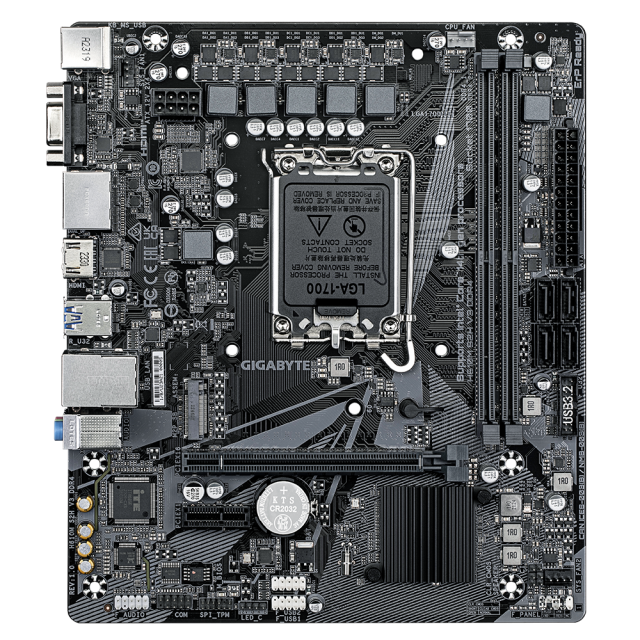

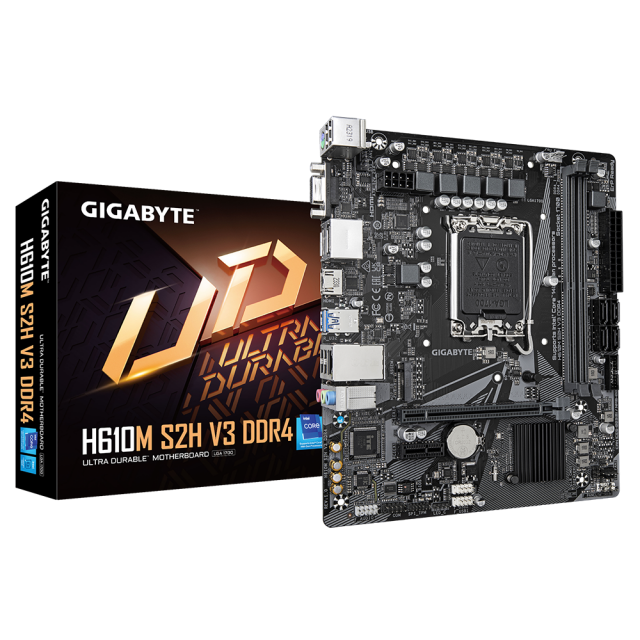

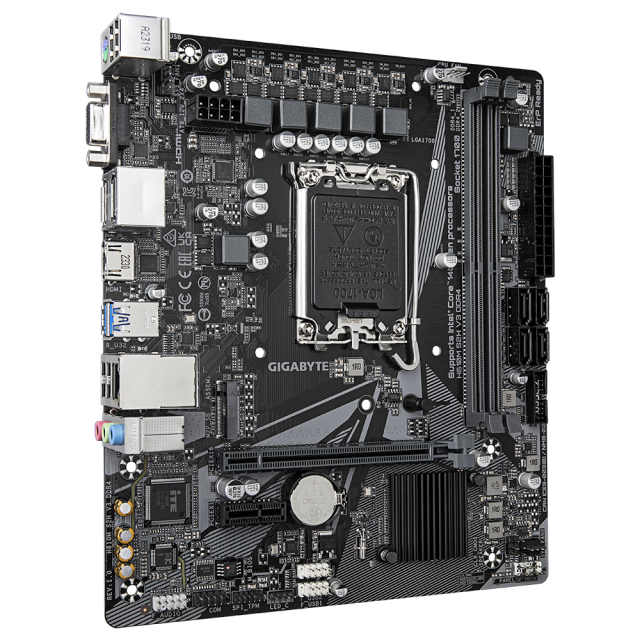

Motherboard GIGABYTE H610M-S2H V3 DDR4, socket 1700, Micro ATX
Ref. number: GA-MB-H610M-S2H-V3
not available
View availability
Няма наличност
Motherboard GIGABYTE H610M-S2H V3 DDR4, socket 1700, Micro ATX
not available
View availability
Няма наличност
Ref. number: GA-MB-H610M-S2H-V3
Client
w/ VAT
w/ VAT
Fast and secure delivery
14 day return policy
Motherboard GIGABYTE H610M-S2H, socket 1700, 2xDDR4, Micro ATX
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | H610M S2H V3 DDR4 |
| Barcode | 4719331859732 |
| CPU Socket |
1700
|
| Chipset |
Intel H610
|
| CPU supports |
12th Generation Intel
13th Generation Intel
14th Generation Intel
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
64 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
3200 MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
1 x Realtek 1Gb Ethernet port
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
|
| Raid support | |
| Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|

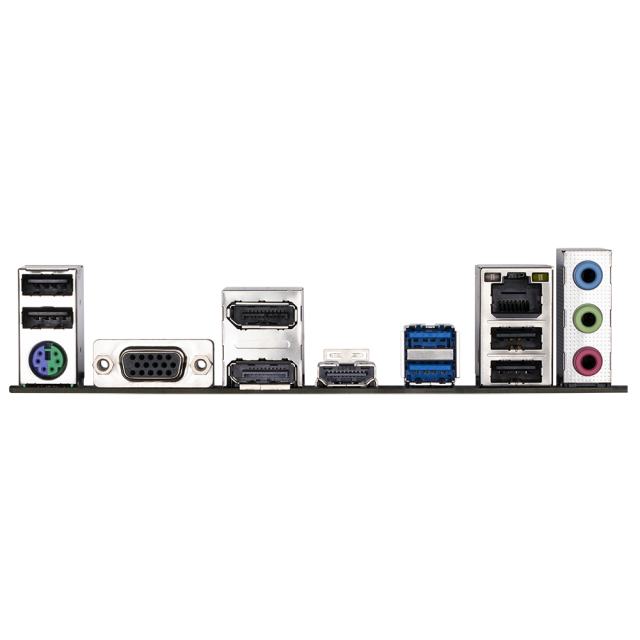

| Connectors |
1 x VGA
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x PS/2 Keyboard
1 x PS/2 Mouse
3 x Audio jacks
|
| USB Ports |
2 x USB 3.2 Gen1
4 x USB 2.0
|
| Dimension |
Micro ATX - 22.3 x 19.3 cm
|
| Other | |
| Weight | 0.800 kg |
