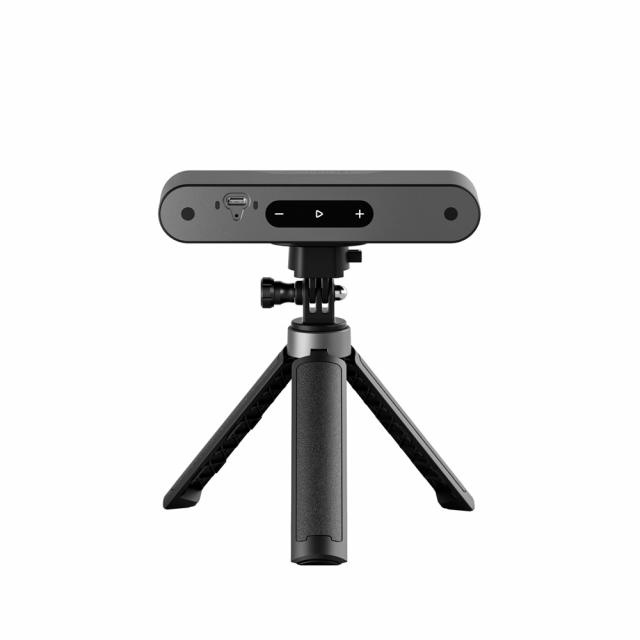

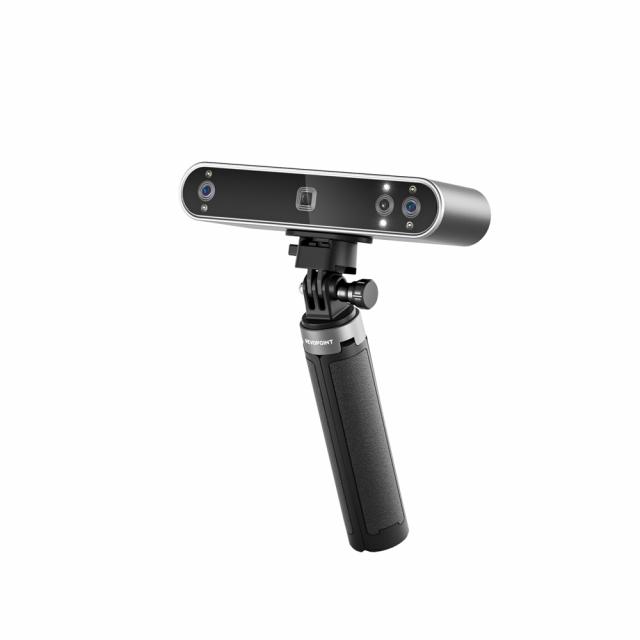

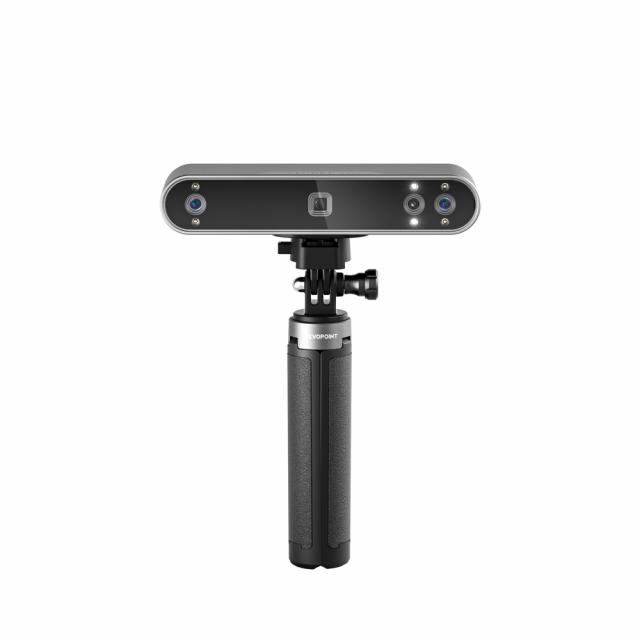

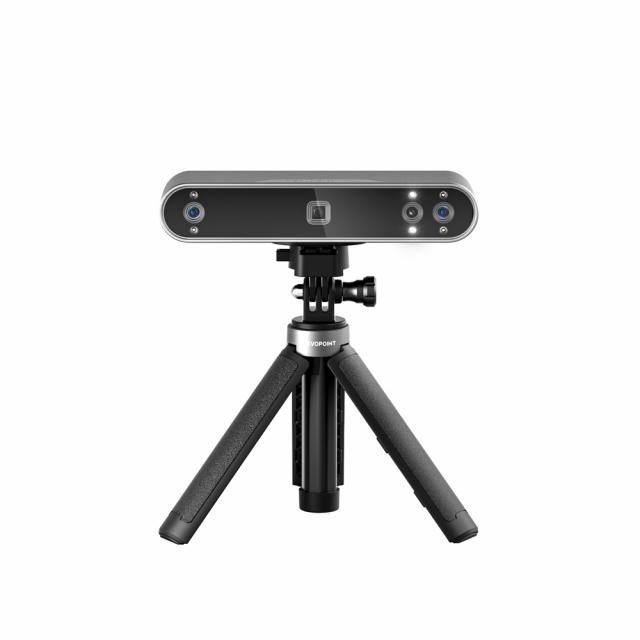

3D scanner Revopoint Pop 3 Plus Standard Edition

Revopoint POP 3 Plus – Standard Edition
Portable, precise, next-generation 3D scanner for professionals and advanced users

The Revopoint POP 3 Plus Standard Edition is a compact, lightweight, and high-precision next-generation 3D scanner designed for fast and easy digitization of real-world objects. Thanks to its advanced optics and improved accuracy, it is ideal for 3D printing, reverse engineering, automotive modifications, product visualization, art, and digital archiving.

Key Advantages

• Up to 20% better accuracy and precision compared to POP 3 – achieved through a new glass calibration board and optimized optical module.

• Up to 30% more detail in the point cloud – finer geometry, richer surface relief, and more clearly defined edges.

• New optical projector with up to 2x optical zoom – stronger, focused structured light for capturing micro-details.

• Global Marker Tracking Mode – more stable marker tracking and more precise merging of scans for large or complex objects.

• Built-in HD RGB camera + flash LED lighting – realistic colors and full-color 3D models.

• Anti-shake stabilization with 9-axis IMU – skips defective frames, smoother stitching, and more reliable results.

• Lightweight and compact body – only 190 g – convenient for mobile scanning and handheld use.

• Intuitive physical buttons – control exposure and start/pause scanning directly from the scanner.

• Powerful and easy-to-use software – compatible with iOS, Android, Windows, and macOS.

• Wide compatibility with 3D formats – STL, PLY, OBJ, ASC, 3MF, GLTF, FBX for CAD, 3D modeling, and slicer applications.

How POP 3 Plus Works

Step 1: Preparation
Connect the POP 3 Plus to a computer or mobile device. Position the object and, if needed, place markers for more stable tracking.

Step 2: Scanning
The scanner projects structured light, while cameras and sensors capture the geometry. You control exposure and start/pause scanning using the physical buttons.

Step 3: Processing
The software automatically aligns frames, uses Global Marker Tracking and anti-shake stabilization, filters out faulty frames, and builds the point cloud and 3D mesh.

Step 4: Export
Clean and optimize the model, then export it in your preferred format for 3D printing, design, visualization, or reverse engineering.

Applications

3D Printing and Prototyping
POP 3 Plus allows fast conversion of real objects into accurate 3D models – ideal for custom parts, adapters, enclosures, prototypes, and functional components.

Reverse Engineering and Modifications
The scanner is excellent for automotive parts, mechanical components, and products that need to be redesigned, adapted, or precisely fitted into new constructions.

Digital Archiving and Visualization
Create high-quality 3D models of art objects, souvenirs, collectibles, and exhibits for online catalogs, AR/VR, games, and CGI.

Education and R&D
Suitable for universities, laboratories, and training centers for demonstrating 3D digitization, model processing, and 3D printing.

Technical Specifications

• Technology: Dual-camera infrared structured light

• Scan Volume: Minimum: 20 × 20 × 20 mm; Maximum: 2 × 2 × 2 m

• Single Capture Area:

  • Closest distance: 61 × 68 mm at 150 mm

  • Farthest distance: 244 × 180 mm at 400 mm

• Working Distance: 150 – 400 mm

• Single-frame Precision: up to 0.04 mm

• Single-frame Accuracy: up to 0.08 mm

• Point Distance (fused point distance): up to 0.05 mm

• Scanning Speed: up to 18 fps

• Texture & Color: Yes

• Connectivity: USB Type-C, Bluetooth 4.1, WiFi 6

• Turntable: Small turntable included

• Dimensions: Scanner: 153 × 45 × 29 mm

• Weight: Scanner: 190 g

• Output Formats: STL, OBJ, PLY

• Software: Included

• Compatible Systems: Windows 10/11 (64-bit), Android, iOS, macOS 11 or newer

System Requirements – Windows

Minimum Requirements

• CPU: Intel i5 12th generation or newer

• RAM: ≥ 8 GB

• Connectivity: USB 3.0 or better, or WLAN

Recommended Requirements

• CPU: Intel i7 or better

• RAM: ≥ 16 GB

• Connectivity: USB 3.0 or better, or WLAN

System Requirements – macOS

Minimum Requirements

• CPU: Apple M1 Pro or better

• RAM: ≥ 8 GB

• Connectivity: Thunderbolt 4 or better, or WLAN

Recommended Requirements

• CPU: Apple M1 Pro or better

• RAM: ≥ 16 GB

• Connectivity: Thunderbolt 4 or better, or WLAN
