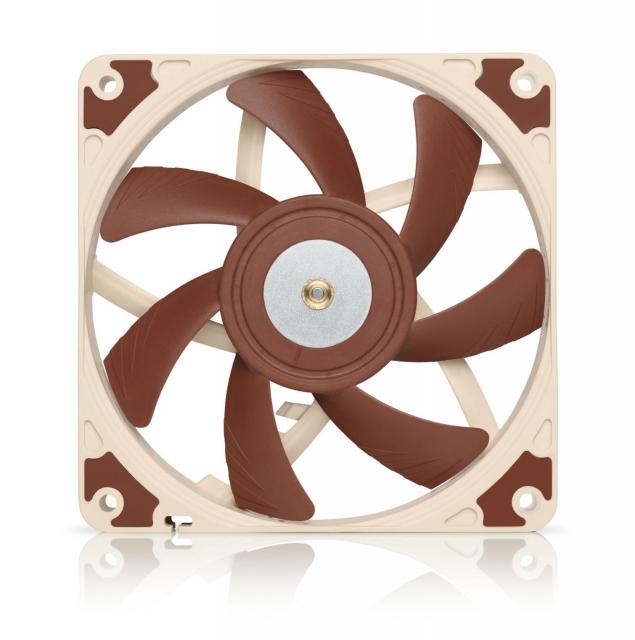

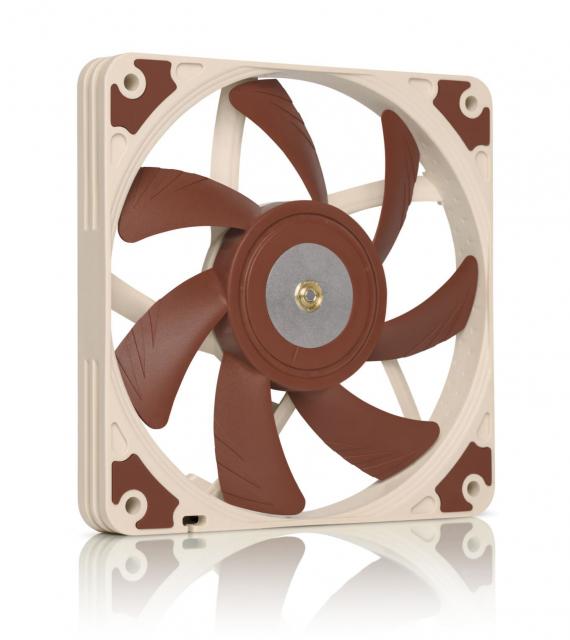

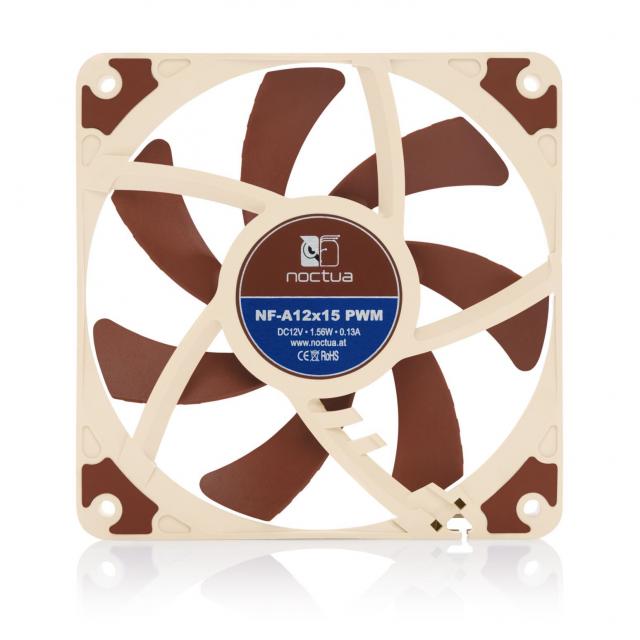

Fan Noctua NF-A12x15 PWM, 120 mm
Ref. number: NOCTUA-FAN-NF-A12X15-PWM
available
View availability
Шереметя
София-ул.Марин Русев 6А
Fan Noctua NF-A12x15 PWM, 120 mm
available
View availability
Шереметя
София-ул.Марин Русев 6А
Ref. number: NOCTUA-FAN-NF-A12X15-PWM
Client
w/ VAT
w/ VAT
Fast and secure delivery
14 day return policy
Size: 120x120x15 mm
Mounting hole spacing: 105x105 mm
Connector & pin-configuration: 4-pin PWM

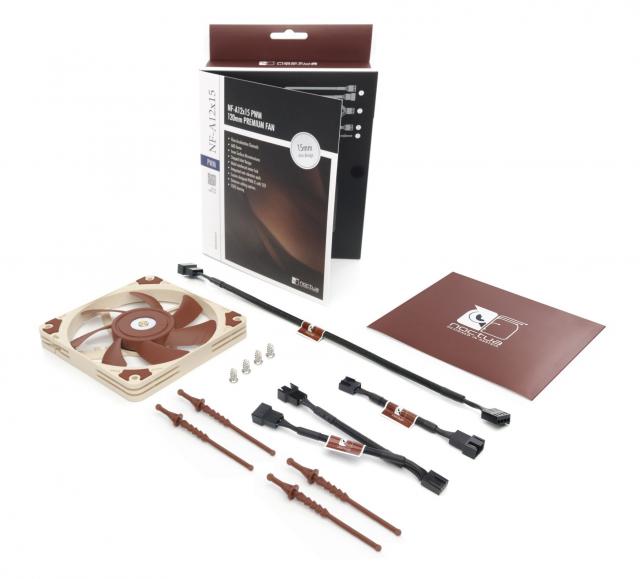

Cable length: 20cm + 30cm NA-EC1 extension cable
Bearing: SSO2
Blade geometry: A-Series with Flow Acceleration Channels
Rotational speed (+/- 10%): 1850 RPM
Rotational speed with L.N.A. (+/- 10%): 1400 RPM
Min. rotational speed (PWM, +/-20%): 450 RPM
Airflow: 94.2 m³/h
Airflow with L.N.A.: 70.8 m³/h
Acoustical noise: 23.9 dB(A)
Acoustical noise with L.N.A.: 16.8 dB(A)
Max. input power: 1.56 W
Max. input current: 0.13 A
Operating voltage: 12 V
MTTF: > 150.000 h
| Manufacturer | Noctua |
| Warranty | 72 months |
| Product code | NF-A12x15-PWM |
| Barcode | 9010018100082 |
| Application |
Cooler box
|
| Dimension |
120
|
| Speed fan |
1400/1850 RPM
|
| Connector |
4-Pin (PWM)
|
| Noise Level |
16.8/23.9 dB(A)
|
| CFM |
55
|
| Other | |
| Weight | 0.280 kg |
