HUION /Huiyan/ Graphic display tablet Kamvas 16 GEN3 /without stand/, GS1563

Huion Kamvas 16 Gen 3 (GS1563) – a modern tablet suitable for illustrators, designers, and digital artists.

 Display

• Screen size: 15.8 inches (QHD)

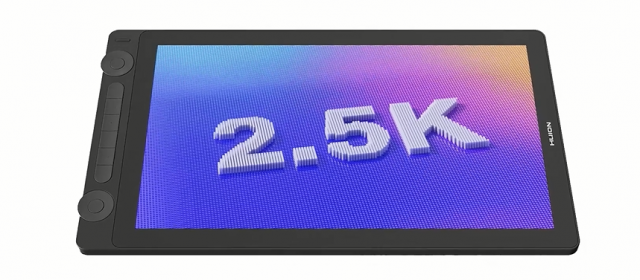

• Resolution: 2560 × 1440 pixels (16:9)

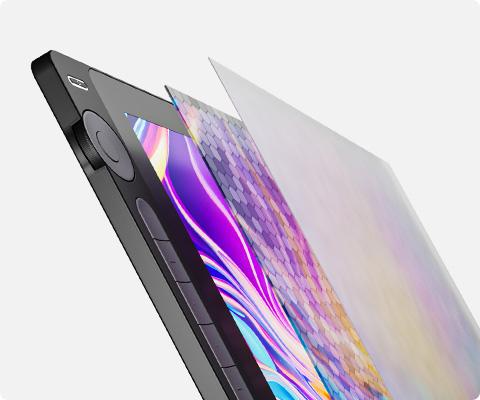

• Panel type: IPS, fully laminated

• Brightness: 220 cd/m²

• Contrast ratio: 1000:1

• Color gamut: 99% sRGB, 90% Adobe RGB, 99% Rec.709

• Colors: 16.7 million (8-bit)

• Viewing angles: 89° horizontal / vertical

• Surface coating: Nano-etched anti-glare Canvas Glass – mimics the texture of paper

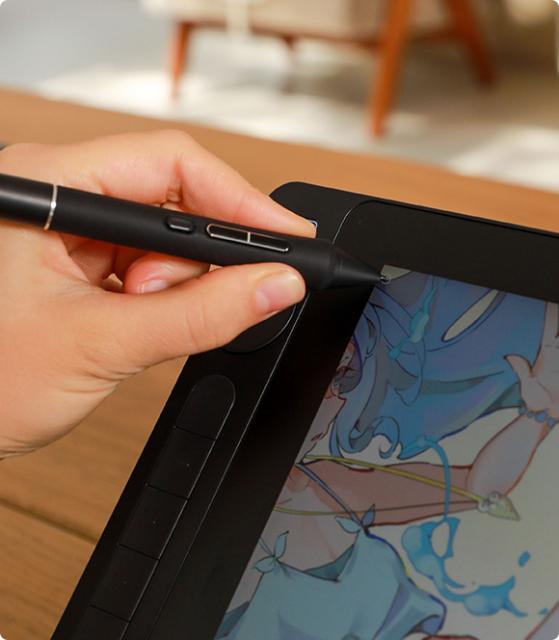

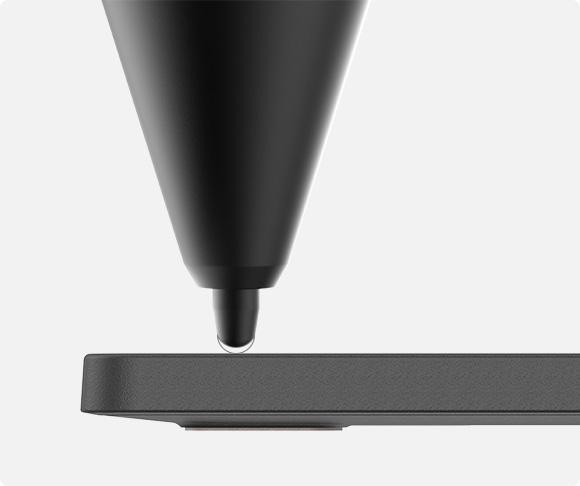

 Stylus (PW600L – PenTech 4.0)

• Pressure sensitivity: 16,384 levels

• Tilt: ±60°

• Resolution: 5080 LPI

• Hover height: 10 mm

• Technology: Battery-free electromagnetic resonance

• Report rate: >260 PPS

• Accuracy: ±0.3 mm (center), ±2 mm (edges)

 Controls and Connectivity

• Button controls: 6 programmable buttons + 2 rotating dials

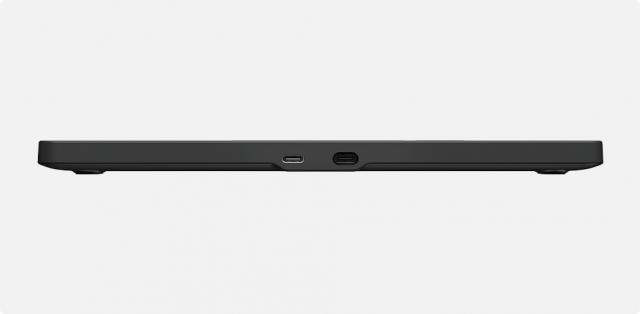

• Interfaces: USB-C (full function), 3-in-1 cable

• Compatibility: Windows 7+, macOS 10.12+, Linux (Ubuntu 20.04 LTS), Android (USB 3.1 DP1.2)

 Dimensions and Other Features

• Active area: 13.8 × 7.8 inches (350 × 197 mm)

• Device size: 421.2 × 236.81 × 12.62 mm

• Weight: 1.245 kg

• Power consumption: ≤7W

• Operating temperature: 0–40°C
