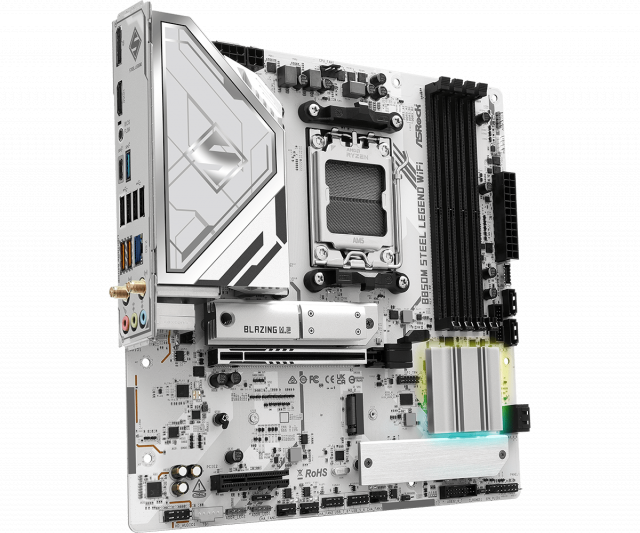

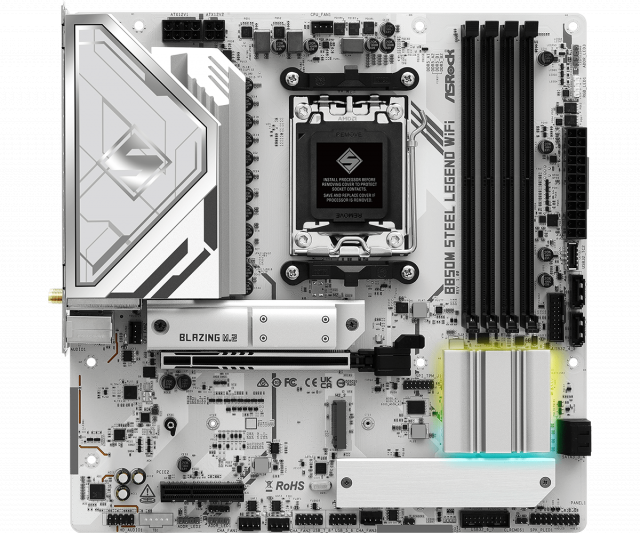

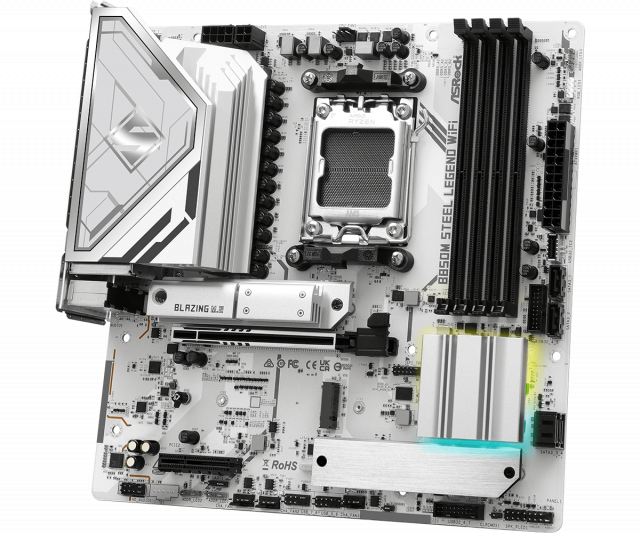

A compact and feature‑rich Micro‑ATX motherboard for AMD AM5 builds, the ASRock B850M Steel Legend WiFi7 combines strong power delivery, PCIe Gen5 support, fast DDR5 memory compatibility, and next‑generation wireless connectivity. Its white‑themed Steel Legend design makes it an excellent choice for stylish, efficient, and future‑ready systems.
- CPU Support – Designed for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 socket, offering broad upgrade flexibility.
- Memory – Supports DDR5 with speeds up to 8000+ (OC) across 4 DIMM slots for high‑performance configurations.
- Power Design – 12+2+1 VRM layout delivering stable power for mainstream gaming and productivity workloads.
- Expansion – Includes PCIe 5.0 x16 for next‑gen GPUs and additional PCIe slots for expansion cards.
- Storage – Equipped with 3 M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2) plus 4 SATA ports for versatile storage setups.
- Connectivity – Features WiFi 7, Bluetooth 5.4, and 2.5GbE LAN for ultra‑fast networking.
- USB Options – Offers a solid selection of USB ports including high‑speed USB 3.2 for modern peripherals.
- Audio – Uses the Realtek ALC1220 codec for clear, high‑quality sound output.
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B850M STEEL LEGEND WIFI |
| Barcode | 4711581490499 |
| CPU Socket |
AM5
|
| Chipset |
AMD B850
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8000(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
|
| Integrated Wi-Fi |
Bluetooth v5.4
Intel® Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 5.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 | |
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s)
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4
1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
|

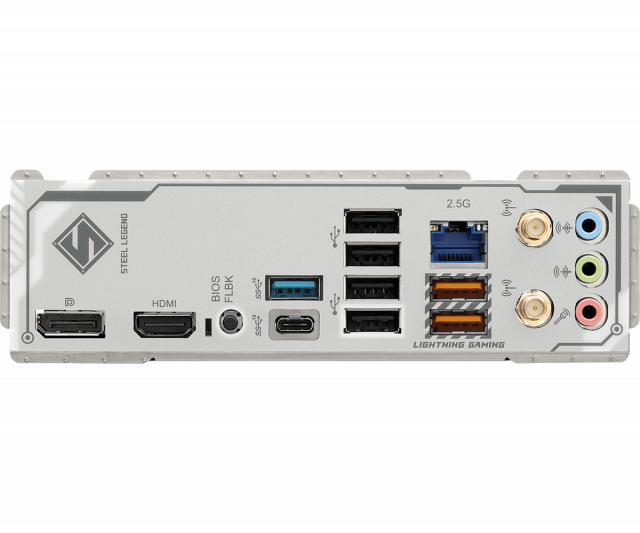

| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
|
| USB Ports |
2 x USB 3.2 Gen1
4 x USB 2.0
1 x USB 10Gbps port Type-A
1 x USB 10Gbps ports Type-C
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other | |
| Weight | 0.950 kg |
