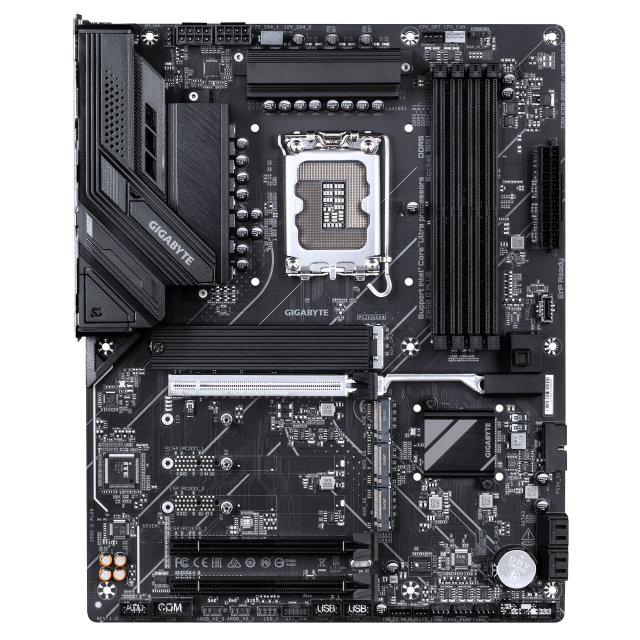

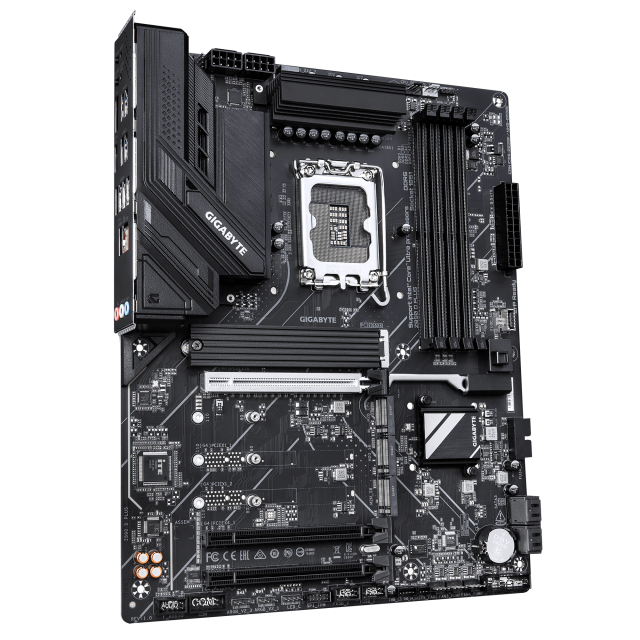

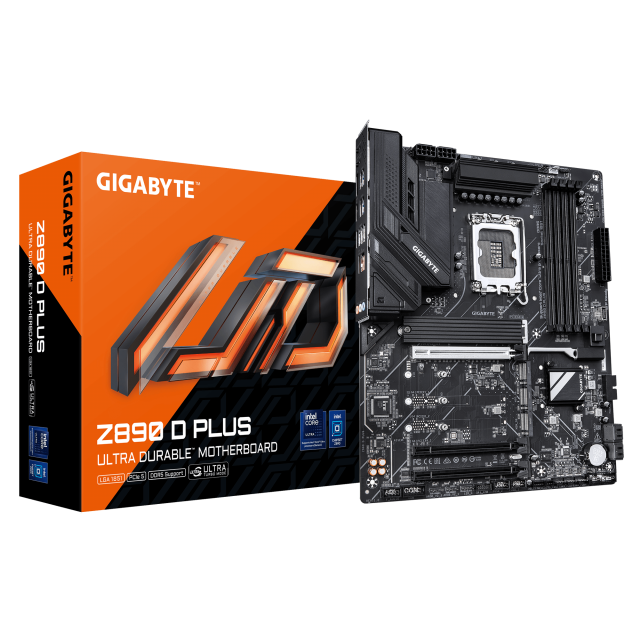

Motherboard GIGABYTE Z890 D PLUS, LGA 1851
Ref. number: GA-MB-Z890-D-PLUS
available
View availability
Шереметя
Motherboard GIGABYTE Z890 D PLUS, LGA 1851
available
View availability
Шереметя
Ref. number: GA-MB-Z890-D-PLUS
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
The GIGABYTE Z890 D PLUS is an advanced ATX motherboard powered by the Intel Z890 chipset, expertly engineered to unlock the full potential of Intel Core Ultra (Series 2) processors on the LGA 1851 socket. It provides a phenomenal foundation for high-performance builds through robust digital power delivery, blazing-fast DDR5 memory overclocking capabilities, bleeding-edge PCIe 5.0 connectivity, and intelligent AI-driven circuit optimization for supreme stability and efficiency.
-
Processor Compatibility: Intel LGA 1851 Socket Support built specifically to handle the latest Intel Core Ultra processors with precision and seamless integration.
-
Power Delivery: 12+1+2 Phase Twin Digital VRM Design utilizing premium chokes, capacitors, and a dual 8-pin CPU solid pin power connector to guarantee rock-solid stability under heavy loads.
-
Memory Performance: High-Speed DDR5 and CUDIMM Support featuring four dual-channel slots capable of reaching blistering speeds exceeding 9466+ MT/s (OC) for elite bandwidth and responsiveness.
-
Signal Engineering: AI-ViaFusion and AI-Trace Technology leveraging machine learning layouts and precision impedance matching to significantly minimize signal loss and maximize high-speed transmission.
-
Expansion Capabilities: PCIe 5.0 x16 UD Slot equipped with a durable metal shielding structure and a user-friendly screwless quick-release design to securely host heavy modern graphics cards.
-
Storage Options: Quad M.2 Storage Slots including one cutting-edge PCIe 5.0 x4 slot and three PCIe 4.0 x4 slots to deliver phenomenal speeds for next-generation NVMe SSDs.
-
Smart Performance Features: Ultra Turbo Mode providing effortless, multi-tiered performance boosts (ranging from default boosts to extreme profiles) to instantly elevate gaming and benchmarking frame rates.
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | Z890 D PLUS |
| Barcode | 4719331880644 |
| CPU Socket |
1851
|
| Chipset |
Intel Z890
|
| CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
9466(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 5.0 x16 slot
|
| PCI Express x4 |
2
|
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|

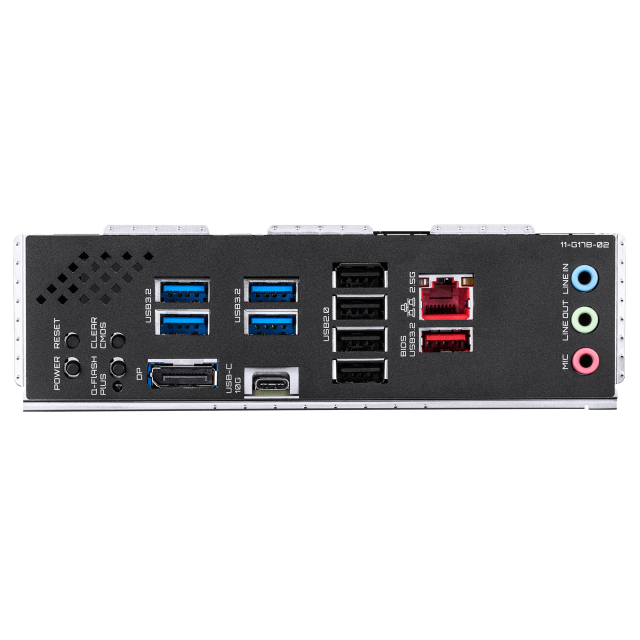

| Connectors |
1 x Display Port
1 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
1 x Q-Flash Plus button
|
| USB Ports |
4 x USB 3.2 Gen 1
1 x USB 3.1 Gen 2
4 x USB 2.0
USB 3.2 Gen 2 Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 1.224 kg |
