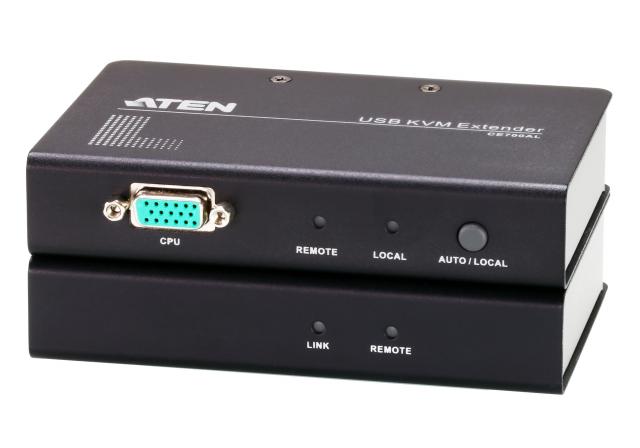

USB VGA Cat 5 KVM Extender (1280 x 1024@150m), CE700A

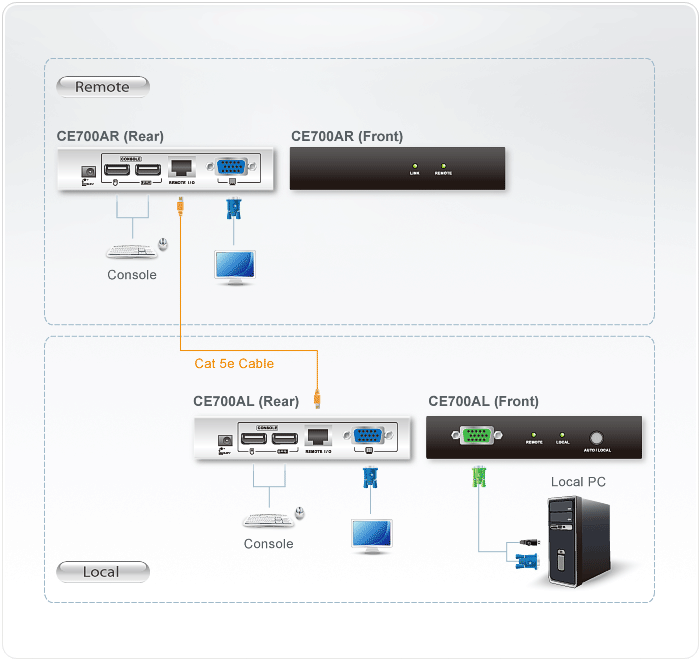

- Cat 5e cable connects the Local and Remote Units - up to 150m apart
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC)
- USB Keyboard and USB Mouse Ports
- USB overcurrent detection and prevention
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Automatic gain control - adjusts signal strength to compensate for distance
- High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
- Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
- Rack mountableEasy to install - no software required - connecting cables to the devices is all it takes
- Multiplatform support - Windows, Linux

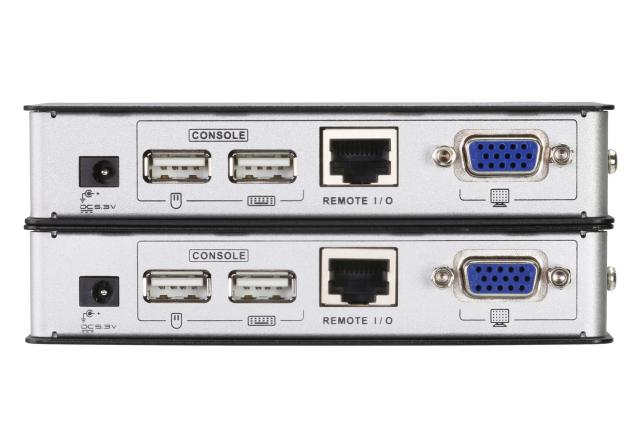

Console Connectors:
    Keyboard:   1x USB Type A Female(Local and Remote Units)
    Monitor:      1x HDB-15 Female (Local and Remote units)
    Mouse:       1x USB Type A Female(Local and Remote Units)
KVM Side Connections:  Keyboard, Video, Mouse:   1x SPHD-15 Female (Local Unit)
Unit to Unit Connectors:   1x RJ-45 Female (Local and Remote Units)
Power:   1x DC Jack
