Motherboard ASUS PRIME B840-PLUS WIFI DDR5, AM5
Ref. number: ASUS-MB-PRIME-B840-PL-WF
limited availability (up to 3)
View availability
София-ул.Марин Русев 6А
Motherboard ASUS PRIME B840-PLUS WIFI DDR5, AM5
limited availability (up to 3)
View availability
София-ул.Марин Русев 6А
Ref. number: ASUS-MB-PRIME-B840-PL-WF
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy

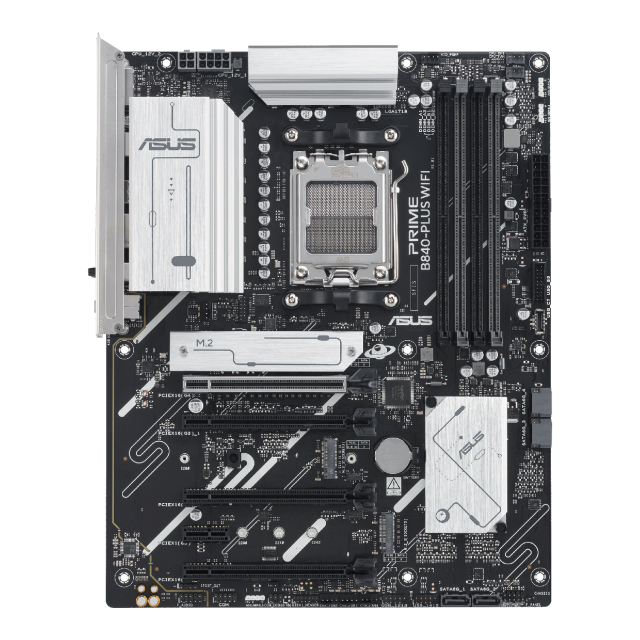

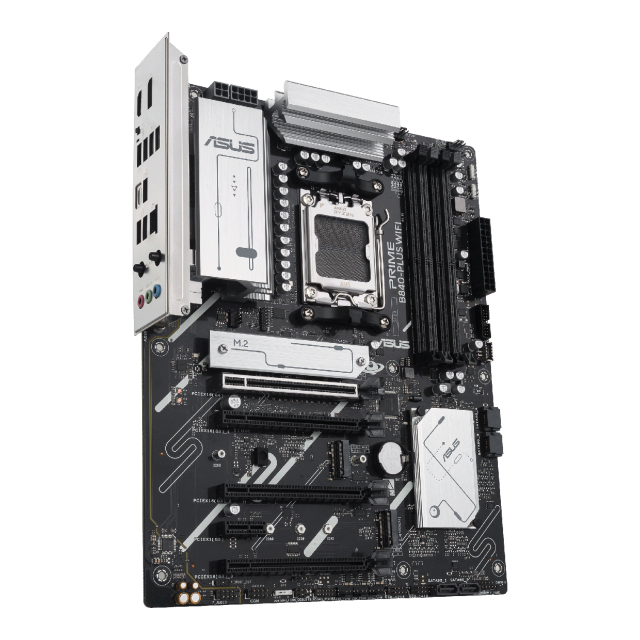

B840-PLUS WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1IZ0-M0EAY0 |
| Barcode | 4711387797273 |
| CPU Socket |
AM5
|
| Chipset |
AMD B840
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
7600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports up to 24-Bit/192 kHz playback
Premium audio capacitors
|
| Integrated LAN |
ASUS LANGuard
1 x Realtek 2.5Gb Ethernet port
|

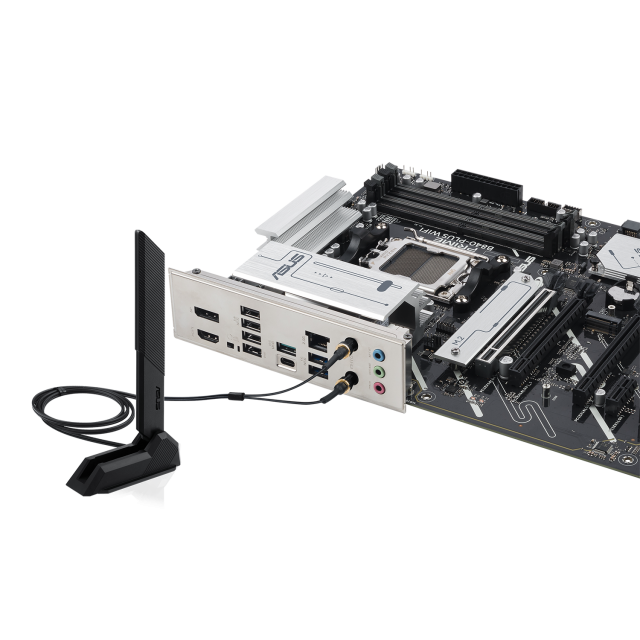

| Integrated Wi-Fi |
802.11ax Wi-Fi 6E
Bluetooth 5.3
|
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 |
2
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
|

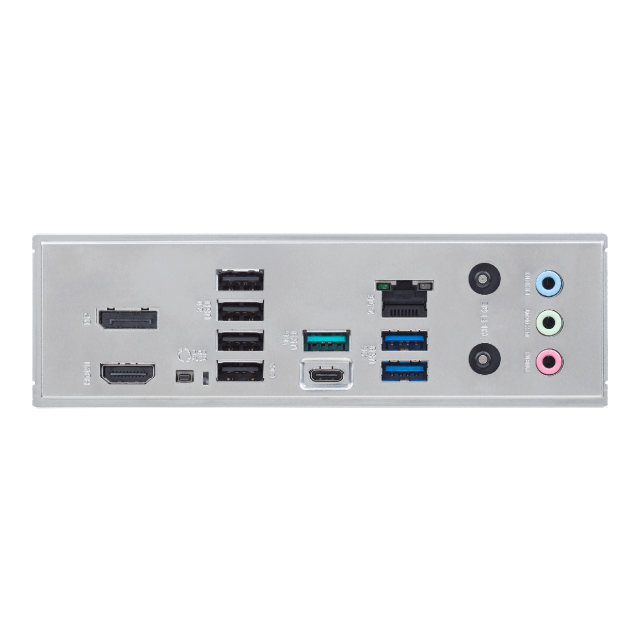

| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
1 x Wi-Fi Module
|
| USB Ports |
4 x USB 2.0
2 x USB 5Gbps ports Type-A
1 x USB 10Gbps port Type-A
1 x USB 10Gbps ports Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 0.404 kg |
