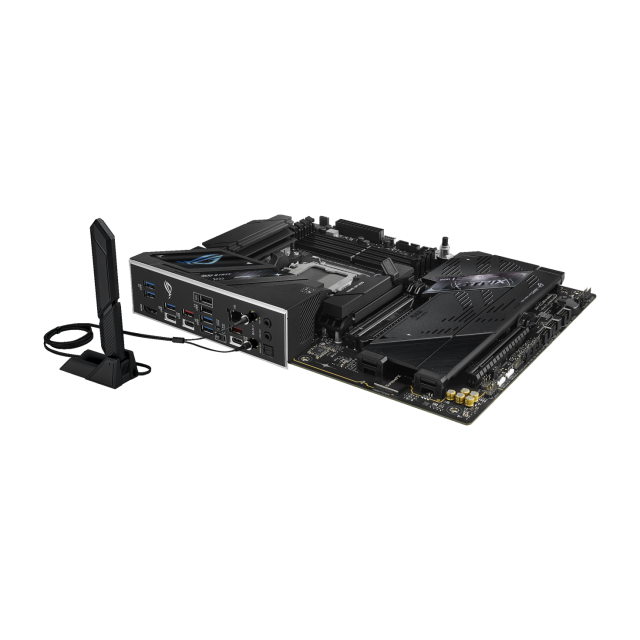

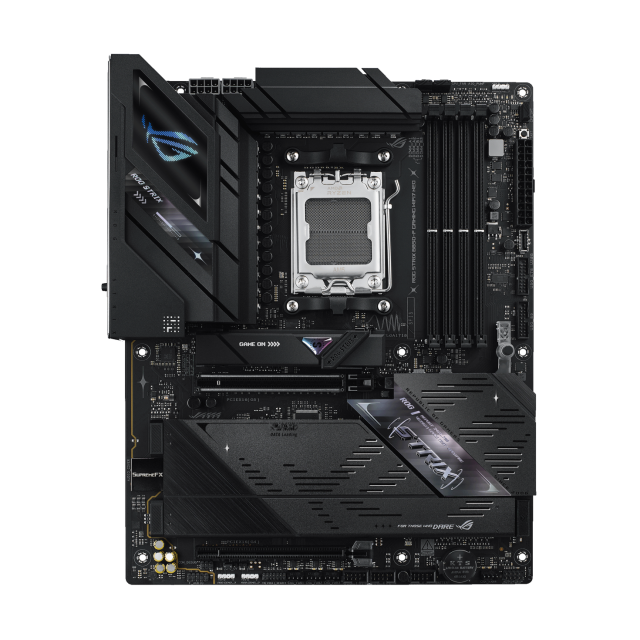

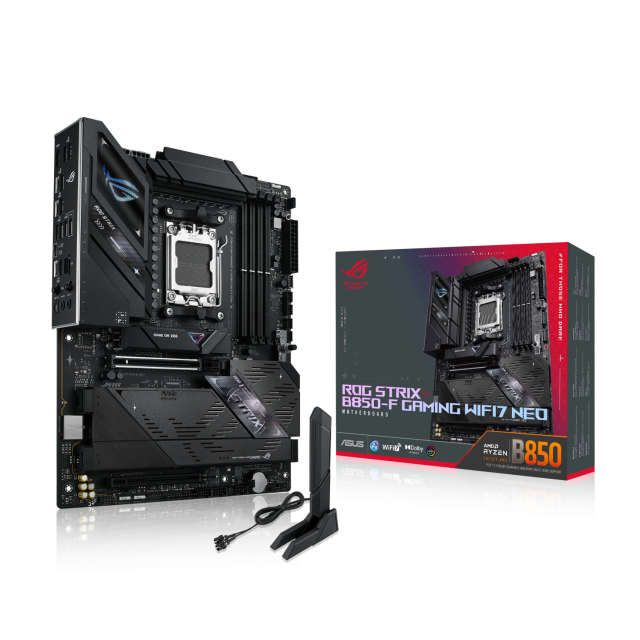

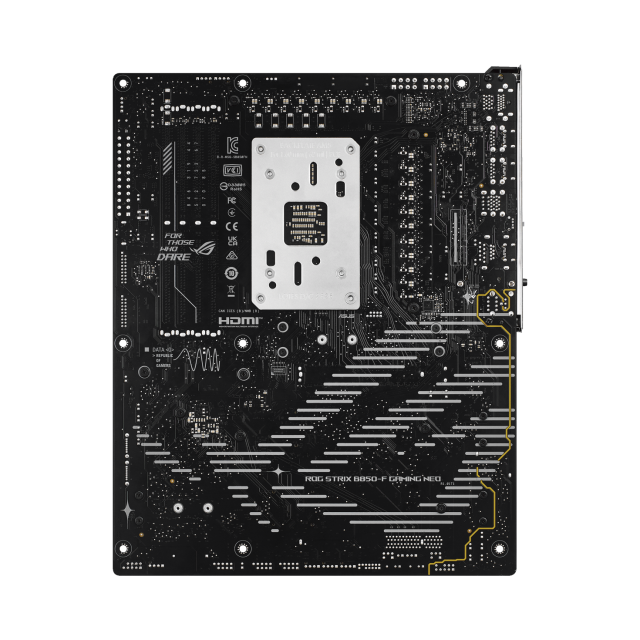

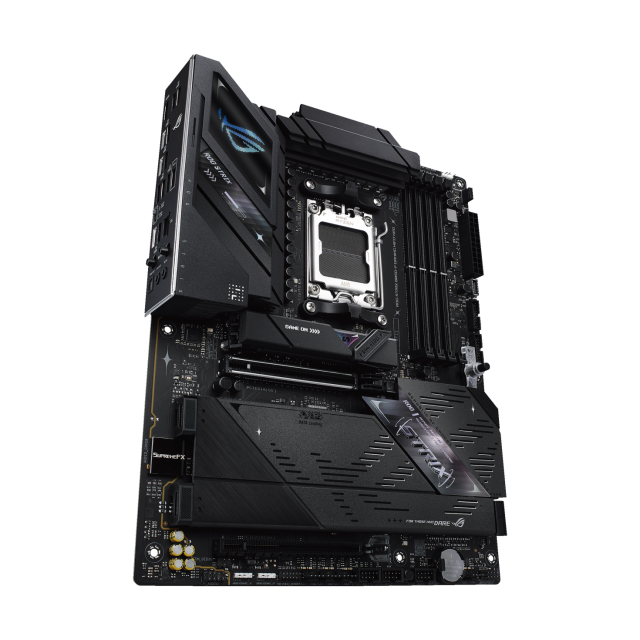

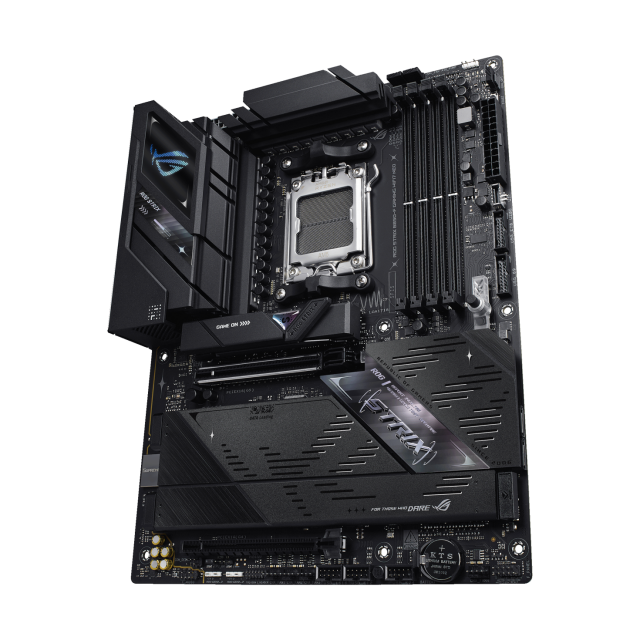

Motherboard ASUS ROG STRIX B850-F GAMING WIFI 7 NEO socket AM5
Ref. number: ASUS-MB-STRIX-B850-F-NEO
available
View availability
Шереметя
Motherboard ASUS ROG STRIX B850-F GAMING WIFI 7 NEO socket AM5
available
View availability
Шереметя
Ref. number: ASUS-MB-STRIX-B850-F-NEO
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
The ASUS ROG Strix B850-F Gaming WiFi7 Neo is a high-performance, feature-packed motherboard engineered to unleash the full potential of AMD Ryzen 9000, 8000, and 7000 series processors. Combining a robust power design, cutting-edge AI enhancements, and next-generation connectivity like Wi-Fi 7 and PCIe 5.0, it delivers exceptional speed, stability, and an immersive gaming experience for enthusiasts and builders alike.
-
Robust Power Solution: Features a 16+2+2 power stage design rated for up to 80A per stage with dual ProCool power connectors and high-end alloy chokes to ensure rock-solid stability under intense workloads.
-
Next-Gen Connectivity: Equipped with lightning-fast Wi-Fi 7 support, featuring 160 MHz channels and 4096 QAM alongside a high-speed Realtek 5Gb Ethernet port for lag-free online gaming and networking.
-
PCIe 5.0 and Advanced Storage: Fully embraces the PCIe 5.0 standard with an armored SafeSlot for graphics cards and multiple onboard M.2 slots (including PCIe 5.0 support) for ultra-fast data transfer speeds.
-
High-Speed DDR5 Memory: Supports up to 256GB of DDR5 RAM with overclocking speeds reaching 9000+ MT/s, enhanced by ASUS Enhanced Memory Profile (AEMP) for optimized stability.
-
AI-Powered Enhancements: Incorporates smart technologies like AI Cache Boost and AI Cooling II to intelligently optimize system performance, thermal efficiency, and one-click fan tuning.
-
Immersive Gaming Audio: Utilizes the ROG SupremeFX ALC4080 codec paired with a Savitech SV3H712 amplifier, high-end capacitors, and Dolby Atmos support to deliver crystal-clear, studio-grade spatial sound.
-
User-Friendly DIY Design: Features a spacious 64MB BIOS chip, pre-installed Wi-Fi driver integration for seamless Windows installation, and the intuitive BIOS Q-Dashboard to make setup and hardware configuration effortless.
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1NX0-M0EAY0 |
| Barcode | 4711636434904 |
| CPU Socket |
AM5
|
| Chipset |
AMD B850
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
9066(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Savitech SV3H712 AMP
Premium audio capacitors
Supports up to 32-Bit/384 kHz playback
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
|
| Integrated LAN |
ASUS LAN Guard
1 x Realtek 5Gb Ethernet
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
2 x PCIe 4.0 x16
1 x PCIe 5.0 x16 slot
|
| PCI Express x4 | |
| PCI-E x1 | |
| PCI-E slots | |
| Interface Serial ATA |
2 x SATA 6.0 Gb/s
|
| M2 socket |
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)
M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|

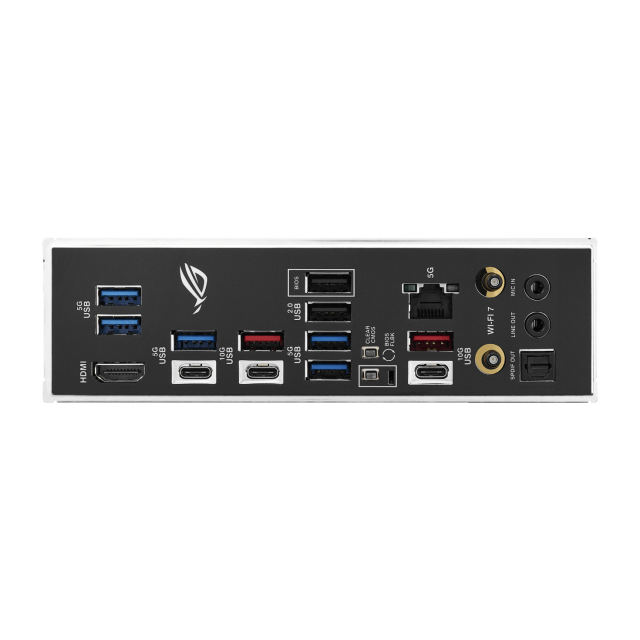

| Connectors |
1 x HDMI port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x BIOS Flashback Button
1 x Clear CMOS button
1 x Wi-Fi Module
|
| USB Ports |
2 x USB 2.0
4 x USB 5Gbps ports Type-A
2 x USB 10Gbps ports Type-A
2 x USB 10Gbps ports Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other | |
| Weight | 0.604 kg |
