Motherboard ASUS ROG STRIX X870-F GAMING WIFI AM5 DDR5
Ref. number: ASUS-MB-STRIX-X870-F-WF
not available
View availability
Няма наличност
Motherboard ASUS ROG STRIX X870-F GAMING WIFI AM5 DDR5
not available
View availability
Няма наличност
Ref. number: ASUS-MB-STRIX-X870-F-WF
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
The ASUS ROG STRIX X870-F GAMING WIFI is a high-performance gaming motherboard designed for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors. Here are some of its standout features:
- Powerful Design: It boasts a 16+2+2 power stage configuration, ensuring robust performance for demanding tasks.
- Advanced Connectivity: Equipped with WiFi 7, dual USB4 Type-C ports, and PCIe 5.0 support, it offers cutting-edge connectivity options.
- Memory and Storage: Supports DDR5 memory (up to 256GB) and features multiple M.2 slots for high-speed storage.
- AI Features: Includes AI Overclocking, AI Cooling II, and AI Networking II for optimized performance and user-friendly customization.
- DIY-Friendly: Designed with features like PCIe Slot Q-Release and pre-mounted I/O shields for easy assembly.
- Gaming Immersion: Comes with Aura Sync RGB lighting and high-quality audio for an enhanced gaming experience.
This motherboard is tailored for gamers and PC enthusiasts who demand top-tier performance and advanced features.
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1IV0-M0EAY0 |
| Barcode | 4711387732045 |
| CPU Socket |
AM5
|
| Chipset |
AMD X870
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8000(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback
|
| Integrated LAN |
ASUS LAN Guard
1 x Realtek 2.5Gb Ethernet port
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 5.0 x16 slot (supports x16 mode)
2 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
2 x SATA 6.0 Gb/s
|
| M2 socket |
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
|

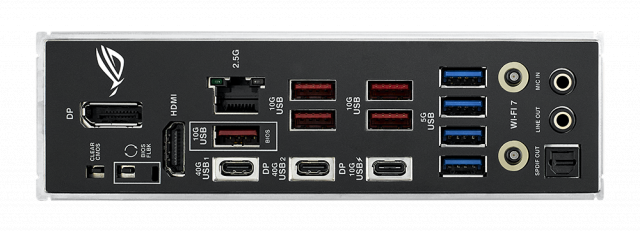

| Connectors |
1 x HDMI port
1 x RJ-45
5 x Audio jacks
1 x BIOS Flashback Button
1 x Wi-Fi Module
|
| USB Ports |
4 x USB 5Gbps ports Type-A
5 x USB 10Gbps ports Type-A
2 x USB4 40Gbps ports Type-C
1 x USB 10Gbps ports Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 1.240 kg |
